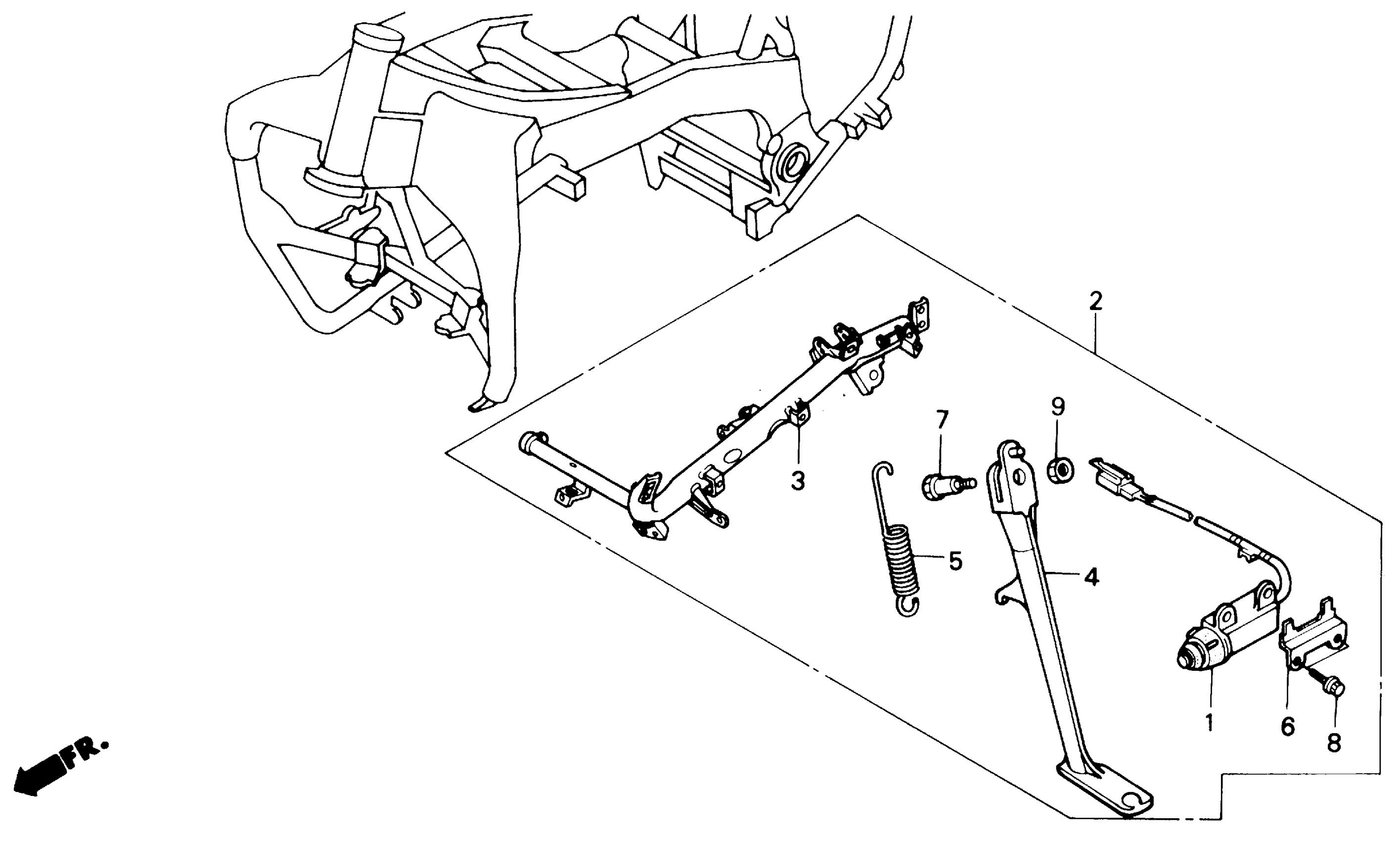

Honda GL1500A (90) GOLD WING, USA, VIN# 1HFSC220-LA200001 TO 1HFSC220-LA203608 SUB FRAME SET 90 Diagram

SWITCH ASSY., SIDE STAND (NOT AVAILABLE)

35710-MN5-003

Unavailable

SUB-FRAME SET *NH1* (BLACK)

50011-MT8-000ZA

Unavailable

SUB-FRAME *NH1* (BLACK) (NA USE ALT:50150-MN5-000ZA)

50150-MN5-000

Unavailable

BAR, SIDE STAND This part replaces 50532-MN5-000.

50532-MT8-710

Unavailable

SPRING, SIDE STAND

50541-MB0-000

$11.75

STAY, SIDE STAND SWITCH COVER

50546-MN5-000

Unavailable

SCREW, SIDE STAND (NOT AVAILABLE)

90108-MG9-680

Unavailable

BOLT, FLANGE (6X14) This part replaces 90131-MN5-000.

90105-MCE-750

$1.49

NUT, SIDE STAND

90203-MJ4-000

Unavailable
