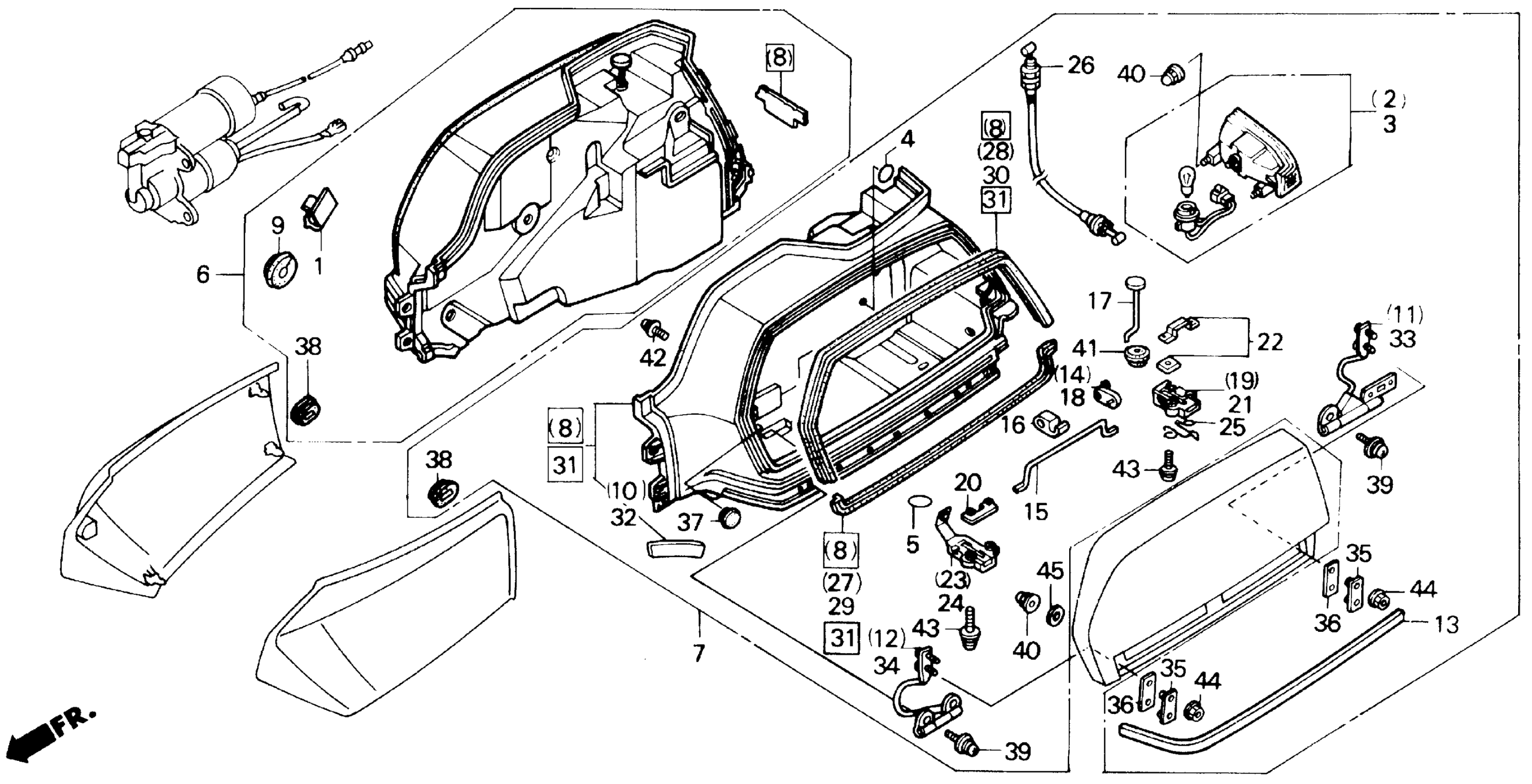

Honda GL1500A (90) GOLD WING, USA, VIN# 1HFSC220-LA200001 TO 1HFSC220-LA203608 SADDLEBAG BODY SET 90 Diagram

#

Description
Price

1

CLAMP, CABLE (A)

32911-MG9-950

$1.90

2

TAIL/STOP LIGHT ASSY., R. (12V 32/2CP)

33500-MAM-A82

Unavailable

2

TAIL/STOP LIGHT ASSY., R. (12V 32/2CP) This part replaces 33500-MN5-003.

33500-MAM-A82

Unavailable

3

TAILLIGHT ASSY., L. (12V 32/2CP)

33550-MAM-A82

$87.75

3

TAILLIGHT ASSY., L. (12V 32/2CP) This part replaces 33550-MN5-003.

33550-MAM-A82

$87.75

4

SEAL, DOOR HOLE (30MM) (CIRCLE)(BLACK)

75826-605-300

$3.35

4

SEAL, DOOR HOLE (30MM) (BLACK)

91619-SE0-000

$3.35

5

SEAL, INSIDE PANEL (15MM)

75826-634-300

$4.21

6

SADDLEBAG SET, R. *R114CU* (CANDY WINE BERRY RED-U) (N/A: SEE COMPONENTS) SADDLEBAG SET, R. *PB224M*

81010-MT8-000ZA

Unavailable

6

SADDLEBAG SET, R. *PB224M* (CARMEL BLUE) (N/A: SEE COMPONENTS)

81010-MT8-000ZB

Unavailable

7

SADDLEBAG SET, L. *R114CU* (CANDY WINE BERRY RED-U) (N/A: SEE COMPONENTS) SADDLEBAG SET, L. *PB224M*

81011-MT8-000ZA

Unavailable

7

SADDLEBAG SET, L. *PB224M* (CARMEL BLUE) (N/A: SEE COMPONENTS)

81011-MT8-000ZB

Unavailable

8

SADDLEBAG, R. *R114CU* (CANDY WINE BERRY RED-U) SADDLEBAG, R. *PB224M*

81210-MT8-020ZA

Unavailable

8

SADDLEBAG, R. *PB224M* (CARMEL BLUE)

81210-MT8-020ZB

Unavailable

9

GROMMET, SADDLE HOLE

81213-MN5-000

Unavailable

10

TAPE, R. SADDLEBAG

81215-MN5-300

Unavailable

11

HINGE, R. RR. SADDLEBAG

81230-MN5-010

$151.90

12

HINGE, R. FR. SADDLEBAG

81235-MN5-010

$95.90

13

MOLDING, SADDLEBAG

81240-MN5-000

Unavailable

14

PLATE, R. CAM EMERGENCY ROD (MITSUI) This part replaces 81309-MN5-003.

81309-MZ3-003

Unavailable

14

PLATE, R. CAM EMERGENCY ROD (MITSUI)

81309-MZ3-003

Unavailable

15

ROD, SADDLEBAG OPENER (MITSUI)

81316-MN5-003

Unavailable

16

SNAP, OPENER ROD (MITSUI)

81317-MN5-003

$2.43

17

ROD, EMERGENCY PUSH

81318-MN5-003

Unavailable

18

PLATE, L. CAM EMERGENCY ROD (MITSUI) This part replaces 81319-MN5-003.

81319-MZ3-003

Unavailable

18

PLATE, L. CAM EMERGENCY ROD (MITSUI)

81319-MZ3-003

Unavailable

19

CATCH, R. RR. SADDLEBAG

81320-MT8-003

Unavailable

20

PLATE A, SADDLEBAG CATCH SETTING

81321-MN5-000

Unavailable

21

CATCH, L. RR. SADDLEBAG

81322-MT8-003

$37.28

22

PLATE B, SADDLEBAG CATCH SET

81323-MN5-010

Unavailable

23

CATCH, R. FR. SADDLEBAG

81331-MT8-003

Unavailable

24

CATCH, L. FR. SADDLEBAG

81332-MT8-003

$41.43

25

SPRING, SADDLEBAG LID STOPPER

81333-MN5-000

Unavailable

26

CABLE A, SADDLEBAG OPENER

81345-MN5-000

Unavailable

27

RUBBER, R. SADDLEBAG SEAL (A)

81352-MT8-010

$30.75

28

RUBBER, R. SADDLEBAG SEAL (D)

81357-MT8-010

$30.07

29

RUBBER, L. SADDLEBAG SEAL (A)

81382-MT8-010

$27.57

30

RUBBER, L. SADDLEBAG SEAL (D)

81387-MT8-010

$30.07

31

SADDLEBAG, L. *R114CU* (CANDY WINE BERRY RED-U) SADDLEBAG, L. *PB224M*

81410-MT8-020ZA

$363.69

31

SADDLEBAG, L. *PB224M* (CARMEL BLUE)

81410-MT8-020ZB

Unavailable

32

TAPE, L. SADDLEBAG

81415-MN5-300

$4.02

33

HINGE, L. RR. SADDLEBAG

81430-MN5-010

$131.27

34

HINGE, L. FR. SADDLEBAG

81435-MN5-010

$102.13

35

WASHER, HINGE SETTING

81438-MN5-000

$8.98

36

RUBBER, HINGE SEAL (UPPER)

81439-MN5-000

$5.30

37

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.45

38

GROMMET, SIDE COVER

83551-MA6-000

$3.35

39

SCREW, HANDLE COVER SETTING

90103-GB6-930

$3.44

40

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

41

GROMMET

90801-MN5-010

$3.99

42

SCREW-WASHER (5X12)

93891-05012-00

$1.49

43

SCREW-WASHER (5X25)

93893-05025-07

$1.49

44

NUT, FLANGE (5MM)

94050-05080

$1.49

45

WASHER, PLAIN (5MM)

94103-05700

$1.49
