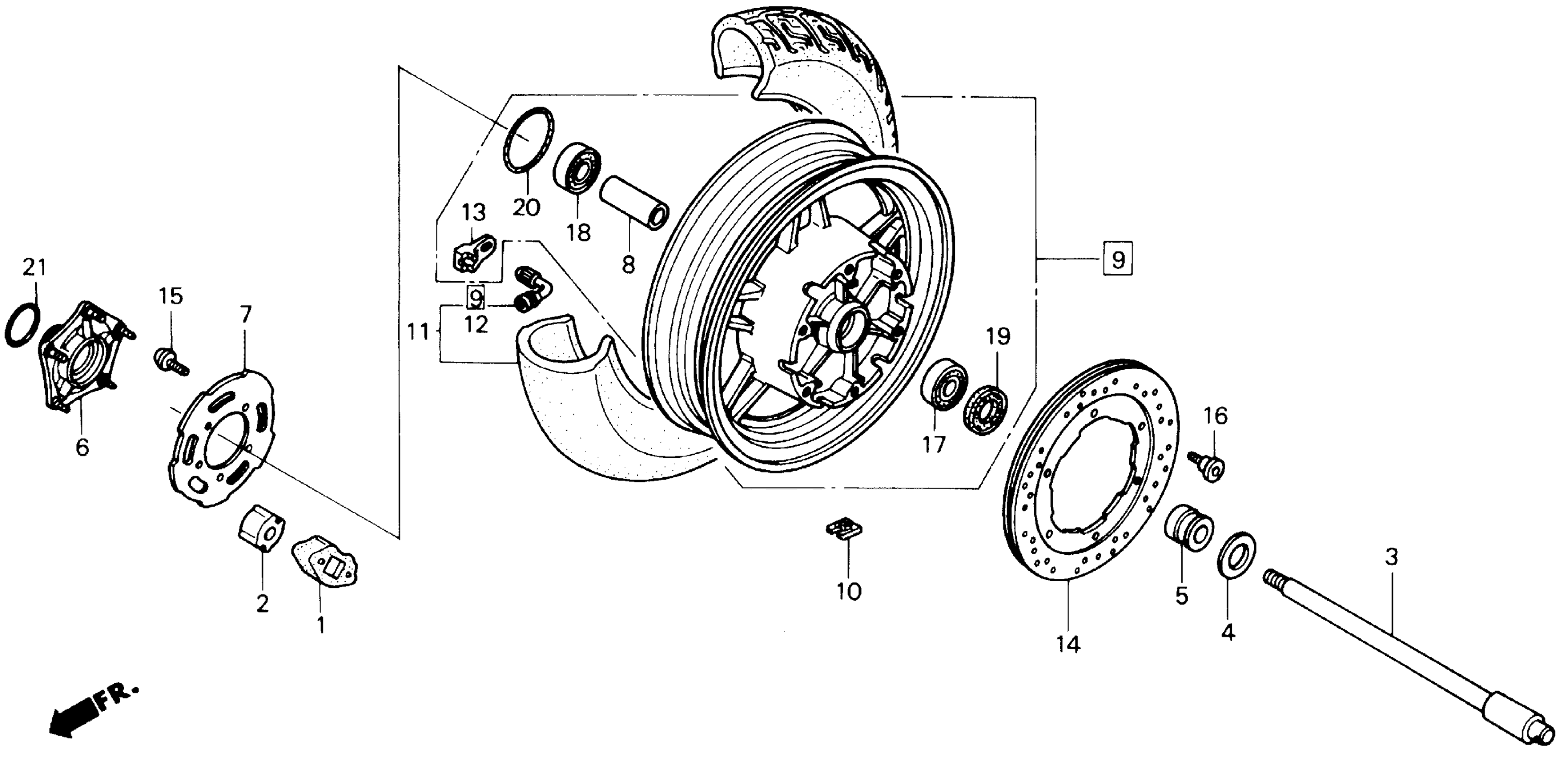

Honda GL1500A (90) GOLD WING, USA, VIN# 1HFSC220-LA200001 TO 1HFSC220-LA203608 REAR WHEEL 90-91 Diagram

#

Description
Price

1

DAMPER, RR. WHEEL

41241-MT8-003

$27.02

2

PIECE, DAMPER WHEEL

41242-MR5-000

$17.49

3

AXLE, RR. WHEEL

42301-MN5-000

Unavailable

4

SPACER, RR. BRAKE SIDE

42312-463-000

$13.39

5

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

6

FLANGE SET, FINAL DRIVEN This part replaces 42614-MT8-000.

42630-MT8-305

$309.64

6

FLANGE SET, FINAL DRIVEN This part replaces 42614-MT8-010.

42630-MT8-305

$309.64

6

FLANGE SET, FINAL DRIVEN

42630-MT8-305

$309.64

7

HOLDER, DAMPER

42617-MT8-000

$42.97

8

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MN5-000.

42620-MW5-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE

42620-MW5-000

Unavailable

9

WHEEL SET, RR.

42650-MT8-305

Unavailable

10

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

10

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

10

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

10

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

10

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

10

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

11

TIRE, RR. (160/80-16) (M/C 75H) (DUNLOP) This part replaces 42710-MN5-005.

42711-MN5-025

Unavailable

11

TIRE, RR. (160/80-16) (M/C 75H) (DUNLOP) This part replaces 42711-MN5-005.

42711-MN5-025

Unavailable

12

VALVE, RIM (DUNLOP)

42753-MN5-004

$16.38

13

HOLDER, RIM VALVE

42754-MN5-000

$5.12

14

DISK, RR. BRAKE

43251-MT8-000

$494.08

15

BOLT, DISK (6X17)

90105-KN5-000

$3.89

16

BOLT, FR. DISK (8X24)

90105-KR3-000

$6.07

17

BEARING, RADIAL BALL (6204UU) (NSK)

91052-MM5-003

$33.97

18

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$74.94

19

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

19

DUST SEAL (30X47X8) (NOK)

91253-443-762

$12.13

20

O-RING (61X2)

91302-MA6-003

$5.17

21

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76

21

O-RING (50.5X3.5) (ARAI) This part replaces 91358-MG9-004.

91358-MG9-003

$3.76
