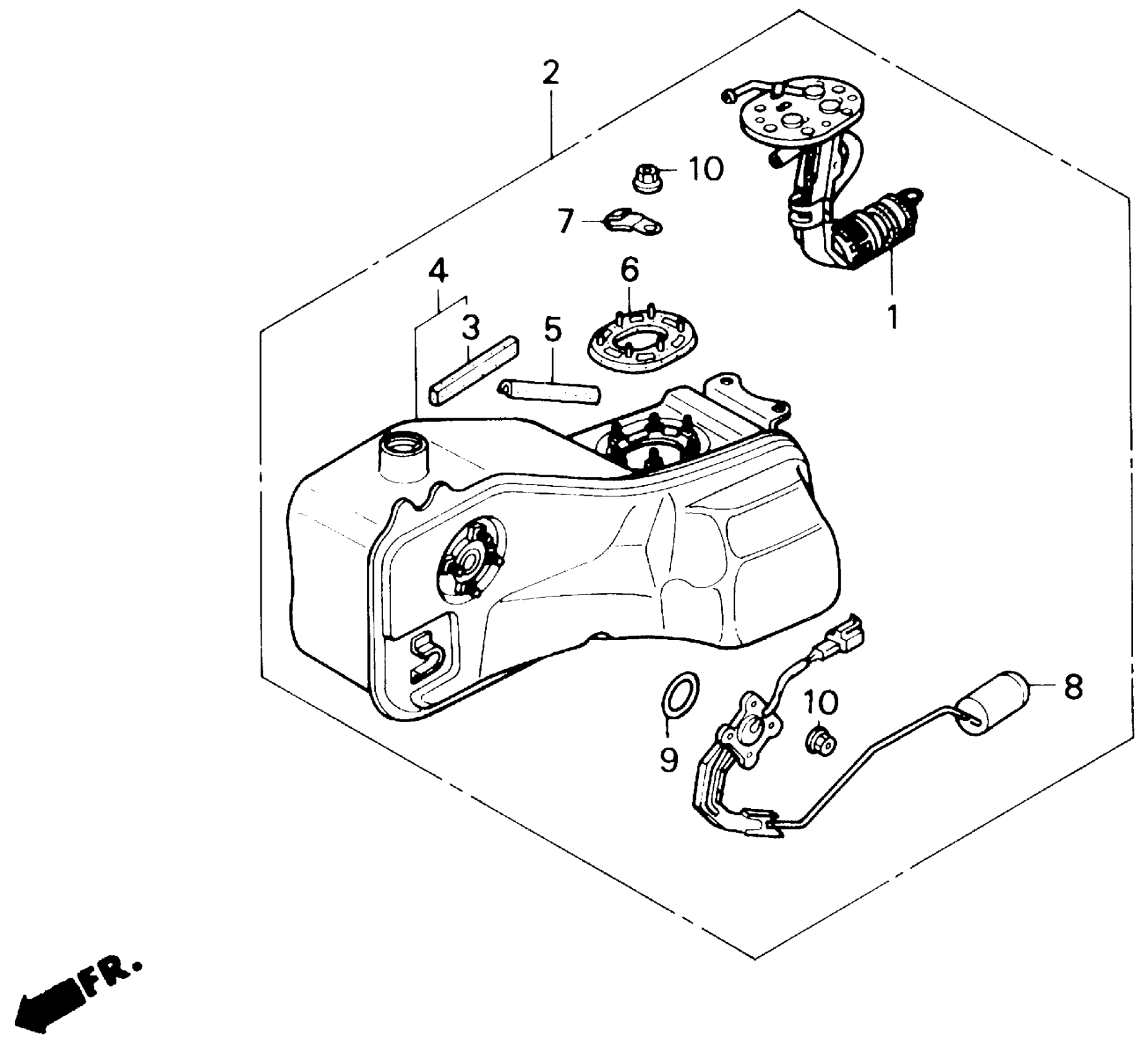

Honda GL1500A (90) GOLD WING, USA, VIN# 1HFSC220-LA200001 TO 1HFSC220-LA203608 FUEL TANK SET 90 Diagram

PUMP ASSY., FUEL

16700-MAF-000

$504.18

PUMP ASSY., FUEL This part replaces 16700-MT2-000.

16700-MAF-000

$504.18

PUMP ASSY., FUEL This part replaces 16700-MT2-010.

16700-MAF-000

$504.18

TANK SET, FUEL

17010-MT8-000

Unavailable

CUSHION, BATTERY TRAY (A)

17509-MN5-000

$4.48

TANK, FUEL This part replaces 17510-MT8-000.

17510-MZ3-000

$1,031.69

TANK, FUEL

17510-MZ3-000

$1,031.69

TRIM, FUEL TANK

17516-MK7-000

$9.94

GASKET, BASE

17574-MN5-000

$10.10

CLAMP, WIRE

32111-426-000

Unavailable

CLAMP, WIRE This part replaces 32111-460-780.

32111-426-000

Unavailable

FUEL UNIT

37800-MT8-008

Unavailable

O-RING (39.5X5)

91305-MC7-000

$3.31

NUT, FLANGE (6MM)

94050-06080

$1.49
