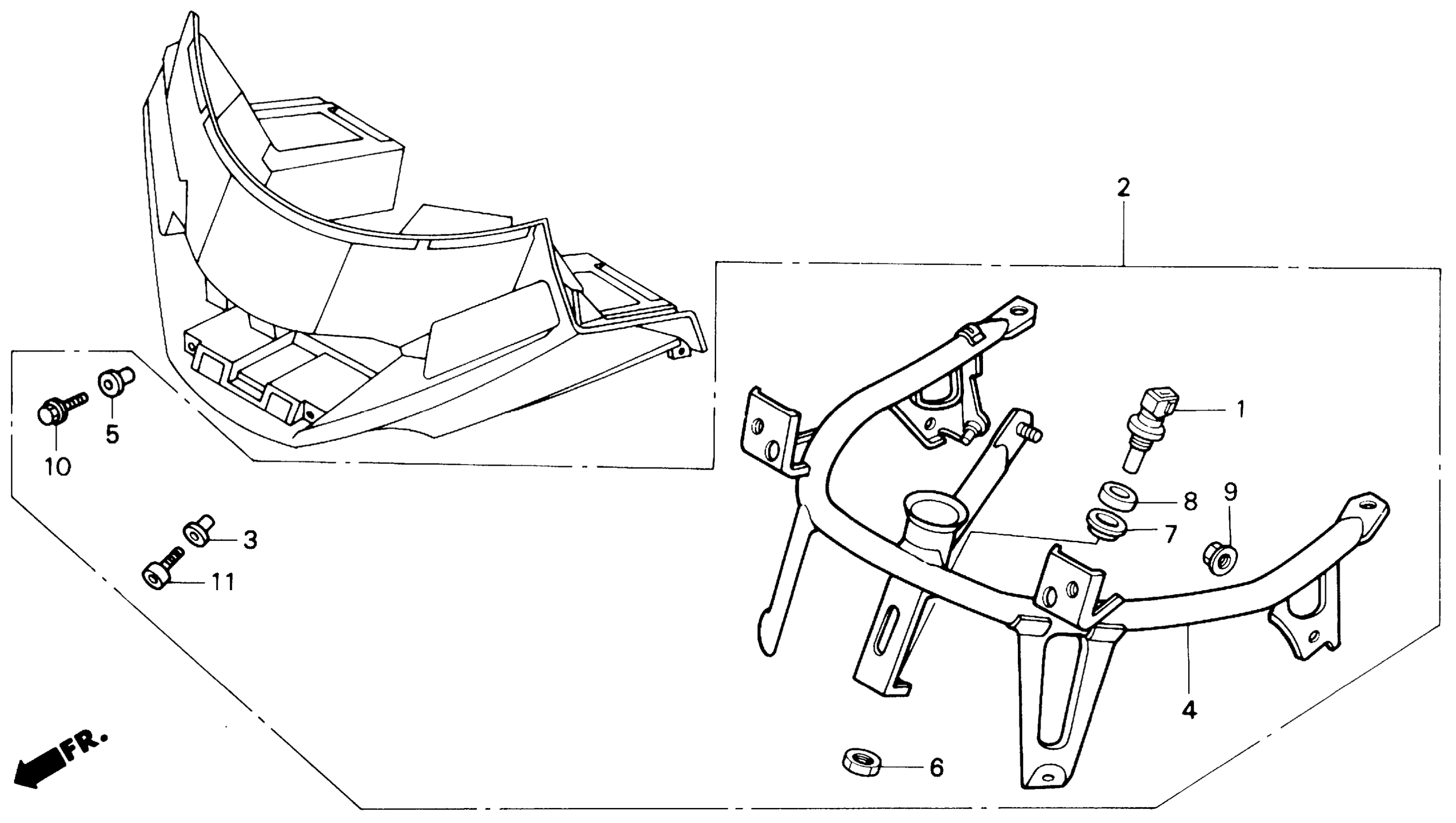

Honda GL1500A (90) GOLD WING, USA, VIN# 1HFSC220-LA200001 TO 1HFSC220-LA203608 COWL STAY SET 90 Diagram

ENGINE COOLANT TEMPERATURE SENSOR

36151-MT8-003

Unavailable

STAY SET, COWL

64010-MT8-000

Unavailable

COLLAR, FAIRING SETTING

64209-MN5-000

$2.97

STAY, COWL

64510-MN5-000

Unavailable

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.71

NUT, AIR TEMPERATURE SENSOR

90308-MG9-950

Unavailable

INSULATOR, SENSOR

91501-MT8-000

Unavailable

COLLAR, SENSOR

91502-MT8-000

Unavailable

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, SOCKET (6X18)

96600-06018-07

$1.84
