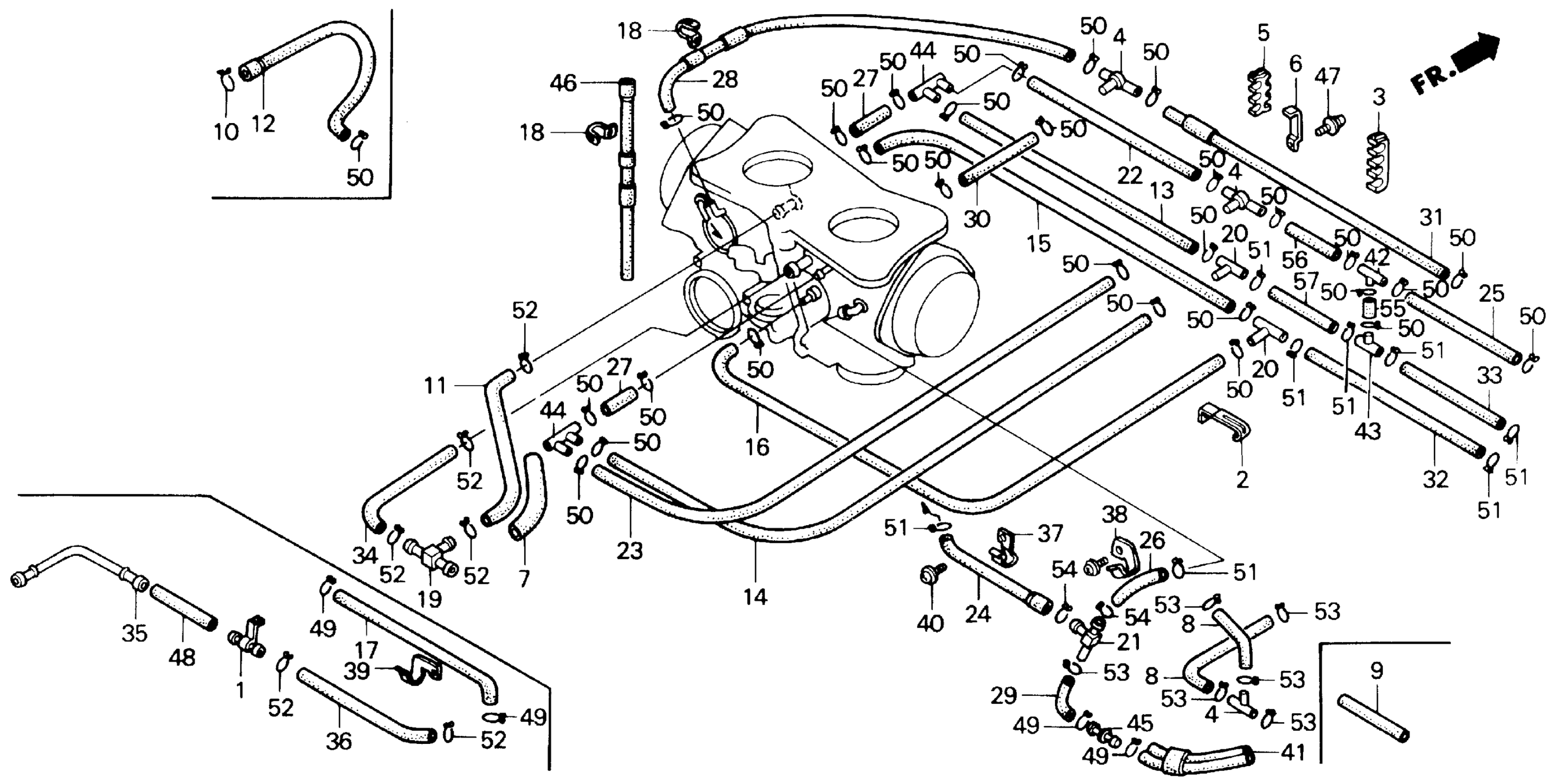

Honda GL1500A (89) GOLD WING, USA, VIN# 1HFSC220-KA100001 TO 1HFSC220-KA110411 TUBING (1) 89 Diagram

#

Description
Price

2

BINDER (NOT AVAILABLE)

16179-MF2-631

Unavailable

3

BINDER

16179-MN5-010

Unavailable

4

T-JOINT

16180-195-731

$11.63

5

BINDER (NOT AVAILABLE)

16184-MN5-000

Unavailable

6

PLATE (NOT AVAILABLE)

16185-MN5-000

Unavailable

7

TUBE

16198-MN5-000

Unavailable

8

TUBE, AIR VENT This part replaces 16199-GG2-701.

16199-428-405

$2.88

8

TUBE, DRAIN

16199-428-405

$2.88

11

TUBE, FUEL

17180-MN5-000

$10.54

13

TUBE, PRIMARY AIR (A) (NOT AVAILABLE)

17182-MN5-000

Unavailable

14

TUBE, PRIMARY AIR (B) (NOT AVAILABLE)

17183-MN5-020

Unavailable

15

TUBE, PRIMARY AIR (C) (NOT AVAILABLE)

17184-MN5-010

Unavailable

16

TUBE, PRIMARY AIR (D) (NOT AVAILABLE)

17185-MN5-020

Unavailable

18

CLIP, PLATE

17191-MN5-740

Unavailable

19

T-JOINT

17193-MT2-000

$11.83

20

T-JOINT

17194-MN5-000

$11.13

21

T-JOINT

17194-MT2-000

Unavailable

22

TUBE (150MM) (NOT AVAILABLE)

17281-MN5-000

Unavailable

23

TUBE (225MM) (NOT AVAILABLE)

17282-MN5-020

Unavailable

24

TUBE

17282-MT2-000

Unavailable

25

TUBE (490MM) (NOT AVAILABLE)

17283-MN5-000

Unavailable

26

TUBE

17283-MT2-000

Unavailable

27

TUBE (NOT AVAILABLE)

17284-MT2-000

Unavailable

28

TUBE (360MM) (NOT AVAILABLE)

17285-MN5-020

Unavailable

29

TUBE

17285-MT2-010

Unavailable

30

TUBE (40MM) (NOT AVAILABLE)

17286-MN5-010

Unavailable

31

TUBE (550MM) (NOT AVAILABLE)

17287-MN5-010

Unavailable

32

TUBE, AIR PRIMARY (F)

17288-MN5-010

Unavailable

33

TUBE, AIR PRIMARY (E)

17289-MN5-000

$12.67

34

TUBE, FUEL

16143-KV0-405

$6.62

34

TUBE This part replaces 17290-MN5-000.

16143-KV0-405

$6.62

37

BINDER

17312-MT2-000

Unavailable

38

TUBE, DRAIN

17316-MT2-010

Unavailable

40

SCREW-WASHER

17315-MT2-000

Unavailable

41

TUBE, DRAIN This part replaces 17316-MT2-000.

17316-MT2-010

Unavailable

41

TUBE, DRAIN

17316-MT2-010

Unavailable

42

T-JOINT (NOT AVAILABLE)

17320-MT2-000

Unavailable

43

JET (NOT AVAILABLE)

17321-MT2-000

Unavailable

44

JET (NOT AVAILABLE)

17322-MT2-000

Unavailable

45

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$7.04

46

TUBE

17458-MT2-000

Unavailable

47

SCREW-WASHER (5X10)

93892-05010-00

$0.46

47

SCREW-WASHER (5X10) This part replaces 93892-05010-10.

93892-05010-00

$0.46

49

CLIP, TUBE (B7)

95002-02070

$1.59

50

CLIP, TUBE (B8)

95002-02080

$1.59

51

CLIP, TUBE (B10)

95002-02100

$1.72

52

CLIP, TUBE (B12)

95002-02120

Unavailable

53

CLIP, TUBE (B6.5)

95002-02650

$1.35

54

CLIP, TUBE (C11)

95002-70000

$1.49

55

BULK HOSE, VACUUM (4.5X1000) (4.5X30)

95005-45001-10M

$21.06

56

BULK HOSE, VACUUM (4.5X1000) (4.5X120)

95005-45001-10M

$21.06

57

BULK HOSE, VACUUM (5.5X8000) (5.5X90)

95005-55008-10M

Unavailable
