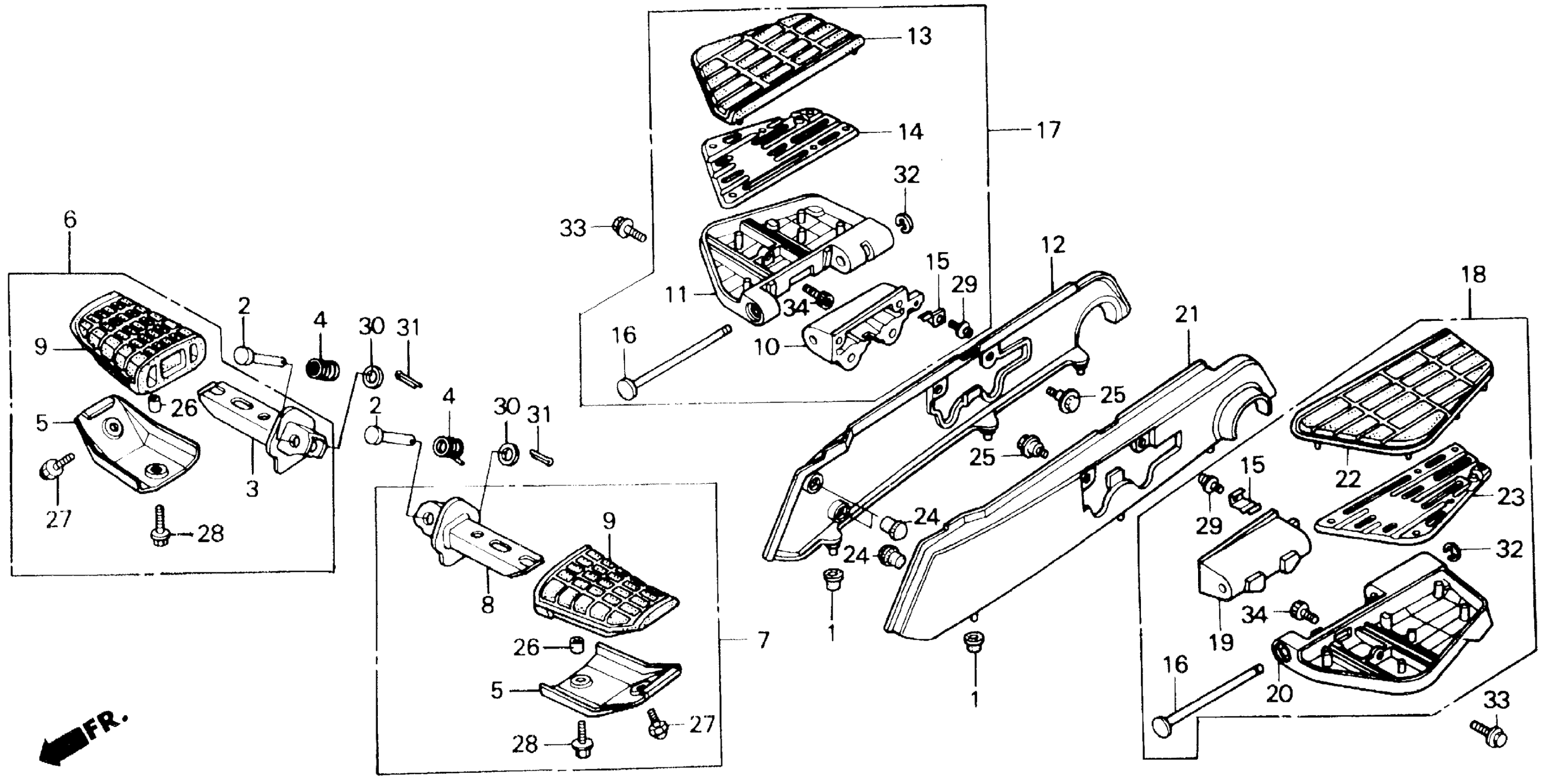

Honda GL1500A (89) GOLD WING, USA, VIN# 1HFSC220-KA100001 TO 1HFSC220-KA110411 STEP EXCEPT SE/I Diagram

#

Description
Price

1

RUBBER, RADIATOR MOUNTING

19113-MB1-870

$3.47

2

PIN, STEP PIVOT

50603-MN5-000

Unavailable

3

BAR, R. STEP

50612-MT2-000

$57.36

4

SPRING, STEP RETURN

50617-MB1-700

$5.80

5

COVER, STEP (LOWER)

50619-MN5-000

$25.90

6

STEP ASSY., R. MAIN (NOT AVAILABLE)

50630-MT2-000

Unavailable

7

STEP ASSY., L. MAIN (NOT AVAILABLE)

50640-MT2-000

Unavailable

8

BAR, L. STEP

50642-MT2-000

$57.36

9

RUBBER, MAIN STEP

50661-MN5-000

$20.38

10

HOLDER, R. PILLION STEP

50715-MN5-010

Unavailable

11

PLATE, R. PILLION STEP This part replaces 50716-MN5-010.

50716-MN5-505

Unavailable

11

PLATE, R. PILLION STEP

50716-MN5-505

Unavailable

12

COVER, R. PILLION STEP HOLDER

50717-MN5-000

Unavailable

13

RUBBER, R. PILLION STEP

50718-MN5-000

$24.48

14

PLATE, R. FOOT

50719-MN5-000

Unavailable

15

SPRING, PILLION STEP

50720-MN5-000

$5.03

16

PIN, PILLION STEP (NOT AVAILABLE)

50721-MN5-000

Unavailable

17

HOLDER ASSY., R. STEP This part replaces 50730-MN5-010.

50730-MT8-000

Unavailable

17

HOLDER ASSY., R. STEP

50730-MT8-000

Unavailable

18

HOLDER ASSY., L. STEP This part replaces 50740-MN5-010.

50740-MT8-000

Unavailable

18

HOLDER ASSY., L. STEP

50740-MT8-000

Unavailable

19

HOLDER, L. PILLION STEP

50815-MN5-010

Unavailable

20

PLATE, L. PILLION STEP This part replaces 50816-MN5-010.

50816-MN5-505

Unavailable

20

PLATE, L. PILLION STEP

50816-MN5-505

Unavailable

21

COVER, L. PILLION STEP HOLDER

50817-MN5-000

$8.75

22

RUBBER, L. PILLION STEP

50818-MN5-000

$27.82

23

PLATE, L. FOOT

50819-MN5-000

$21.21

24

CAP, RR. BUMPER

84103-443-611

$4.23

25

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

26

COLLAR, RR. SPLASH GUARD

90325-197-000

$3.41

27

BOLT, CAP (6X8)

92501-06008-0B

Unavailable

28

BOLT-WASHER (6X20)

93403-06020-00

$2.00

29

SCREW-WASHER (5X12)

93893-05012-08

$1.49

30

WASHER, PLAIN (8MM)

94102-08000

$1.49

31

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

31

PIN, COTTER (1.6X25)

94201-16250

$1.49

32

E-RING (7MM)

94540-07010

$2.30

33

BOLT, FLANGE (8X20) (NOT AVAILABLE)

90119-383-000

Unavailable

34

BOLT, SOCKET (6X16)

96600-06016-08

$1.74
