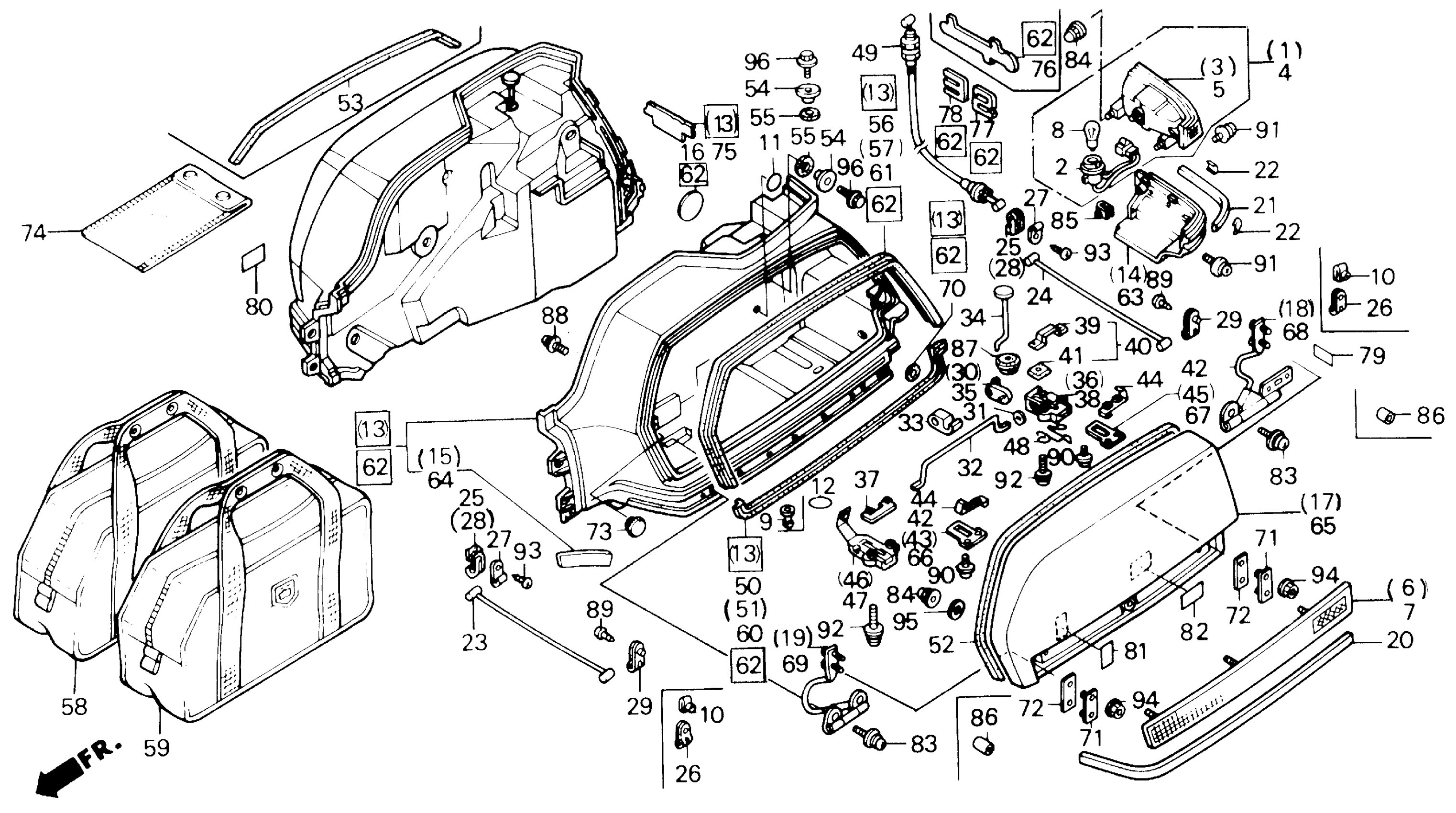

Honda GL1500A (89) GOLD WING, USA, VIN# 1HFSC220-KA100001 TO 1HFSC220-KA110411 SADDLEBAG Diagram

TAIL/STOP LIGHT ASSY., R. (12V 32/2CP)

33500-MAM-A82

Unavailable

TAIL/STOP LIGHT ASSY., R. (12V 32/2CP) This part replaces 33500-MN5-003.

33500-MAM-A82

Unavailable

SOCKET, TAILLIGHT

33503-MN5-003

$16.64

HOUSING, R. TAILLIGHT

33510-MAM-A82

$77.77

HOUSING, R. TAILLIGHT This part replaces 33510-MN5-003.

33510-MAM-A82

$77.77

TAILLIGHT ASSY., L. (12V 32/2CP)

33550-MAM-A82

$87.75

TAILLIGHT ASSY., L. (12V 32/2CP) This part replaces 33550-MN5-003.

33550-MAM-A82

$87.75

HOUSING, L. TAILLIGHT

33560-MAM-A82

Unavailable

HOUSING, L. TAILLIGHT This part replaces 33560-MN5-003.

33560-MAM-A82

Unavailable

REFLECTOR, R. SADDLEBAG REFLEX

33750-MAM-A62

$49.93

REFLECTOR, R. SADDLEBAG REFLEX

33750-MN5-003

$49.93

REFLECTOR, L. SADDLEBAG REFLEX

33755-MAM-A62

Unavailable

REFLECTOR, L. SADDLEBAG REFLEX This part replaces 33755-MN5-003.

33755-MAM-A62

Unavailable

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-SA5-671

$2.94

PLUG, HEAD PIPE | Use up to Frame SN KA106244

50049-046-000

$2.03

NUT, CLIP (4MM) | Use up to Frame SN KA106651

64521-MN5-000

$2.92

SEAL, DOOR HOLE (30MM) (CIRCLE)(BLACK)

75826-605-300

$3.35

SEAL, DOOR HOLE (30MM) (BLACK)

91619-SE0-000

$3.35

SEAL, INSIDE PANEL (15MM) | Use from Frame SN KA106245

75826-634-300

$4.21

SADDLEBAG, R. *YR149M* (MARTINI BEIGE METALLIC)

81210-MT2-000ZA

Unavailable

SADDLEBAG, R. *R114CU* (CANDY WINE BERRY RED-U)

81210-MT2-000ZB

Unavailable

SADDLEBAG, R. *B127M* (COMMODORE BLUE GREEN METALLIC) SADDLEBAG, R. *R114CU*

81210-MT2-000ZC

Unavailable

COVER, R. SADDLEBAG (LOWER) *YR149M* (MARTINI BEIGE METALLIC)

81214-MN5-000ZC

Unavailable

COVER, R. SADDLEBAG (LOWER) *B127M* (COMMODORE BLUE GREEN METALLIC)

81214-MN5-000ZE

Unavailable

COVER, R. SADDLEBAG (LOWER) *R114CU* (CANDY WINE BERRY RED-U)

81214-MN5-000ZD

$210.85

TAPE, R. SADDLEBAG

81215-MN5-300

Unavailable

LID, R. SADDLEBAG *YR149M* (MARTINI BEIGE METALLIC)

81220-MN5-000ZC

Unavailable

LID, R. SADDLEBAG *R114CU* (CANDY WINE BERRY RED-U) LID, R. SADDLEBAG *PB224M* This part replaces 81220-MN5-000ZD.

81220-MT8-000ZA

Unavailable

LID, R. SADDLEBAG *B127M* (COMMODORE BLUE GREEN METALLIC) This part replaces 81220-MN5-000ZE.

81220-MT8-000ZC

Unavailable

LID, R. SADDLEBAG *B127M* (COMMODORE BLUE GREEN METALLIC)

81220-MT8-000ZC

Unavailable

LID, R. SADDLEBAG *R114CU* (CANDY WINE BERRY RED-U) LID, R. SADDLEBAG *PB224M*

81220-MT8-000ZA

Unavailable

HINGE, R. RR. SADDLEBAG | Use up to Frame SN KA103603 This part replaces 81230-MN5-000.

81230-MN5-010

$151.90

HINGE, R. RR. SADDLEBAG

81230-MN5-010

$151.90

HINGE, R. FR. SADDLEBAG | Use up to Frame SN KA103603 This part replaces 81235-MN5-000.

81235-MN5-010

$95.90

HINGE, R. FR. SADDLEBAG

81235-MN5-010

$95.90

MOLDING, SADDLEBAG

81240-MN5-000

Unavailable

MOLDING, SADDLEBAG COVER (LOWER)

81242-MN5-000

$22.29

CLIP, MOLDING

81247-MN5-000

$7.95

STOPPER, FR. SADDLEBAG LID

81251-MN5-000

$2.05

STOPPER, RR. SADDLEBAG LID

81252-MN5-000

$1.92

STAY, L. LID STOPPER (A)

81253-MN5-000

Unavailable

STAY B, LID STOPPER | Use up to Frame SN KA106652

81254-MN5-000

$5.23

GUIDE, CABLE STOPPER

81255-MN5-000

$2.59

STAY, R. LID STOPPER (A)

81256-MN5-000

Unavailable

STAY C, LID STOPPER | Use from Frame SN KA106653

81257-MT2-000

Unavailable

PLATE, R. CAM EMERGENCY ROD (MITSUI) This part replaces 81309-MN5-003.

81309-MZ3-003

Unavailable

PLATE, R. CAM EMERGENCY ROD (MITSUI)

81309-MZ3-003

Unavailable

SPACER | Use up to Frame SN KA106652

81314-MN5-003

Unavailable

ROD, SADDLEBAG OPENER (MITSUI)

81316-MN5-003

Unavailable

SNAP, OPENER ROD (MITSUI)

81317-MN5-003

$2.43

ROD, EMERGENCY PUSH

81318-MN5-003

Unavailable

PLATE, L. CAM EMERGENCY ROD (MITSUI) This part replaces 81319-MN5-003.

81319-MZ3-003

Unavailable

PLATE, L. CAM EMERGENCY ROD (MITSUI)

81319-MZ3-003

Unavailable

CATCH, R. RR. SADDLEBAG This part replaces 81320-MN5-003.

81320-MT8-003

Unavailable

CATCH, R. RR. SADDLEBAG

81320-MT8-003

Unavailable

PLATE A, SADDLEBAG CATCH SETTING

81321-MN5-000

Unavailable

CATCH, L. RR. SADDLEBAG This part replaces 81322-MN5-003.

81322-MT8-003

$37.28

CATCH, L. RR. SADDLEBAG

81322-MT8-003

$37.28

PLATE B, SADDLEBAG CATCH SET

81323-MN5-010

Unavailable

GASKET, PLATE

81324-MN5-300

Unavailable

STRIKER, SADDLEBAG | Use up to Frame SN KA106423 This part replaces 81326-MN5-000.

81326-MN5-305

Unavailable

STRIKER, SADDLEBAG | Use up to Frame SN KA106423

81326-MN5-305

Unavailable

STRIKER, R. FR. SADDLEBAG | Use from Frame SN KA106424

81326-MN5-010

Unavailable

PLATE, STRIKER SETTING

81327-MN5-000

$3.67

STRIKER, R. RR. SADDLEBAG | Use from Frame SN KA106424

81328-MN5-000

$9.16

CATCH, R. FR. SADDLEBAG This part replaces 81331-MN5-003.

81331-MT8-003

Unavailable

CATCH, R. FR. SADDLEBAG

81331-MT8-003

Unavailable

CATCH, L. FR. SADDLEBAG This part replaces 81332-MN5-003.

81332-MT8-003

$41.43

CATCH, L. FR. SADDLEBAG

81332-MT8-003

$41.43

SPRING, SADDLEBAG LID STOPPER

81333-MN5-000

Unavailable

CABLE A, SADDLEBAG OPENER

81345-MN5-000

Unavailable

RUBBER, SADDLEBAG SEAL (A) (NOT AVAILABLE)

81352-MN5-000

Unavailable

RUBBER, SADDLEBAG SEAL (C) (NOT AVAILABLE) | Use up to Frame SN KA103603 This part replaces 81354-MN5-000.

81354-MN5-010

Unavailable

RUBBER, SADDLEBAG SEAL (C) (NOT AVAILABLE) | Use from Frame SN KA103604

81354-MN5-010

Unavailable

COLLAR, SADDLEBAG SETTING

81355-MN5-000

$6.60

RUBBER, BAG MOUNT

81356-MN5-000

$3.43

RUBBER, SADDLEBAG SEAL (D)

81357-MN5-000

Unavailable

RUBBER D, R. SADDLEBAG SEAL (NOT AVAILABLE) | (Optional).

81357-MT2-700

Unavailable

BAG, R. SADDLEBAG (INNER) (TYPE1) (BLUE) (NOT AVAILABLE)

81362-MN5-000ZA

Unavailable

BAG, R. SADDLEBAG (INNER) (TYPE2) (BROWN)

81362-MN5-000ZB

$71.51

BAG, L. SADDLEBAG (INNER) (TYPE1) (BLUE)

81364-MN5-000ZA

$124.07

BAG, L. SADDLEBAG (INNER) (TYPE2) (BROWN)

81364-MN5-000ZB

$71.51

RUBBER, L. SADDLEBAG SEAL (D) | (Optional).

81387-MT2-700

Unavailable

SADDLEBAG (LOWER) *YR149M* (MARTINI BEIGE METALLIC) This part replaces 81410-MN5-000ZC.

81410-MN5-010ZC

Unavailable

SADDLEBAG (LOWER) *YR149M* (MARTINI BEIGE METALLIC)

81410-MN5-010ZC

Unavailable

SADDLEBAG (LOWER) *R114CU* (CANDY WINE BERRY RED-U) This part replaces 81410-MN5-000ZD.

81410-MN5-010ZD

Unavailable

SADDLEBAG (LOWER) *B127M* (COMMODORE BLUE GREEN METALLIC) SADDLEBAG, L. *R114CU* This part replaces 81410-MN5-000ZE.

81410-MN5-010ZE

Unavailable

SADDLEBAG (LOWER) *R114CU* (CANDY WINE BERRY RED-U)

81410-MN5-010ZD

Unavailable

SADDLEBAG (LOWER) *B127M* (COMMODORE BLUE GREEN METALLIC) SADDLEBAG, L. *R114CU*

81410-MN5-010ZE

Unavailable

COVER, L. SADDLEBAG (LOWER) *YR149M* (MARTINI BEIGE METALLIC)

81414-MN5-000ZC

Unavailable

COVER, L. SADDLEBAG (LOWER) *B127M* (COMMODORE BLUE GREEN METALLIC)

81414-MN5-000ZE

Unavailable

COVER, L. SADDLEBAG (LOWER) *R114CU* (CANDY WINE BERRY RED-U)

81414-MN5-000ZD

$240.82

TAPE, L. SADDLEBAG

81415-MN5-300

$4.02

LID, L. SADDLEBAG *YR149M* (MARTINI BEIGE METALLIC)

81420-MN5-000ZC

Unavailable

LID, L. SADDLEBAG *R114CU* (CANDY WINE BERRY RED-U) LID, L. SADDLEBAG *PB224M* This part replaces 81420-MN5-000ZD.

81420-MT8-000ZA

Unavailable

LID, L. SADDLEBAG *B127M* (COMMODORE BLUE GREEN METALLIC) This part replaces 81420-MN5-000ZE.

81420-MT8-000ZC

Unavailable

LID, L. SADDLEBAG *B127M* (COMMODORE BLUE GREEN METALLIC)

81420-MT8-000ZC

Unavailable

LID, L. SADDLEBAG *R114CU* (CANDY WINE BERRY RED-U) LID, L. SADDLEBAG *PB224M*

81420-MT8-000ZA

Unavailable

STRIKER, L. FR. SADDLEBAG | Use from Frame SN KA106424

81426-MN5-000

Unavailable

STRIKER, L. RR. SADDLEBAG | Use from Frame SN KA106424

81428-MN5-000

$7.82

HINGE, L. RR. SADDLEBAG | Use up to Frame SN KA103603 This part replaces 81430-MN5-000.

81430-MN5-010

$131.27

HINGE, L. RR. SADDLEBAG

81430-MN5-010

$131.27

HINGE, L. FR. SADDLEBAG | Use up to Frame SN KA103603 This part replaces 81435-MN5-000.

81435-MN5-010

$102.13

HINGE, L. FR. SADDLEBAG

81435-MN5-010

$102.13

RUBBER, HINGE SEAL (LOWER)

81437-MN5-300

$1.69

WASHER, HINGE SETTING | Use from Frame SN KA103604

81438-MN5-000

$8.98

RUBBER, HINGE SEAL (UPPER) | Use from Frame SN KA103604

81439-MN5-000

$5.30

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.45

BAG, OWNER'S MANUAL

83642-MN5-000

$16.39

EMBLEM, SADDLEBAG (HONDA)

87111-MG9-700

Unavailable

LABEL, HELMET HOLDER

87511-323-670

$2.72

LABEL, TRUNK SADDLEBAG

87520-MT2-300

$4.94

LABEL, SADDLEBAG

87521-MT2-300

Unavailable

SCREW, HANDLE COVER SETTING

90103-GB6-930

$3.44

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

NUT, PLATE (5MM)

90305-MN5-000

$6.02

COLLAR (5.5X6.3)

90505-MN5-000

Unavailable

GROMMET

90801-MN5-010

$3.99

SCREW-WASHER (5X12)

93891-05012-00

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (5X16)

93893-05016-07

$1.49

SCREW-WASHER (5X20)

93893-05020-07

$1.49

SCREW-WASHER (5X25)

93893-05025-07

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

NUT, FLANGE (5MM)

94050-05080

$1.49

WASHER, PLAIN (5MM) | Use from Frame SN KA103604

94103-05700

$1.49

BOLT, FLANGE (6X20)

96001-06020-07

$1.49
