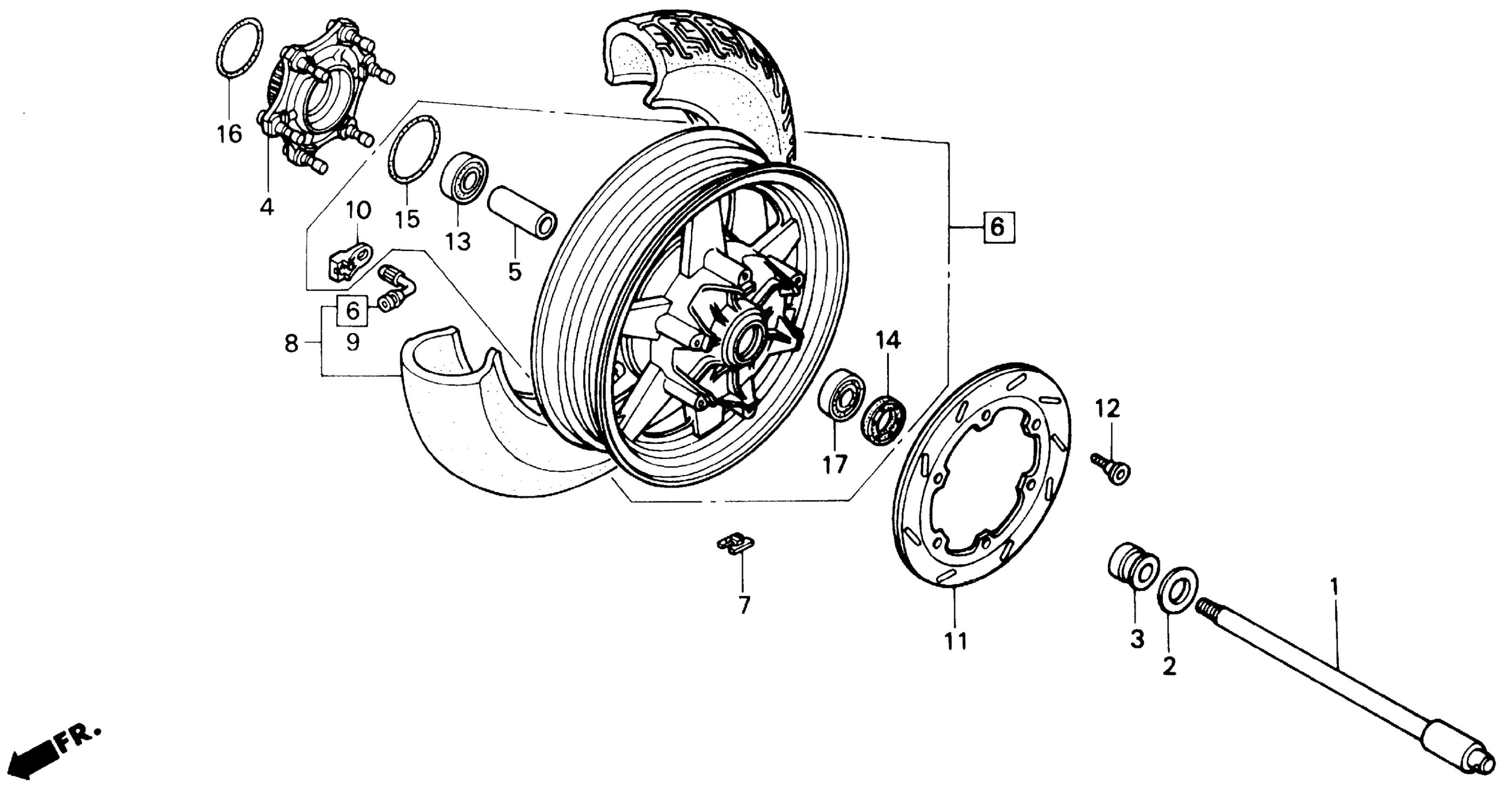

Honda GL1500A (89) GOLD WING, USA, VIN# 1HFSC220-KA100001 TO 1HFSC220-KA110411 REAR WHEEL 88-89 Diagram

#

Description
Price

1

AXLE, RR. WHEEL

42301-MN5-000

Unavailable

2

SPACER, RR. BRAKE SIDE

42312-463-000

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$35.32

4

FLANGE, FINAL DRIVEN

42614-ML8-670

Unavailable

5

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MN5-000.

42620-MW5-000

Unavailable

5

COLLAR, RR. AXLE DISTANCE

42620-MW5-000

Unavailable

6

WHEEL SET, RR. This part replaces 42650-MN5-305.

42650-MN5-315

Unavailable

7

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$11.69

7

WEIGHT, BALANCE (10G)

42704-MCF-D60

$11.69

7

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$14.21

7

WEIGHT, BALANCE (20G)

42705-MCF-D60

$14.21

7

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$13.29

7

WEIGHT, BALANCE (30G)

42706-MCF-D60

$13.29

8

TIRE, RR. (160/80-16) (M/C 75H) (DUNLOP) This part replaces 42710-MN5-005.

42711-MN5-025

Unavailable

8

TIRE, RR. (160/80-16) (M/C 75H) (DUNLOP) This part replaces 42711-MN5-005.

42711-MN5-025

Unavailable

9

VALVE, RIM (DUNLOP)

42753-MN5-004

$15.04

10

HOLDER, RIM VALVE

42754-MN5-000

$4.88

11

DISK, RR. BRAKE (NOT AVAILABLE)

43251-MT2-003

Unavailable

12

BOLT, FR. DISK (8X24)

90105-KR3-000

$5.80

13

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$68.78

14

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$11.13

14

DUST SEAL (30X47X8) (NOK)

91253-443-762

$11.13

15

O-RING (61X2)

91302-MA6-003

$4.93

16

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

Unavailable

16

O-RING (50.5X3.5) (ARAI) This part replaces 91358-MG9-004.

91358-MG9-003

Unavailable

17

BEARING, RADIAL BALL (6204UU)

96150-62040-10

$16.99
