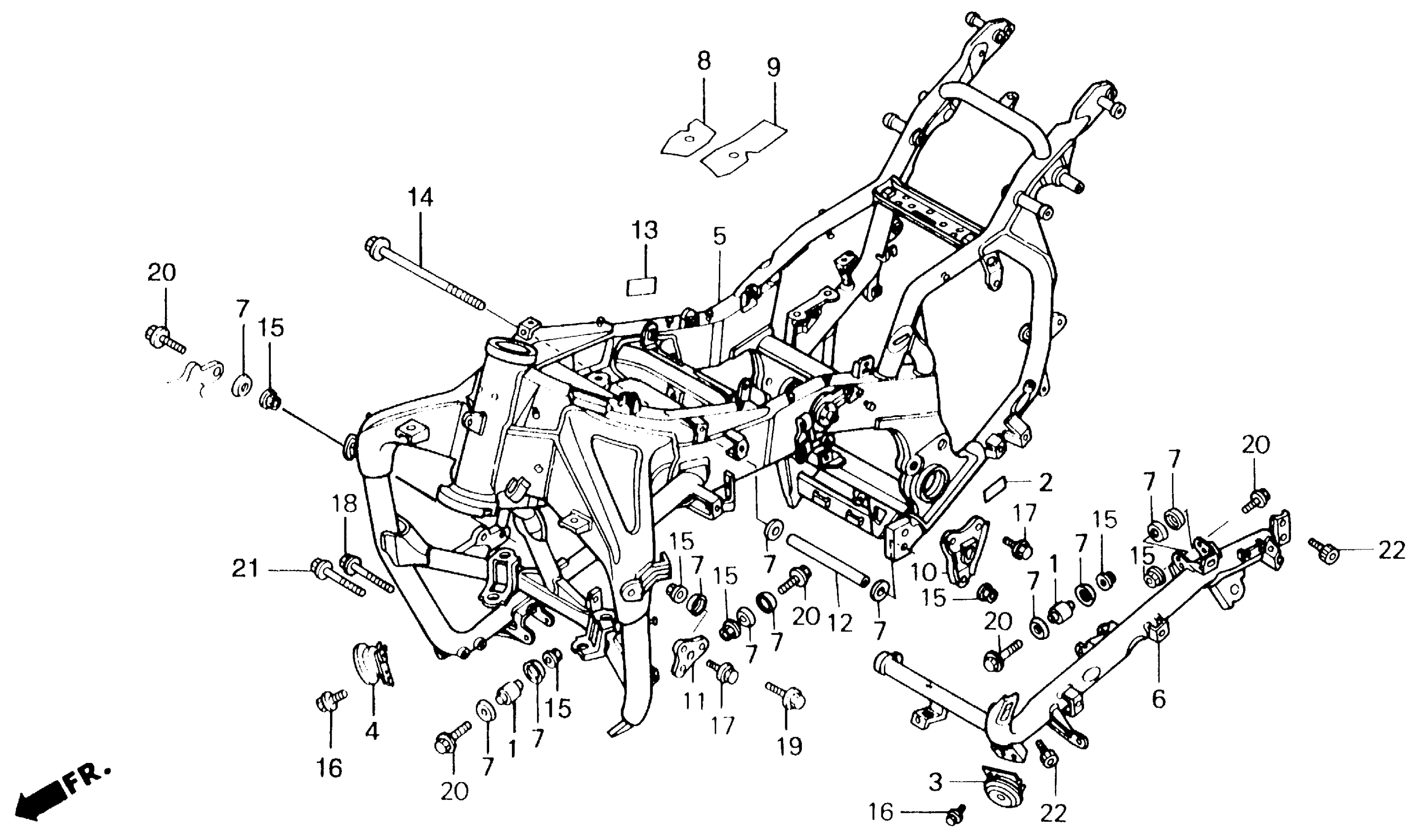

Honda GL1500A (89) GOLD WING, USA, VIN# 1HFSC220-KA100001 TO 1HFSC220-KA110411 FRAME Diagram

#

Description
Price

1

BUSH, ENGINE HANGER (B)

11141-MN5-000

Unavailable

2

LABEL, ALTERNATOR CAUTION

31115-MT2-300

Unavailable

3

HORN (HIGH)

38110-MN5-003

Unavailable

4

HORN (LOW)

38120-MN5-003

Unavailable

5

FRAME *NH1* (BLACK)

50100-MT2-000ZA

Unavailable

6

SUB-FRAME *NH1* (BLACK) (NA USE ALT:50150-MN5-000ZA)

50150-MN5-000

Unavailable

7

RUBBER C, MOUNTING

50203-MN5-000

Unavailable

8

TAPE, R. MAIN PIPE GUSSET (UPPER) | Use from Frame SN KA106653

50310-MT2-000

Unavailable

9

TAPE, L. MAIN PIPE GUSSET (UPPER) | Use from Frame SN KA106653

50311-MT2-000

Unavailable

10

BRACKET, L. RR. ENGINE HANGER

50352-MN5-000

Unavailable

11

BRACKET, L. FR. ENGINE HANGER

50354-MN5-000

Unavailable

12

COLLAR B, DISTANCE

50362-MN5-000

Unavailable

13

LABEL, BATTERY

87506-MT2-300

Unavailable

14

BOLT, ENGINE HANGER (10X310)

90152-MN5-000

Unavailable

15

NUT, FLANGE (10MM)

94050-10080

$3.24

16

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

17

BOLT, FLANGE (8X20)

95701-08020-08

$1.62

18

BOLT, FLANGE (8X80)

95701-08080-08

$2.89

19

BOLT, FLANGE (10X60)

95701-10060-08

$2.59

20

BOLT, FLANGE (10X60)

95701-10060-08

$2.59

21

BOLT, FLANGE (10X70)

95701-10070-08

$3.13

22

BOLT, SOCKET (10X20) | Use up to Frame SN KA106423

96700-10020-10

Unavailable

22

BOLT, SOCKET (10X28) | Use from Frame SN KA106424

90106-MN5-000

Unavailable
