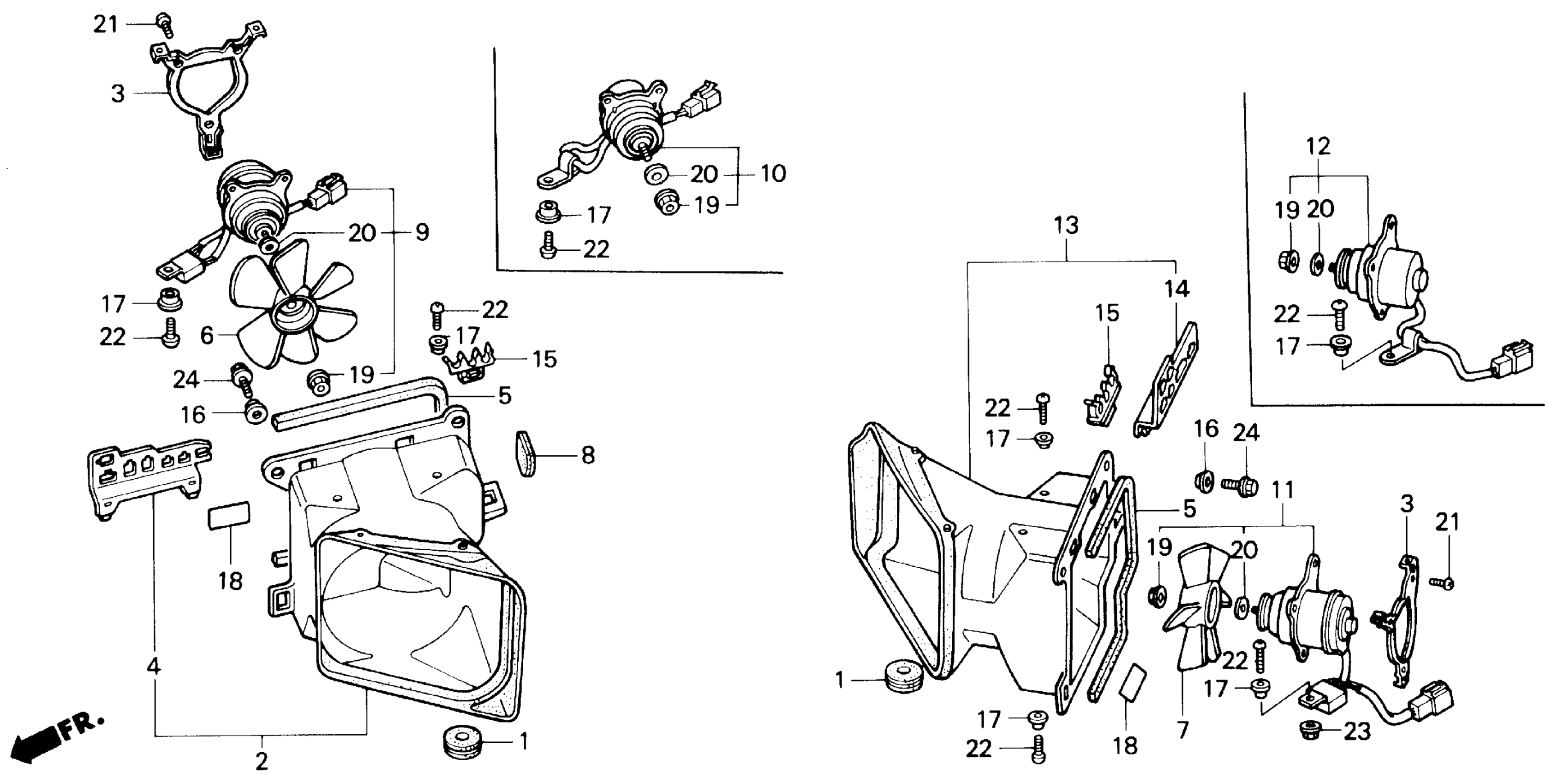

Honda GL1500A (89) GOLD WING, USA, VIN# 1HFSC220-KA100001 TO 1HFSC220-KA110411 COOLING FAN Diagram

#

Description
Price

1

RUBBER, RADIATOR MOUNTING

19012-HB9-000

$6.80

2

SHROUD ASSY., R.

19020-MT2-000

Unavailable

3

STAY, FAN MOTOR

19021-MN5-000

Unavailable

4

HOLDER, R. SHROUD CONNECTOR This part replaces 19022-MN5-000.

19022-MT8-770

Unavailable

4

HOLDER, R. SHROUD CONNECTOR

19022-MT8-770

Unavailable

5

SEAL, FAN SHROUD

19023-MN5-300

$8.84

6

FAN, R. COOLING (MITSUBA)

19024-MN5-003

Unavailable

7

FAN, L. COOLING (MITSUBA)

19025-MN5-003

Unavailable

8

GROMMET, SHROUD

19027-MN5-000

Unavailable

9

MOTOR ASSY., R. FAN This part replaces 19030-MN5-003.

19030-MN5-023

Unavailable

9

MOTOR ASSY., R. FAN This part replaces 19030-MN5-013.

19030-MN5-023

Unavailable

11

MOTOR ASSY., L. FAN This part replaces 19032-MN5-003.

19032-MN5-023

Unavailable

11

MOTOR ASSY., L. FAN This part replaces 19032-MN5-013.

19032-MN5-023

Unavailable

13

SHROUD ASSY., L. (NOT AVAILABLE)

19070-MT2-000

Unavailable

14

HOLDER, L. SHROUD CONNECTOR

19072-MN5-000

Unavailable

15

CLAMP B, IGNITION WIRE

32982-MT2-000

Unavailable

16

COLLAR, FR. FENDER

61105-MA3-000

$3.80

17

COLLAR, HEADLIGHT SETTING

61304-397-830

$2.03

18

LABEL, SHROUD FAN

87509-MT2-300

Unavailable

19

NUT, HEX. (5MM) (MITSUBA)

90041-PG6-004

$5.26

20

WASHER, PLAIN (7MM)

90511-MB6-003

Unavailable

21

SCREW, PAN (4X6)

93500-04006-0G

$1.49

22

SCREW, PAN (5X12)

93500-05012-0A

$1.49

23

NUT, FLANGE (5MM)

94050-05080

$1.49

24

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
