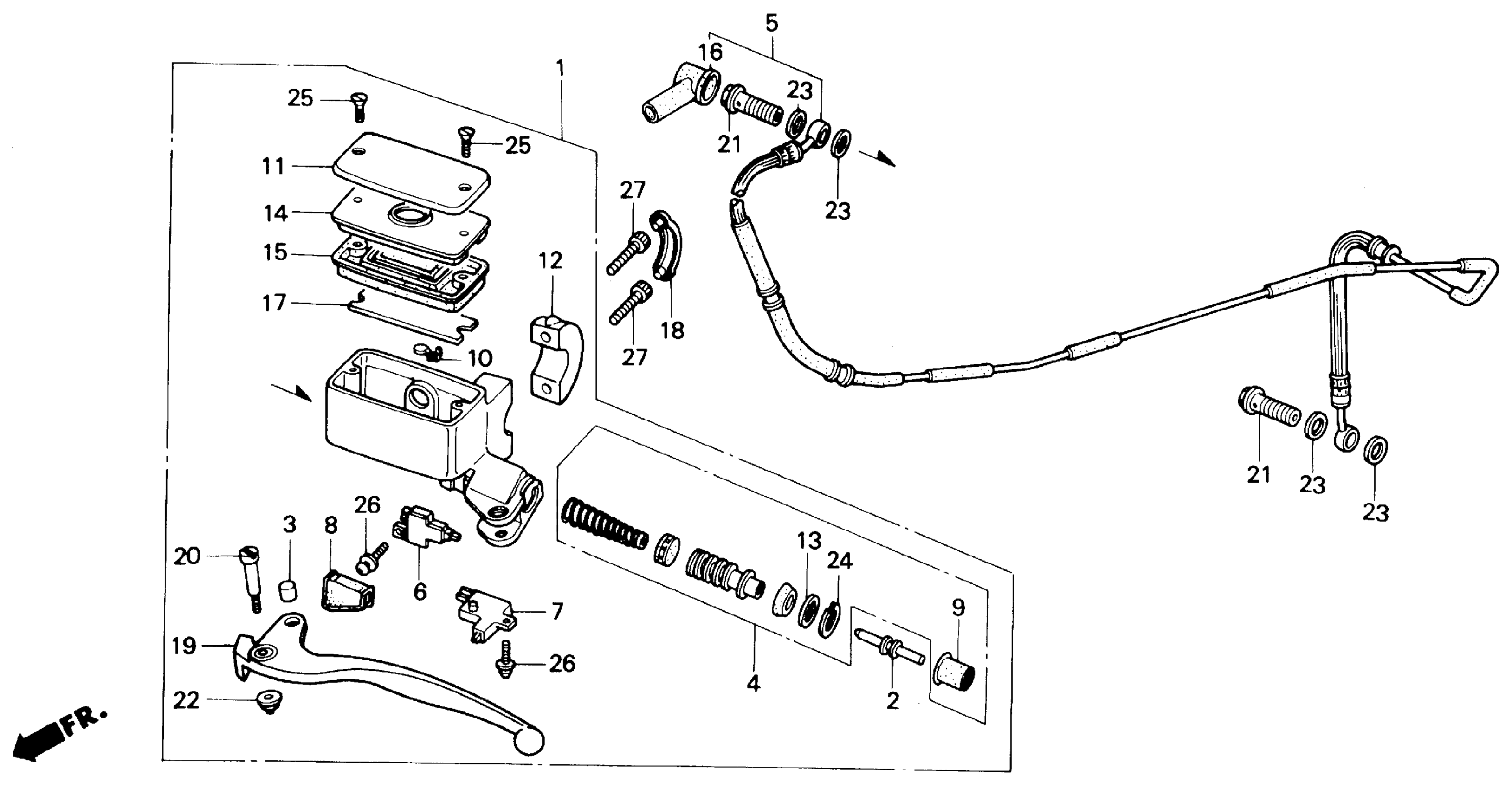

Honda GL1500A (89) GOLD WING, USA, VIN# 1HFSC220-KA100001 TO 1HFSC220-KA110411 CLUTCH MASTER CYLINDER Diagram

MASTER CYLINDER ASSY., CLUTCH (NISSIN) (NOT AVAILABLE)

22880-MN5-006

Unavailable

ROD, PUSH

22884-MB0-006

$20.66

BUSH

22885-MB0-006

$12.95

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB4-305

$74.32

HOSE, CLUTCH

22900-MAM-A80

$87.55

HOSE, CLUTCH This part replaces 22900-MT2-000.

22900-MAM-A80

$87.55

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

SWITCH ASSY., CLUTCH CRUISE (TOYO)

35335-MG9-951

$23.58

COVER, CLUTCH SWITCH (NOT AVAILABLE)

35359-MN5-000

Unavailable

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER

45513-MAM-A61

$33.75

CAP, MASTER CYLINDER This part replaces 45513-MN5-006.

45513-MAM-A61

$33.75

HOLDER, MASTER CYLINDER (NISSIN) This part replaces 45517-MN5-006.

45517-MN5-016

Unavailable

HOLDER, MASTER CYLINDER (NISSIN)

45517-MN5-016

Unavailable

PLATE, STOPPER

45518-MB0-006

$1.84

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

DIAPHRAGM

45520-MM5-006

$15.12

BOOT, MASTER CYLINDER

45522-422-000

$8.68

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

CAP, BRAKE MASTER CYLINDER HOLDER

45553-MAM-A60

$3.12

CAP, BRAKE MASTER CYLINDER HOLDER This part replaces 45553-MN5-000.

45553-MAM-A60

$3.12

LEVER, L. HANDLE

53178-MN5-006

$39.49

BOLT, HANDLE LEVER

90114-MG9-951

$7.88

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

NUT, CAP (6MM)

90202-ZV0-000

$2.91

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, SOCKET (6X20) This part replaces 96700-06020-17.

96600-06020-17

$1.49

BOLT, SOCKET (6X20)

96600-06020-17

$1.49
