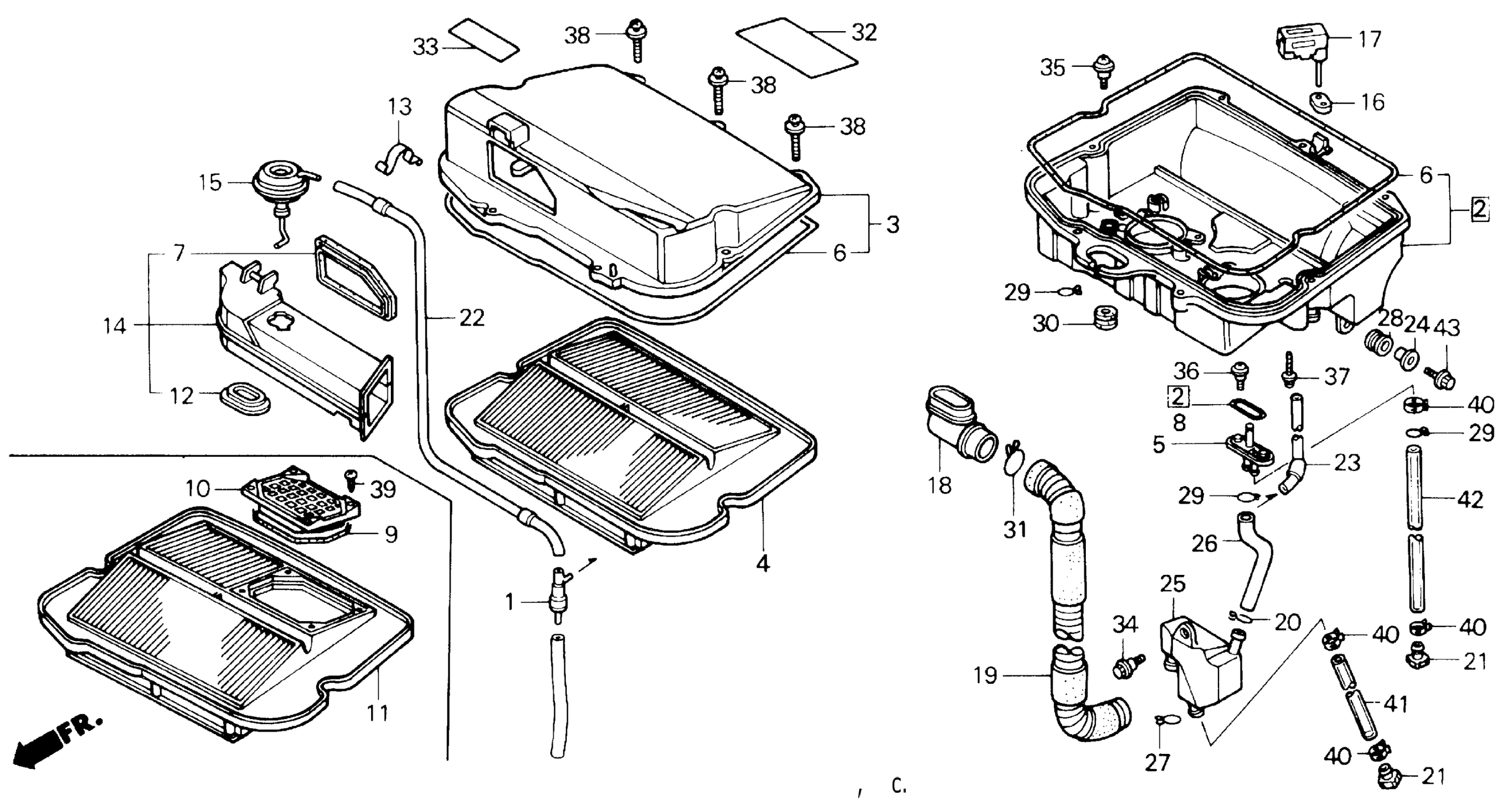

Honda GL1500A (89) GOLD WING, USA, VIN# 1HFSC220-KA100001 TO 1HFSC220-KA110411 AIR CLEANER Diagram

#

Description
Price

1

VALVE, CHECK

17155-MN5-003

Unavailable

2

HOUSING, AIR CLEANER | Use up to Frame SN KA106507 This part replaces 17200-MN5-000.

17200-MN5-010

Unavailable

2

HOUSING, AIR CLEANER

17200-MN5-010

Unavailable

3

COVER, AIR CLEANER (NOT AVAILABLE)

17201-MN5-000

Unavailable

4

ELEMENT, AIR CLEANER

17205-MN5-003

$41.74

5

JOINT, AIR CLEANER TUBE | Use from Frame SN KA106508

17211-MT2-000

Unavailable

6

SEAL, AIR CLEANER HOUSING

17213-MN5-300

$13.69

7

SEAL, AIR CLEANER IN. This part replaces 17214-MN5-000.

17214-MN5-010

Unavailable

7

SEAL, AIR CLEANER IN.

17214-MN5-010

Unavailable

8

SEAL, AIR CLEANER TUBE JOINT | Use from Frame SN KA106508

17214-MT2-300

Unavailable

12

SEAL, HOT AIR

17219-MN5-000

Unavailable

13

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.88

14

INLET ASSY., AIR CLEANER This part replaces 17225-MN5-000.

17225-MN5-010

$75.61

14

INLET ASSY., AIR CLEANER

17225-MN5-010

$75.61

15

DIAPHRAGM, CONTROL VALVE

17245-MN5-004

Unavailable

16

INSULATOR, SENSOR (NOT AVAILABLE)

17247-PA0-000

Unavailable

17

SENSOR, IN. AIR

17250-MN5-003

Unavailable

18

JOINT, AIR CLEANER IN.

17270-MN5-000

Unavailable

19

PIPE, HOT AIR

17301-MN5-013

Unavailable

20

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

21

PLUG, BREATHER TUBE

17370-419-700

$3.74

22

TUBE (3.5X235) (2) (PINK)

17459-MT2-000

Unavailable

23

TUBE (3.5X160) (PINK 3) (NOT AVAILABLE) | Use up to Frame SN KA106507

17460-MN5-000

Unavailable

23

TUBE (PINK 3) | Use from Frame SN KA106508

17460-MT2-000

Unavailable

24

COLLAR, FUEL TANK SETTING

17535-KE7-000

$3.31

24

COLLAR, FUEL TANK SETTING This part replaces 17535-166-000.

17535-KE7-000

$3.31

25

CRANKCASE BREATHER STORAGE TANK

17551-MN5-000

Unavailable

26

TUBE A, BREATHER

17552-MN5-000

Unavailable

27

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

28

CUSHION, FR. FUEL TANK

17611-MB1-000

$3.67

29

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

30

GROMMET, RADIATOR

19053-MB2-000

$4.52

31

CLIP, OIL HOSE

55110-196-000

Unavailable

33

LABEL, RADIATOR

87508-MT2-300

Unavailable

34

BOLT, FLANGE (6MM)

90111-162-000

$2.89

35

SCREW, PAN (5X13)

90117-MN5-000

$2.28

36

SCREW, PAN (5X13) | Use from Frame SN KA106508

90117-MN5-000

$2.28

37

SCREW, PAN (4X16)

93500-04016-0G

$1.49

38

SCREW-WASHER (5X16)

93891-05016-07

$1.49

40

CLAMP, TUBE (D12) | Use up to Frame SN KA106507

95002-41200-08

$2.34

40

CLAMP, TUBE (D12) | Use from Frame SN KA106508

95002-41200-08

$2.34

41

BULK HOSE, VINYL (8X12X8000) (8X12X390)

95003-23008-60M

Unavailable

42

BULK HOSE, VINYL (8X12X8000) (8X12X450)

95003-23008-60M

Unavailable

43

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
