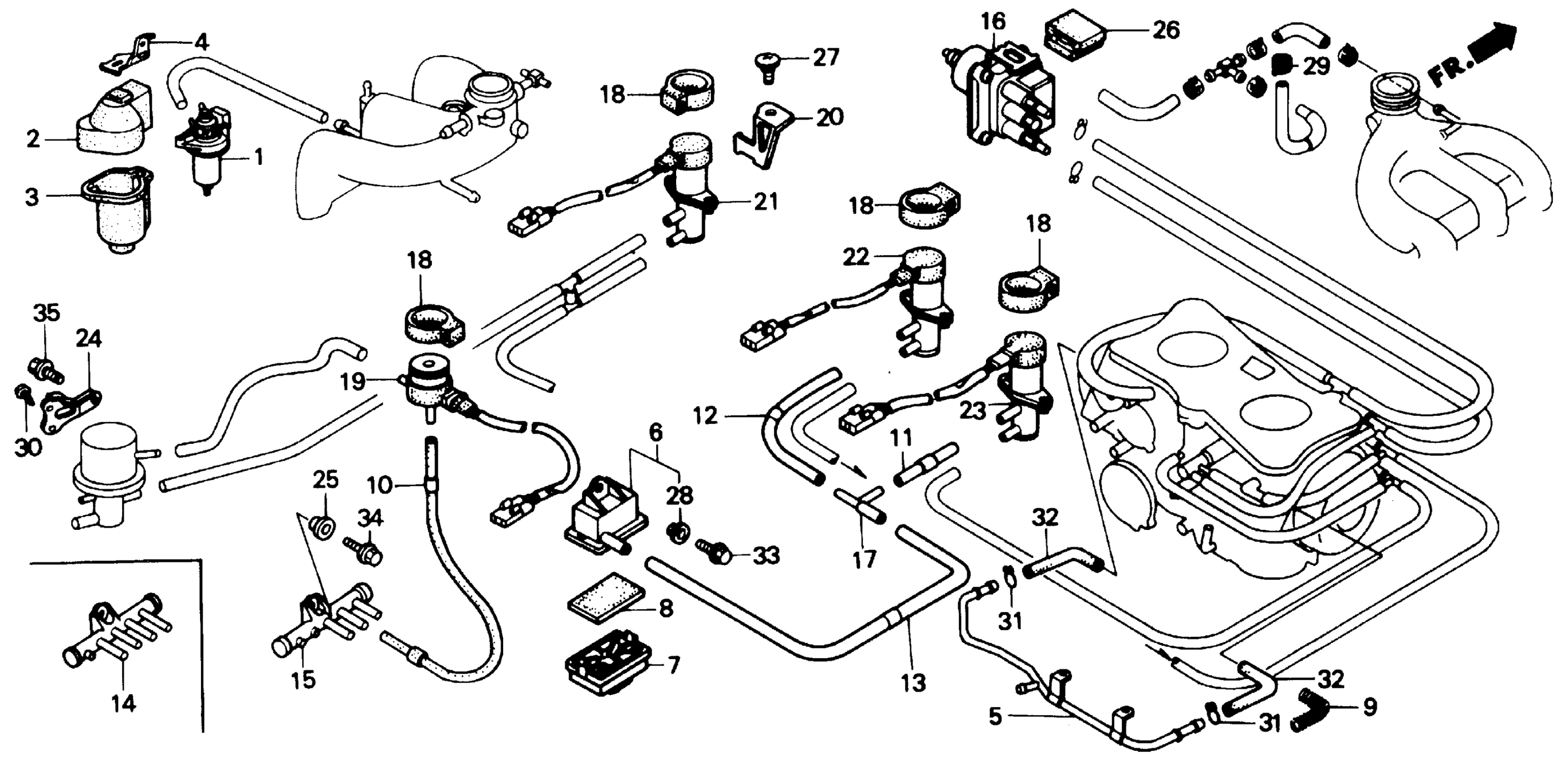

Honda GL1500A (88) GOLD WING, USA, VIN# 1HFSC220-JA000001 TO 1HFSC220-JA010467 SOLENOID VALVE 88 Diagram

#

Description
Price

1

VALVE, CONTROL (NOT AVAILABLE)

16300-MN5-004

Unavailable

2

COVER, CONTROL VALVE (UPPER) (NOT AVAILABLE)

16301-MN5-003

Unavailable

3

COVER, CONTROL VALVE (LOWER) (NOT AVAILABLE)

16302-MN5-003

Unavailable

4

STAY, CONTROL VALVE (NOT AVAILABLE) This part replaces 16303-MN5-004.

16303-MN5-014

Unavailable

5

PIPE A, AIR VENT (NOT AVAILABLE)

17196-MN5-000

Unavailable

6

CASE, SUB-AIR CLEANER

17251-MN5-000

Unavailable

7

COVER, SUB-AIR CLEANER

17252-KT8-000

Unavailable

8

FILTER, SUB-AIR CLEANER

17253-KT8-000

$2.66

9

SPRING, AIR VENT TUBE (NOT AVAILABLE)

17415-MN5-000

Unavailable

10

TUBE (4.5X310) (YELLOW 3) (NOT AVAILABLE)

17456-MN5-000

Unavailable

11

TUBE (5.5X90) (20) (WHITE)

17463-MN5-000

Unavailable

12

TUBE (5.5X80) (21) (WHITE)

17464-MN5-000

Unavailable

13

TUBE (8X310) (22) (WHITE)

17465-MN5-000

Unavailable

15

JOINT (THREE-WAY)

17469-MN5-610

Unavailable

16

CONTROL ASSY., AIR JET (NOT AVAILABLE)

17470-MN5-013

Unavailable

17

JOINT (THREE-WAY)

17474-MN5-000

Unavailable

18

SUSPENSION, SOLENOID VALVE

36172-MN5-003

$5.03

19

VALVE, SOLENOID (NOT AVAILABLE)

36173-MN5-003

Unavailable

20

STAY, SHOT AIR SOLENOID VALVE

36174-MN5-000

Unavailable

21

VALVE, SHOT AIR SOLENOID (NOT AVAILABLE)

36187-MN5-003

Unavailable

22

VALVE, AIR JET SOLENOID (2)

36193-MN5-003

Unavailable

23

VALVE, AIR JET SOLENOID (3)

36197-MN5-003

Unavailable

24

BRACKET, SHOT AIR VALVE (NOT AVAILABLE)

50266-MN5-000

Unavailable

25

COLLAR, FR. FENDER

61105-MA3-000

$3.80

26

SUSPENSION, AIR JET CONTROL (NOT AVAILABLE)

64239-MN5-000

Unavailable

27

SCREW, PANEL (INNER)

90105-MN5-000

$5.30

28

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

29

CLAMP, TUBE (D12)

91405-PD1-004

$9.24

30

SCREW, TAPPING (5X10)

93904-25180

Unavailable

31

CLIP, TUBE (B12)

95002-02120

$2.00

32

BULK HOSE, VACUUM (7.3X3000) (7.3X115)

95005-75003-10M

$93.59

33

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

34

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

35

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
