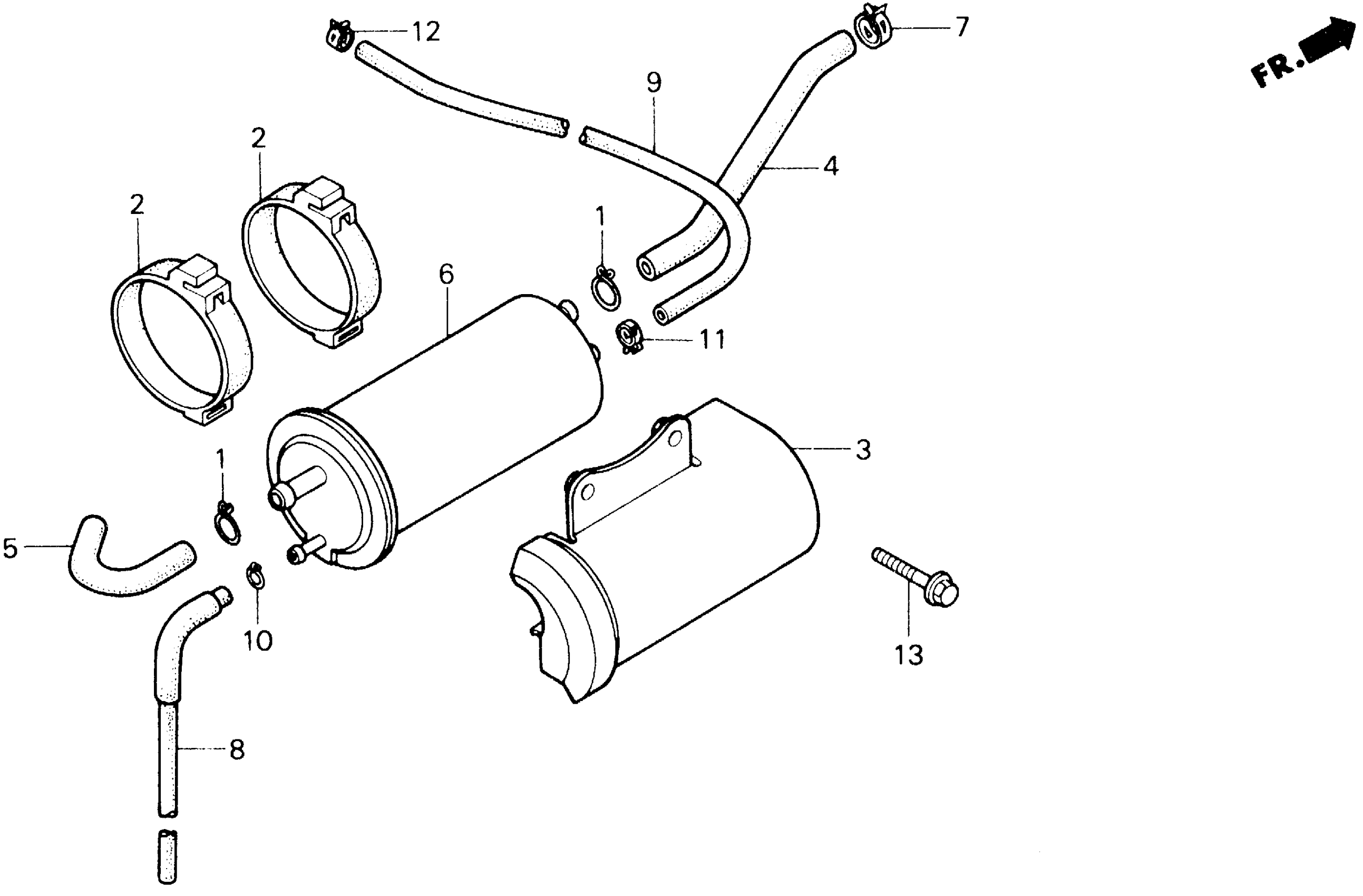

Honda GL1200SEIAC (86) GOLD WING ASPENCADE SE-I, USA, VIN# 1HFSC147-GA200991 TO 1HFSC147-GA212875 SE-I CANISTER AC 86 Diagram

CLIP, BREATHER TUBE

15772-500-010

$3.90

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

BAND, CANISTER SETTING

17303-MG9-640

$8.43

COVER, CANISTER (NOT AVAILABLE)

17305-MG9-640

Unavailable

TUBE, PURGE CONTROL VALVE

17307-MG9-640

Unavailable

TUBE, AIR BREATHER This part replaces 17309-MG9-640.

17309-ML8-790

Unavailable

TUBE, AIR BREATHER

17309-ML8-790

Unavailable

EVAPORATIVE EMISSION CANISTER ASSY.

17310-GE1-871

$101.30

EVAPORATIVE EMISSION CANISTER ASSY. This part replaces 17310-MG9-641.

17310-GE1-871

$101.30

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

TUBE, CANISTER DRAIN

91454-MG9-740

Unavailable

HOSE, FUEL (4.5X470) This part replaces 91455-MG9-640.

95001-45470-20

Unavailable

CLIP, TUBE (B8)

95002-02080

$1.80

CLAMP, TUBE (D8.5)

95002-40850-08

$2.34

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
