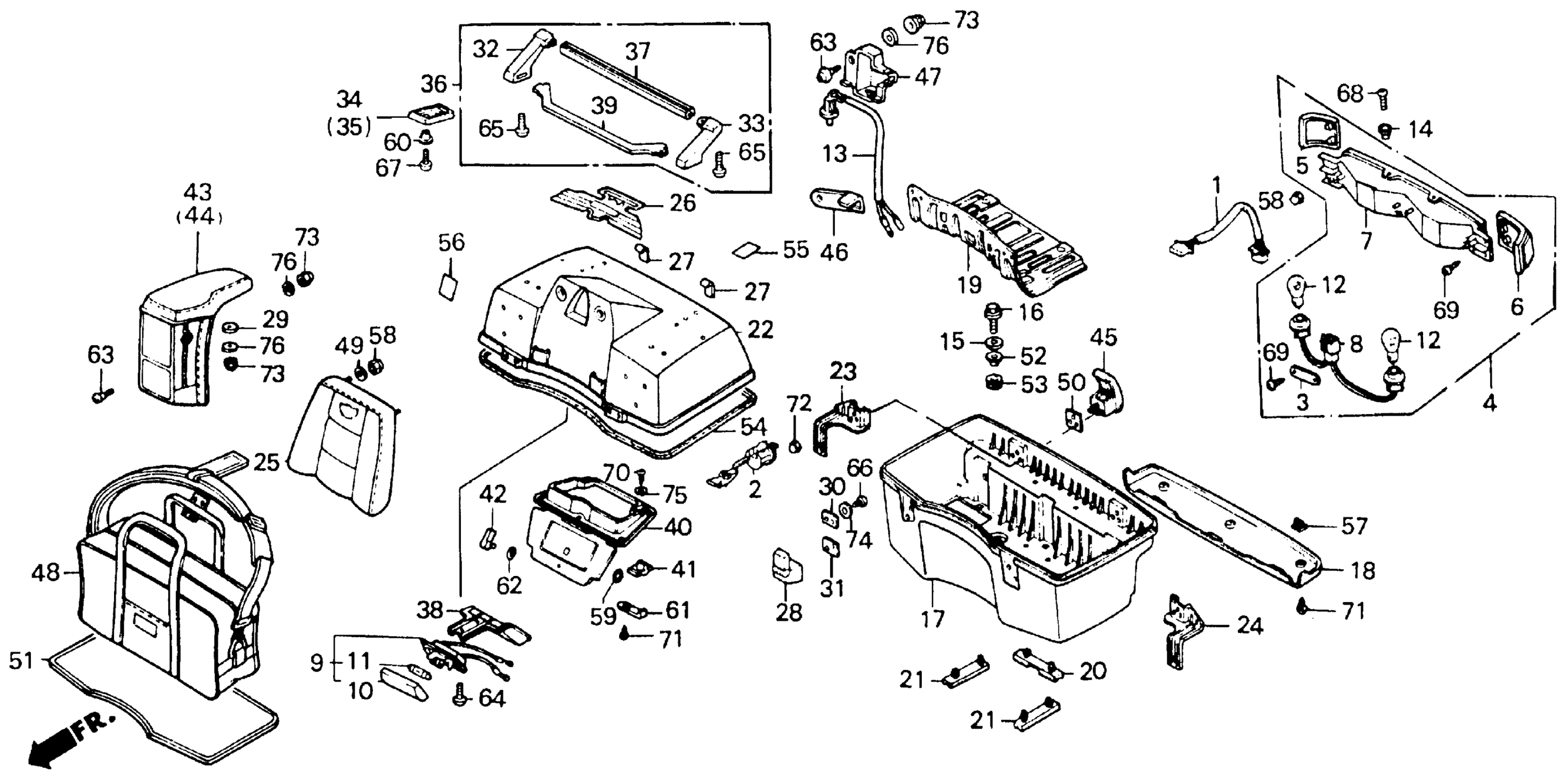

Honda GL1200SEIA (86) GOLD WING ASPENCADE SE-I, USA, VIN# 1HFSC146-GA202331 TO 1HFSC146-GA220355 SE-I REAR TRUNK 86 Diagram

SUB-WIRE, TRUNK TAILLIGHT (NOT AVAILABLE)

32106-MG9-870

Unavailable

BUSH, WIRE

32910-MG9-951

Unavailable

STAY

33507-SB0-671

Unavailable

TAILLIGHT ASSY., TRUNK (NOT AVAILABLE)

33801-ML8-751

Unavailable

REFLECTOR ASSY., TRUNK (NOT AVAILABLE)

33804-MG9-771

Unavailable

REFLECTOR ASSY., TRUNK (NOT AVAILABLE)

33805-MG9-771

Unavailable

TAILLIGHT SUB-ASSY. (NOT AVAILABLE)

33807-ML8-751

Unavailable

SOCKET, TAILLIGHT (NOT AVAILABLE)

33809-MG9-871

Unavailable

LIGHT ASSY., TRUNK (NOT AVAILABLE)

34251-MG9-951

Unavailable

LENS (NOT AVAILABLE)

34260-538-003

Unavailable

BULB (12V 5W.K)

34295-SD4-003

$5.75

BULB (12V 5W.K) This part replaces 34295-538-003.

34295-SD4-003

$5.75

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$4.15

SWITCH, TRUNK LIGHT

35320-ML8-751

Unavailable

COLLAR, FENDER COVER (NOT AVAILABLE)

80112-443-850

Unavailable

WASHER, PLAIN (6MM)

94103-06700

$1.49

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

TRUNK (LOWER) *Y108PA* (PEARL SPLENDOR IVORY) (NOT AVAILABLE)

81111-MG9-770ZT

Unavailable

COVER, TRUNK (LOWER) *Y108PA* (PEARL SPLENDOR IVORY) (NOT AVAILABLE)

81112-MG9-770ZS

Unavailable

STIFFENER, TRUNK (LOWER) (NOT AVAILABLE)

81113-MG9-950

Unavailable

RUBBER, RR. TRUNK CENTER

81118-MG9-770

Unavailable

RUBBER, RR. TRUNK (NOT AVAILABLE)

81119-MG9-770

Unavailable

TRUNK (UPPER) *Y108PA* (WL) (PEARL SPLENDOR IVORY) (NOT AVAILABLE)

81121-ML8-750ZA

Unavailable

STIFFENER, R. TRUNK LOCK

81122-MG9-770

Unavailable

STIFFENER, L. TRUNK LOCK

81123-MG9-770

$13.43

SEAT, BACK (NOT AVAILABLE)

81125-MG9-950

Unavailable

EMBLEM, TRUNK (UPPER)

81128-ML8-750

Unavailable

HOOK, TRUNK LOCK

81129-MG9-770

Unavailable

HINGE, TRUNK

81130-MG9-770

Unavailable

SEAL, TRUNK (UPPER)

81131-MB9-770

Unavailable

WASHER, HINGE

81134-MG9-770

Unavailable

RUBBER, HINGE

81135-MG9-770

$3.07

ARM, R. TRUNK GRIP (NOT AVAILABLE)

81136-MG9-950

Unavailable

ARM, L. TRUNK GRIP

81137-MG9-950

$44.98

BASE, R. TRUNK GRIP (NOT AVAILABLE)

81138-MG9-950

Unavailable

BASE, L. TRUNK GRIP

81139-MG9-950

Unavailable

GRIP ASSY., TRUNK (NOT AVAILABLE)

81140-MG9-950

Unavailable

GRIP

81141-MG9-950

Unavailable

STAY, TRUNK BOX LIGHT

81142-MG9-950

Unavailable

BAR, TRUNK GRIP (NOT AVAILABLE)

81143-MG9-950

Unavailable

LID, TRUNK (INNER) (NOT AVAILABLE)

81144-ML8-770

Unavailable

STOPPER, LID

81146-MG9-870

Unavailable

KNOB, TRUNK LID

81149-ML8-770

$6.41

ARMREST ASSY., R. *R58L* (TYPE1) (ROMANY RED) This part replaces 81154-MG9-950.

81154-MG9-950ZA

Unavailable

ARMREST ASSY., R. *R58L* (TYPE1) (ROMANY RED)

81154-MG9-950ZA

Unavailable

ARMREST ASSY., L. *R58L* (ROMANY RED) (NOT AVAILABLE) This part replaces 81164-MG9-950.

81164-MG9-950ZA

Unavailable

LOCK ASSY., TRUNK (NOT AVAILABLE)

81170-MG9-771

Unavailable

STOPPER, LIGHT SWITCH

81176-ML8-750

Unavailable

STAY, LIGHT SWITCH

81179-ML8-750

Unavailable

BAG, TRUNK (INNER)

81180-ML8-750

$78.00

RUBBER, SADDLEBAG CUSHION (NOT AVAILABLE)

81216-ME2-770

Unavailable

PLATE, LOCK SETTING

81223-MG9-770

Unavailable

FLOOR MAT, TRUNK (NOT AVAILABLE)

81242-MG9-870

Unavailable

COLLAR, SADDLEBAG SETTING

81245-463-770

Unavailable

RUBBER B, SADDLEBAG SETTING

81247-463-770

$3.56

RUBBER, TRUNK SEAL (NOT AVAILABLE)

81420-MG9-770

Unavailable

LABEL, TRUNK SADDLEBAG CAUTION (NOT AVAILABLE)

87520-ML8-670

Unavailable

LABEL, SIDE POCKET

87525-MB9-870

Unavailable

GROMMET, SCREW (4MM) (NOT AVAILABLE)

90108-MG9-770

Unavailable

NUT, CAP (6MM)

90201-428-900

$2.23

NUT, PUSH (3MM) This part replaces 90310-SB2-003.

90301-ST0-003

$3.25

WASHER, NUMBER BRACKET SETTING

90402-GB0-900

$3.52

CLIP, L. HARNESS

90655-MG9-950

Unavailable

O-RING (4.1X1.5)

91308-371-003

$4.83

SCREW, PAN (5X7)

91508-GA6-000

$3.64

SCREW, PAN (3X8)

93500-03008-0G

Unavailable

SCREW, PAN (5X10)

93500-05010-0A

$1.49

SCREW, PAN (5X12)

93500-05012-0G

$1.49

SCREW, PAN (5X16)

93500-05016-0G

$1.49

SCREW, PAN (6X16)

93500-06016-0G

$1.49

SCREW, TAPPING (4X12)

93901-34320

$1.49

SCREW, TAPPING (4X8)

93903-24110

$1.49

SCREW, TAPPING (4X10)

93903-24280

$1.49

NUT, CAP (4MM)

94021-04070-0S

$1.49

NUT, CAP (5MM)

94021-05070-0S

$1.49

WASHER, PLAIN (5MM)

94101-05700

$1.49

WASHER, PLAIN (4MM)

94103-04800

$1.49

WASHER, PLAIN (5MM)

94103-05700

$1.49
