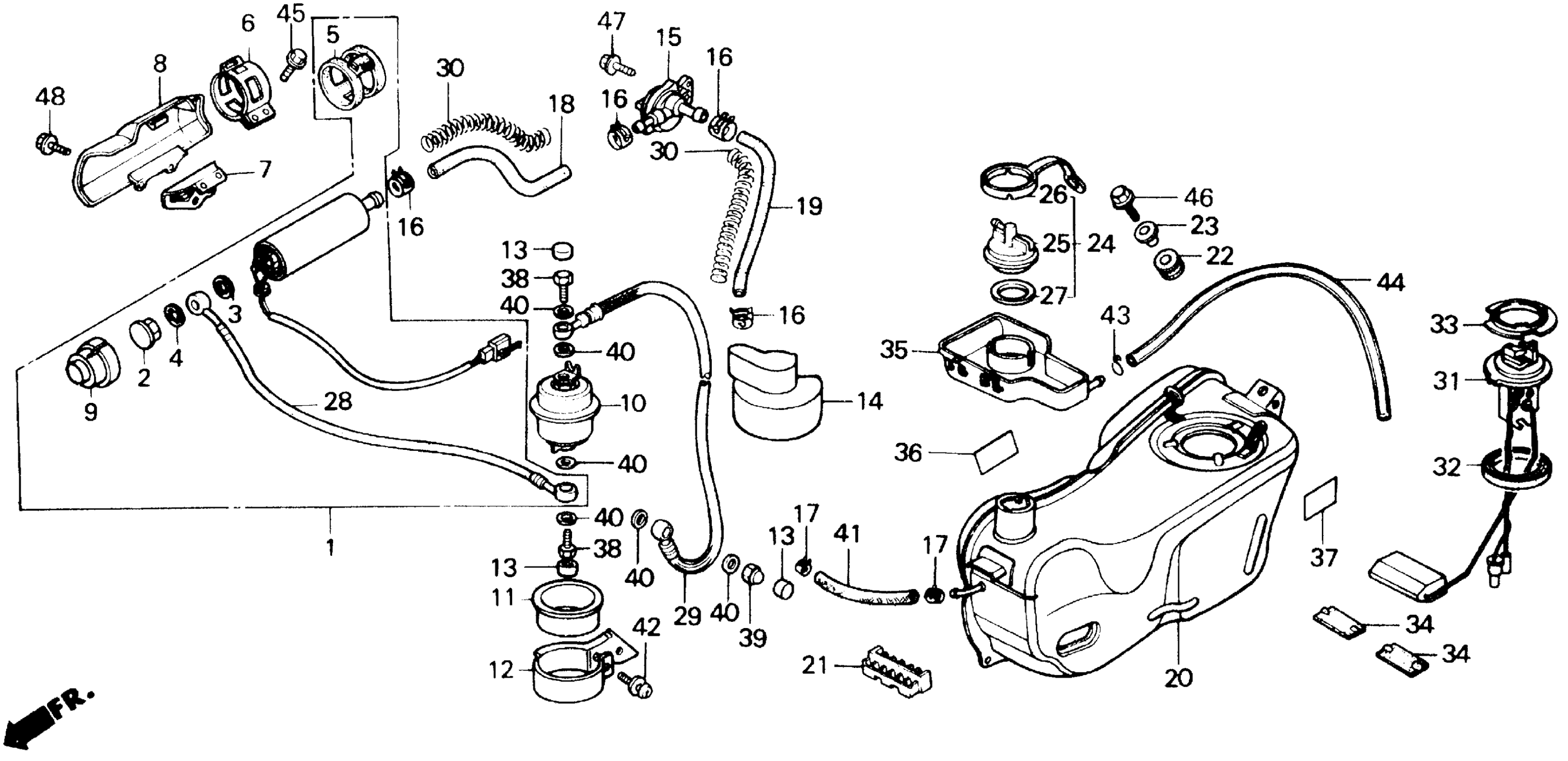

Honda GL1200SEIA (86) GOLD WING ASPENCADE SE-I, USA, VIN# 1HFSC146-GA202331 TO 1HFSC146-GA220355 SE-I FUEL TANK 86 Diagram

#

Description
Price

1

PUMP ASSY., FUEL (NOT AVAILABLE)

16700-ML8-751

Unavailable

2

NUT, FUEL PUMP (NOT AVAILABLE)

16701-MG9-951

Unavailable

3

WASHER, PUMP (NOT AVAILABLE)

16702-MC7-003

Unavailable

4

GASKET, MUFFLER This part replaces 16703-MC7-003.

16705-PD1-003

$4.27

4

GASKET, MUFFLER

16705-PD1-003

$4.27

5

RUBBER, FUEL PUMP

16715-MG9-950

Unavailable

6

BAND, FUEL PUMP (NOT AVAILABLE)

16716-MG9-950

Unavailable

7

STAY, FUEL PUMP (NOT AVAILABLE)

16717-MG9-950

Unavailable

8

PROTECTOR, FUEL PUMP

16718-MG9-950

Unavailable

9

CAP, FUEL PUMP (NOT AVAILABLE)

16719-MG9-951

Unavailable

10

FILTER, FUEL

16900-MG9-951

Unavailable

11

BAND, STRAINER

16901-MG9-950

Unavailable

12

STAY, FUEL STRAINER

16902-MG9-950

Unavailable

13

BOLT, CAP (12MM) (NOT AVAILABLE)

16903-ML8-750

Unavailable

14

COVER, FUEL STRAINER

16905-ML8-750

Unavailable

15

PETCOCK ASSY. (NOT AVAILABLE)

16950-MG9-951

Unavailable

16

CLIP B, FUEL HOSE

16968-MC7-000

$6.89

17

CLIP, FUEL HOSE (NOT AVAILABLE)

16969-MC7-000

Unavailable

18

HOSE, FUEL (A) (NOT AVAILABLE)

16970-MG9-950

Unavailable

19

HOSE, FUEL (B) (NOT AVAILABLE) | Use up to Frame SN GA216881

16971-MG9-950

Unavailable

19

HOSE, FUEL (B) | Use from Frame SN GA216882

16971-MG9-951

Unavailable

20

TANK, FUEL

17510-ML8-750

$1,121.97

21

RUBBER B, FUEL TANK SETTING (NOT AVAILABLE)

17615-MG9-000

Unavailable

22

RUBBER C, FUEL TANK SETTING (NOT AVAILABLE)

17616-371-000

Unavailable

23

COLLAR, TANK SET (FUEL)

17618-371-000

Unavailable

24

CAP ASSY., FUEL FILLER This part replaces 17660-MG9-000.

17660-MN5-000

Unavailable

24

CAP ASSY., FUEL FILLER

17660-MN5-000

Unavailable

25

CAP, FUEL FILLER (NOT AVAILABLE)

17670-MG9-003

Unavailable

26

RING, FUEL FILLER CAP (NOT AVAILABLE)

17671-463-000

Unavailable

27

GASKET, FUEL FILLER CAP

17682-679-013

$8.95

28

HOSE ASSY., FUEL (NOT AVAILABLE)

17965-MG9-952

Unavailable

29

HOSE ASSY., FUEL (B)

17966-MG9-951

Unavailable

30

GUARD, WIRE

19512-GJ1-010

Unavailable

31

METER UNIT, FUEL (NOT AVAILABLE) This part replaces 37800-MG9-951.

37800-MG9-952

Unavailable

32

GASKET, BASE

37801-689-000

$4.90

33

RETAINER, FUEL UNIT (NOT AVAILABLE)

37802-371-000

Unavailable

34

RUBBER, SEAT SETTING

77204-312-000

$5.05

35

BOX, FUEL TANK (NOT AVAILABLE)

83502-MG9-950

Unavailable

37

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-MG9-950

Unavailable

38

BOLT, SEALING (12MM) This part replaces 90020-PD1-000.

90020-PD6-000

$7.31

38

BOLT, SEALING (12MM)

90020-PD6-000

$7.31

39

NUT A, SEALING (12MM)

90201-PD1-000

$4.87

40

WASHER, SEALING (12MM) This part replaces 90428-PD1-003.

90428-PD6-003

$5.20

40

WASHER, SEALING (12MM)

90428-PD6-003

$5.20

41

HOSE, FUEL RETURN

91453-MG9-950

Unavailable

42

BOLT-WASHER (6X16)

93403-06016-07

$1.87

42

BOLT-WASHER (6X16) This part replaces 93493-06016-07.

93403-06016-07

$1.87

43

CLIP, TUBE (B12)

95002-02120

$2.00

44

BULK HOSE, VINYL (8X12X8000) (8X12X750)

95003-23008-60M

Unavailable

45

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

45

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

46

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

46

BOLT, FLANGE (8X28)

95701-08028-08

$2.06

47

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

47

BOLT, FLANGE (6X14) This part replaces 95900-06014-00.

95701-06014-00

$1.49

48

BOLT, FLANGE (6X12) This part replaces 96000-06012-02.

96001-06012-02

$1.49

48

BOLT, FLANGE (6X12)

96001-06012-02

$1.49
