- GL1200SEIA (86) GOLD WING ASPENCADE SE-I, USA, VIN# 1HFSC146-GA202331 TO 1HFSC146-GA220355
SE-I FAIRING WIRE HARNESS 86

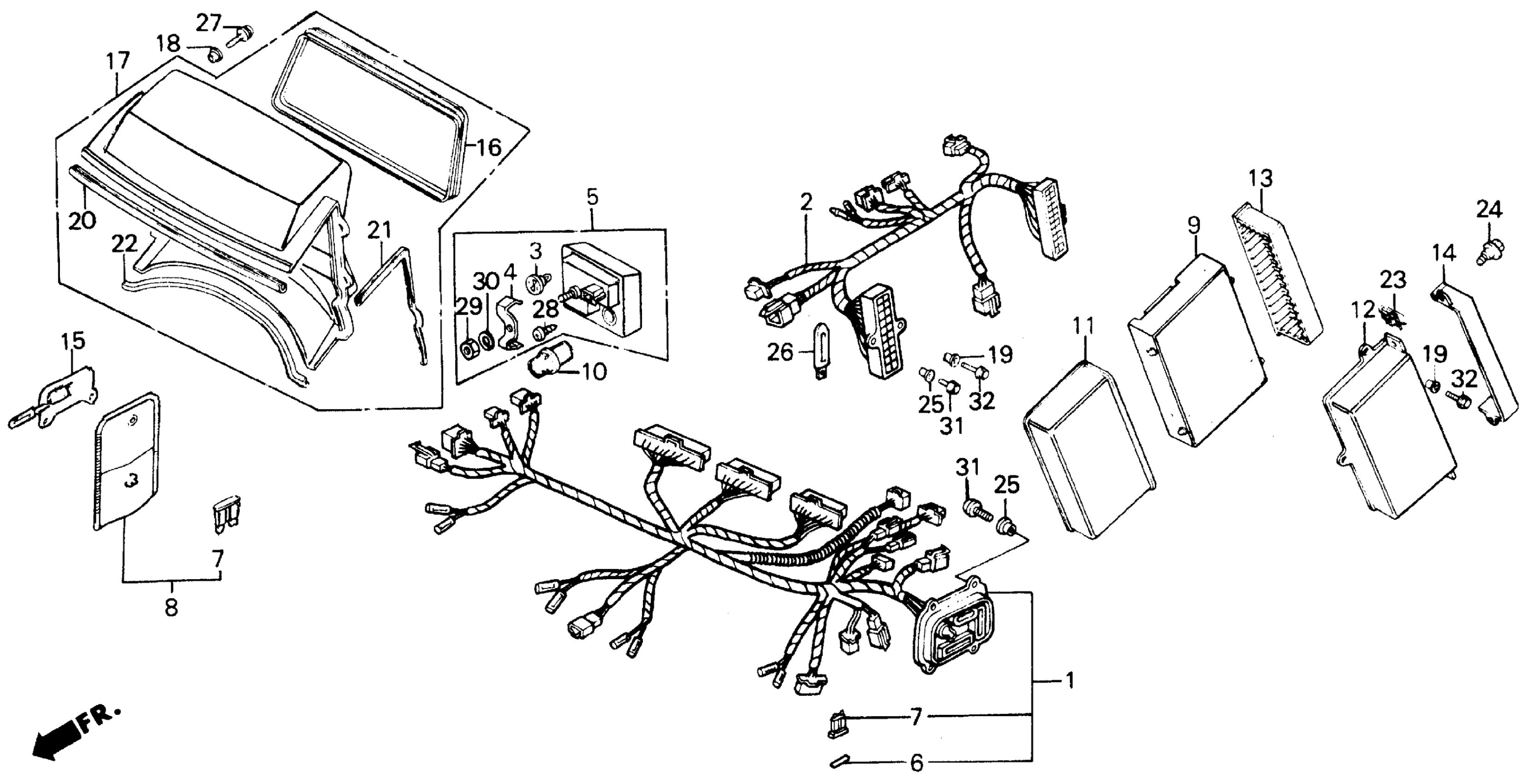

Honda GL1200SEIA (86) GOLD WING ASPENCADE SE-I, USA, VIN# 1HFSC146-GA202331 TO 1HFSC146-GA220355 SE-I FAIRING WIRE HARNESS 86 Diagram
#
Description
Price
1
SUB-WIRE HARNESS, L. FAIRING
32105-ML8-750
Unavailable
2
SUB-WIRE HARNESS, R. FAIRING (L.T.D.)
32111-ML8-750
Unavailable
4
SPRING, VOLTMETER SETTING
37462-MG9-951
Unavailable
5
VOLTMETER ASSY. (NOT AVAILABLE)
37480-MG9-951
Unavailable
6
LABEL, FUSE (3A)
38225-ML8-670
Unavailable
7
FUSE, BLADE (3A)
38230-ML8-000
Unavailable
8
FUSE ASSY., SPARE
38240-ML8-750
Unavailable
9
CONTROLLER, RR. HEIGHT CONTROL (NOT AVAILABLE)
38600-ML8-751
Unavailable
10
LOCK ASSY., RADIO
39351-MG9-871
Unavailable
11
COVER, COIN POCKET (UPPER)
52551-MG9-950
Unavailable
12
BOX, COIN POCKET (UPPER)
52552-MG9-950
Unavailable
13
RUBBER, COIN POCKET COVER (UPPER)
52554-MG9-950
Unavailable
14
COVER, COIN POCKET (UPPER) (NOT AVAILABLE)
52555-MG9-950
Unavailable
15
PLATE, FUSE SETTING
64237-MG9-770
Unavailable
16
RUBBER, METER PANEL This part replaces 64239-MG9-770.
64239-MG9-771
Unavailable
16
RUBBER, METER PANEL
64239-MG9-771
Unavailable
17
PANEL, METER
64240-MG9-950
Unavailable
18
COLLAR, METER PANEL
64243-MG9-870
Unavailable
19
COLLAR, LEG SHIELD SETTING (NOT AVAILABLE)
64263-MA2-000
Unavailable
20
RUBBER, METER PANEL (A) (NOT AVAILABLE)
64271-MG9-770
Unavailable
21
RUBBER, METER PANEL (B) (NOT AVAILABLE)
64272-MG9-770
Unavailable
22
RUBBER, METER PANEL (C)
64273-MG9-770
Unavailable
23
NUT, CLIP (6MM)
64529-MC7-000
Unavailable
24
BOLT, FLANGE (6MM)
90111-GA6-680
Unavailable
