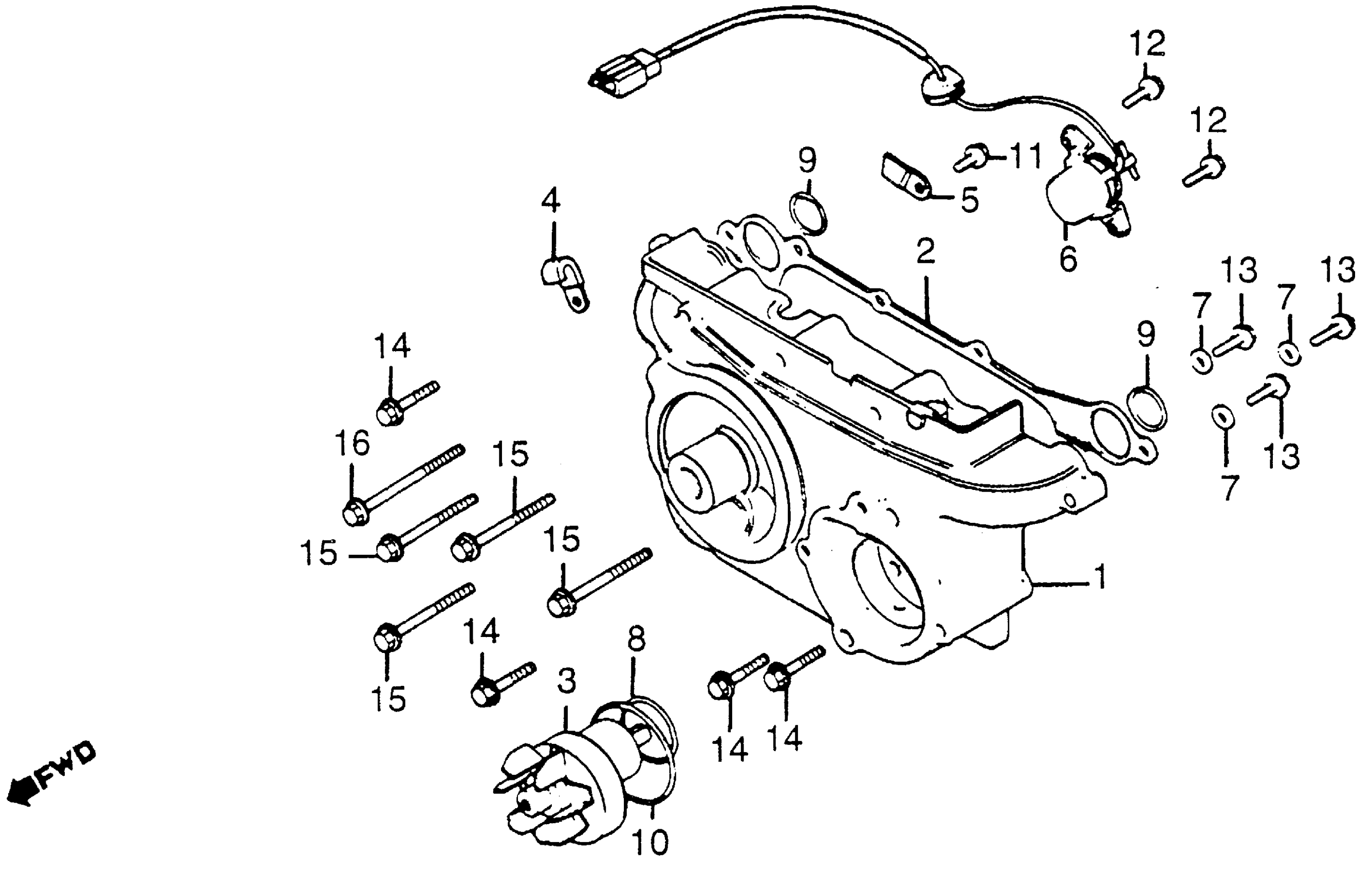

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 TRANSMISSION COVER + WATER PUMP Diagram

COVER, TRANSMISSION This part replaces 11360-MG9-950.

11360-MG9-951

Unavailable

GASKET, TRANSMISSION COVER This part replaces 11391-MG9-000.

11391-MG9-306

Unavailable

GASKET, TRANSMISSION COVER This part replaces 11391-MG9-010.

11391-MG9-306

Unavailable

GASKET, TRANSMISSION COVER This part replaces 11391-MG9-020.

11391-MG9-306

Unavailable

GASKET, TRANSMISSION COVER

11391-MG9-306

Unavailable

WATER PUMP

19200-MG9-681

$231.77

CLAMP, CABLE

32111-323-000

$3.98

CLAMP, WIRE HARNESS This part replaces 32976-107-000.

32976-107-010

$1.97

CLAMP, WIRE HARNESS

32976-107-010

$1.97

SWITCH ASSY., CHANGE (NOT AVAILABLE)

35759-MG9-950

Unavailable

WASHER, SEALING (6MM)

90442-397-000

$2.28

O-RING (37X2.4) (ARAI) GASKET KIT A This part replaces 91303-283-000.

91305-KT7-003

$2.83

O-RING (37X2.4) (ARAI)

91305-KT7-003

$2.83

O-RING (23X2.1) This part replaces 91312-371-003.

91312-371-013

$2.92

O-RING (23X2.1)

91312-371-013

$2.92

O-RING (56X2.4)

91356-706-000

$3.44

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X35) This part replaces 96000-06035-02.

96001-06035-02

$1.79

BOLT, FLANGE (6X35)

96001-06035-02

$1.79

BOLT, FLANGE (6X55) This part replaces 96000-06055-02.

96001-06055-02

$2.36

BOLT, FLANGE (6X70) (NOT AVAILABLE) This part replaces 96000-06070-02.

96001-06070-02

Unavailable

BOLT, FLANGE (6X70) (NOT AVAILABLE)

96001-06070-02

Unavailable
