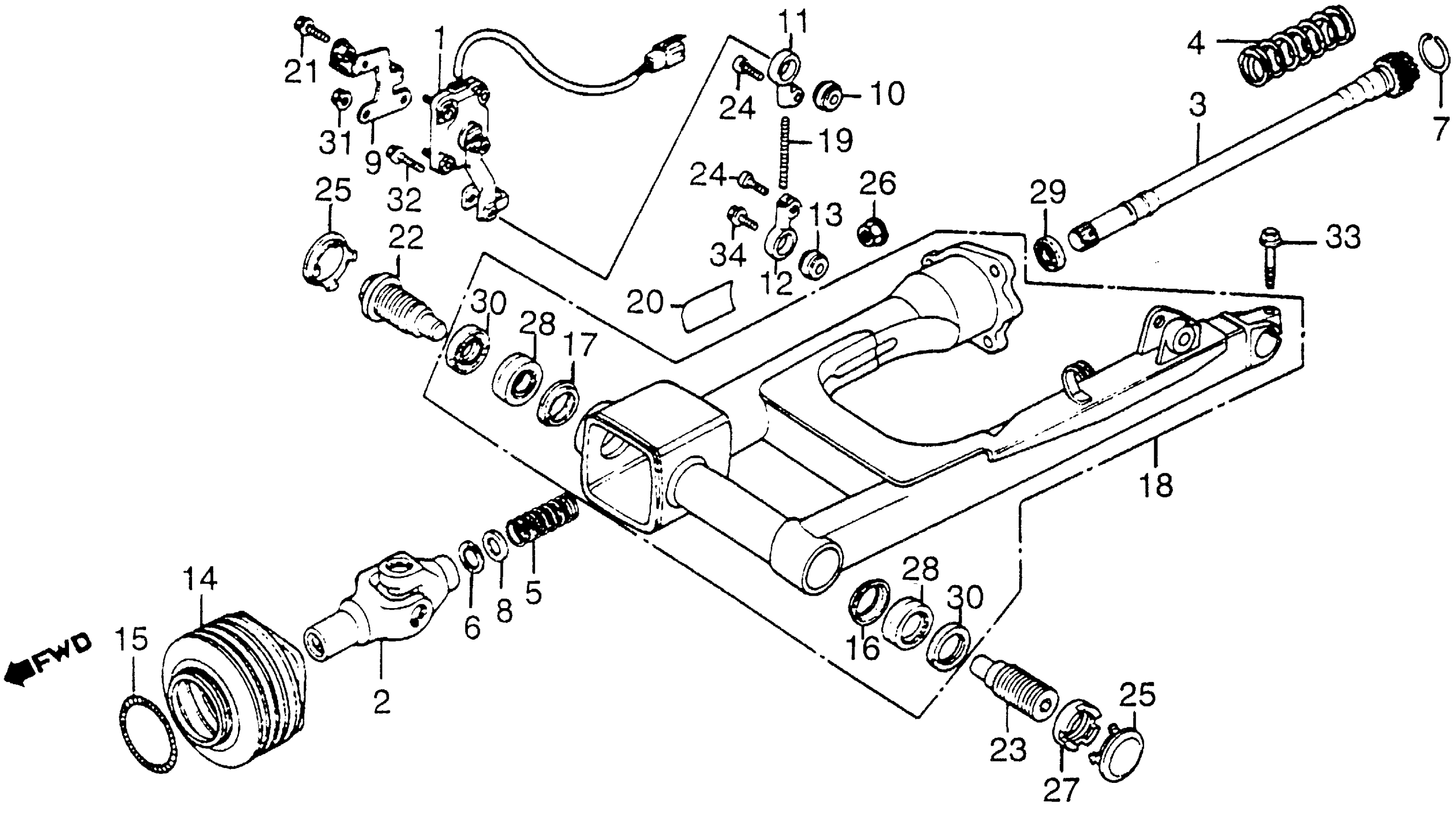

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 SWINGARM + DRIVESHAFT Diagram

#

Description
Price

1

SENSOR ASSY., RR. (NOT AVAILABLE)

38700-MG9-951

Unavailable

2

JOINT, YOKE (NOT AVAILABLE)

40200-MG9-010

Unavailable

3

SHAFT, PROPELLER (NOT AVAILABLE)

40201-MG9-000

Unavailable

4

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

5

SPRING, PROPELLER SHAFT

40215-MG9-000

$7.89

6

CIRCLIP

40219-MG9-000

$4.06

7

RING, STOPPER

40221-MB0-000

$4.53

8

STOPPER, PROPELLER SHAFT

40222-MG9-000

$5.02

9

STAY, SENSOR

50182-MG9-950

Unavailable

10

BUSH, SENSOR ROD (NOT AVAILABLE)

51813-SA5-800

Unavailable

11

EYE, R. SENSOR ROD (NOT AVAILABLE)

51814-SA5-801

Unavailable

12

EYE, L. SENSOR ROD (NOT AVAILABLE)

51815-SA5-801

Unavailable

13

BUSH, SENSOR SETTING

51819-SA5-801

Unavailable

14

BOOT, JOINT

52105-463-010

Unavailable

15

BAND, JOINT BOOT (NOT AVAILABLE)

52106-463-000

Unavailable

16

HOLDER, SWINGARM GREASE

52112-MA1-300

$7.04

17

PLATE, DUST SEAL (NOT AVAILABLE)

52118-MG9-003

Unavailable

18

SWINGARM ASSY. *NH1Z* (BLACK-Z) (NOT AVAILABLE) This part replaces 52120-MG9-950.

52120-ML8-750ZA

Unavailable

18

SWINGARM ASSY. *NH1Z* (BLACK-Z) (NOT AVAILABLE)

52120-ML8-750ZA

Unavailable

19

ROD, SENSOR (NOT AVAILABLE)

52818-MG9-950

Unavailable

20

LABEL, TIRE CAUTION

87505-MG9-930

Unavailable

20

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-MG9-950

Unavailable

21

BOLT, SOCKET (6X12) (NOT AVAILABLE)

90105-460-000

Unavailable

22

BOLT, R. RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-MG9-000

Unavailable

23

BOLT, L. RR. SWINGARM PIVOT (NOT AVAILABLE)

90122-463-000

$33.51

24

BOLT, HEX. SOCKET (6X12)

90170-MJ1-000

$2.98

25

CAP, LOCK NUT (NOT AVAILABLE)

90303-MB9-950

Unavailable

26

NUT, HEX. (8MM)

90309-357-000

$3.40

27

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

28

BEARING, TAPER (30203) This part replaces 91062-415-013.

91121-PH8-961

Unavailable

28

BEARING, TAPER (30203)

91121-PH8-961

Unavailable

29

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

30

DUST SEAL (26X40X5)

91268-463-003

$6.61

31

NUT, FLANGE (6MM)

94050-06080

$1.49

32

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

32

BOLT, FLANGE (8X28) This part replaces 95700-08028-18.

95701-08028-08

$2.06

32

BOLT, FLANGE (8X28)

95701-08028-08

$2.06

33

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

33

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

34

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

34

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

34

BOLT, FLANGE (8X20) This part replaces 95900-08020-00.

95701-08020-00

$1.78
