- GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016
REAR TRUNK

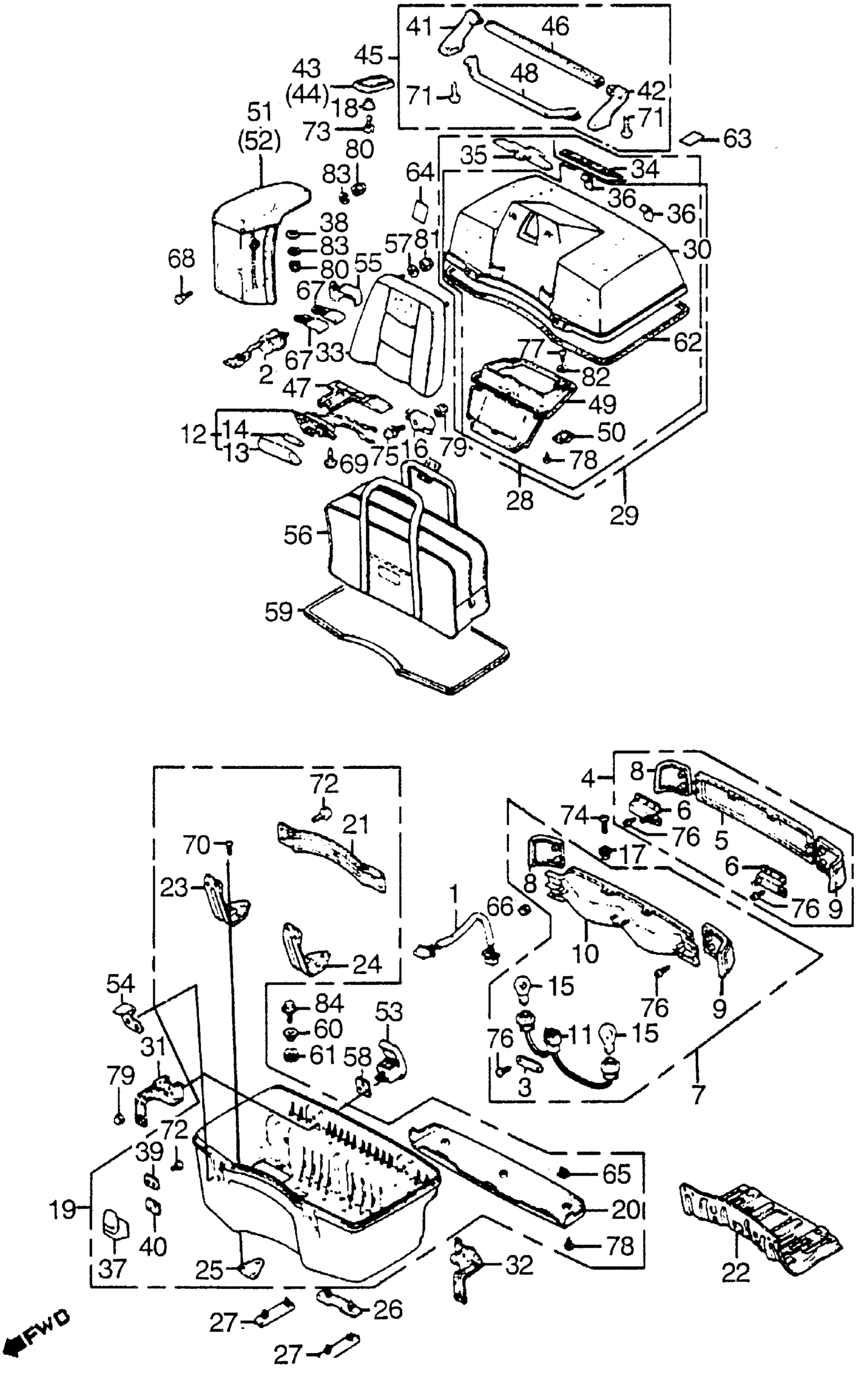

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 REAR TRUNK Diagram
#
1
SUB-WIRE, TRUNK TAILLIGHT (NOT AVAILABLE)
32106-MG9-870
Unavailable
2
BUSH, WIRE
32910-MG9-951
Unavailable
3
STAY
33507-SB0-671
Unavailable
7
TAILLIGHT ASSY., TRUNK (NOT AVAILABLE)
33801-MG9-951
Unavailable
8
REFLECTOR ASSY., TRUNK (NOT AVAILABLE)
33804-MG9-771
Unavailable
9
REFLECTOR ASSY., TRUNK (NOT AVAILABLE)
33805-MG9-771
Unavailable
10
TAILLIGHT SUB-ASSY. (NOT AVAILABLE)
33807-MG9-951
Unavailable
11
SOCKET, TAILLIGHT (NOT AVAILABLE)
33809-MG9-871
Unavailable
12
LIGHT ASSY., TRUNK (NOT AVAILABLE)
34251-MG9-951
Unavailable
13
LENS (NOT AVAILABLE)
34260-538-003
Unavailable
17
COLLAR, FENDER COVER (NOT AVAILABLE)
80112-443-850
Unavailable
19
TRUNK ASSY. (LOWER) *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE) This part replaces 81110-MG9-770ZL.
81111-MG9-770ZL
Unavailable
19
TRUNK ASSY. (LOWER) *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE)
81111-MG9-770ZL
Unavailable
20
COVER, TRUNK (LOWER) *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE)
81112-MG9-770ZL
Unavailable
22
STIFFENER, TRUNK (LOWER) (NOT AVAILABLE)
81113-MG9-950
Unavailable
26
RUBBER, RR. TRUNK CENTER
81118-MG9-770
Unavailable
27
RUBBER, RR. TRUNK (NOT AVAILABLE)
81119-MG9-770
Unavailable
30
TRUNK SET (UPPER) *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE) This part replaces 811A2-MG9-950ZA.
81121-MG9-950ZA
Unavailable
30
TRUNK SET (UPPER) *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE)
81121-MG9-950ZA
Unavailable
31
STIFFENER, R. TRUNK LOCK
81122-MG9-770
Unavailable
33
SEAT, BACK (NOT AVAILABLE)
81125-MG9-950
Unavailable
35
EMBLEM, TRUNK (UPPER)
81128-MG9-950
Unavailable
36
HOOK, TRUNK LOCK
81129-MG9-770
Unavailable
37
HINGE, TRUNK
81130-MG9-770
Unavailable
38
SEAL, TRUNK (UPPER)
81131-MB9-770
Unavailable
39
WASHER, HINGE
81134-MG9-770
Unavailable
41
ARM, R. TRUNK GRIP (NOT AVAILABLE)
81136-MG9-950
Unavailable
43
BASE, R. TRUNK GRIP (NOT AVAILABLE)
81138-MG9-950
Unavailable
44
BASE, L. TRUNK GRIP
81139-MG9-950
Unavailable
45
GRIP ASSY., TRUNK (NOT AVAILABLE)
81140-MG9-950
Unavailable
46
GRIP
81141-MG9-950
Unavailable
47
STAY, TRUNK BOX LIGHT
81142-MG9-950
Unavailable
48
BAR, TRUNK GRIP (NOT AVAILABLE)
81143-MG9-950
Unavailable
49
LID, TRUNK (INNER) (NOT AVAILABLE)
81144-MG9-870
Unavailable
50
STOPPER, LID
81146-MG9-870
Unavailable
51
ARMREST ASSY., R. *R58L* (TYPE1) (ROMANY RED) This part replaces 81154-MG9-950.
81154-MG9-950ZA
Unavailable
51
ARMREST ASSY., R. *R58L* (TYPE1) (ROMANY RED)
81154-MG9-950ZA
Unavailable
52
ARMREST ASSY., L. *R58L* (ROMANY RED) (NOT AVAILABLE) This part replaces 81164-MG9-950.
81164-MG9-950ZA
Unavailable
52
ARMREST ASSY., L. *R58L* (ROMANY RED) (NOT AVAILABLE)
81164-MG9-950ZA
Unavailable
53
LOCK ASSY., TRUNK (NOT AVAILABLE)
81170-MG9-771
Unavailable
54
STOPPER, LIGHT SWITCH This part replaces 81176-MG9-950.
81176-MG9-951
Unavailable
54
STOPPER, LIGHT SWITCH
81176-MG9-951
Unavailable
55
STAY, LIGHT SWITCH
81179-MG9-950
Unavailable
56
BAG, TRUNK (INNER)
81180-MG9-950
Unavailable
57
RUBBER, SADDLEBAG CUSHION (NOT AVAILABLE)
81216-ME2-770
Unavailable
58
PLATE, LOCK SETTING
81223-MG9-770
Unavailable
59
FLOOR MAT, TRUNK (NOT AVAILABLE)
81242-MG9-870
Unavailable
60
COLLAR, SADDLEBAG SETTING
81245-463-770
Unavailable
62
RUBBER, TRUNK SEAL (NOT AVAILABLE)
81420-MG9-770
Unavailable
63
LABEL, TRUNK SADDLEBAG CAUTION
87520-MG9-770
Unavailable
64
LABEL, SIDE POCKET
87525-MB9-870
Unavailable
65
GROMMET, SCREW (4MM) (NOT AVAILABLE)
90108-MG9-770
Unavailable
67
CLIP, L. HARNESS
90655-MG9-950
Unavailable
69
SCREW, PAN (3X8)
93500-03008-0G
Unavailable
