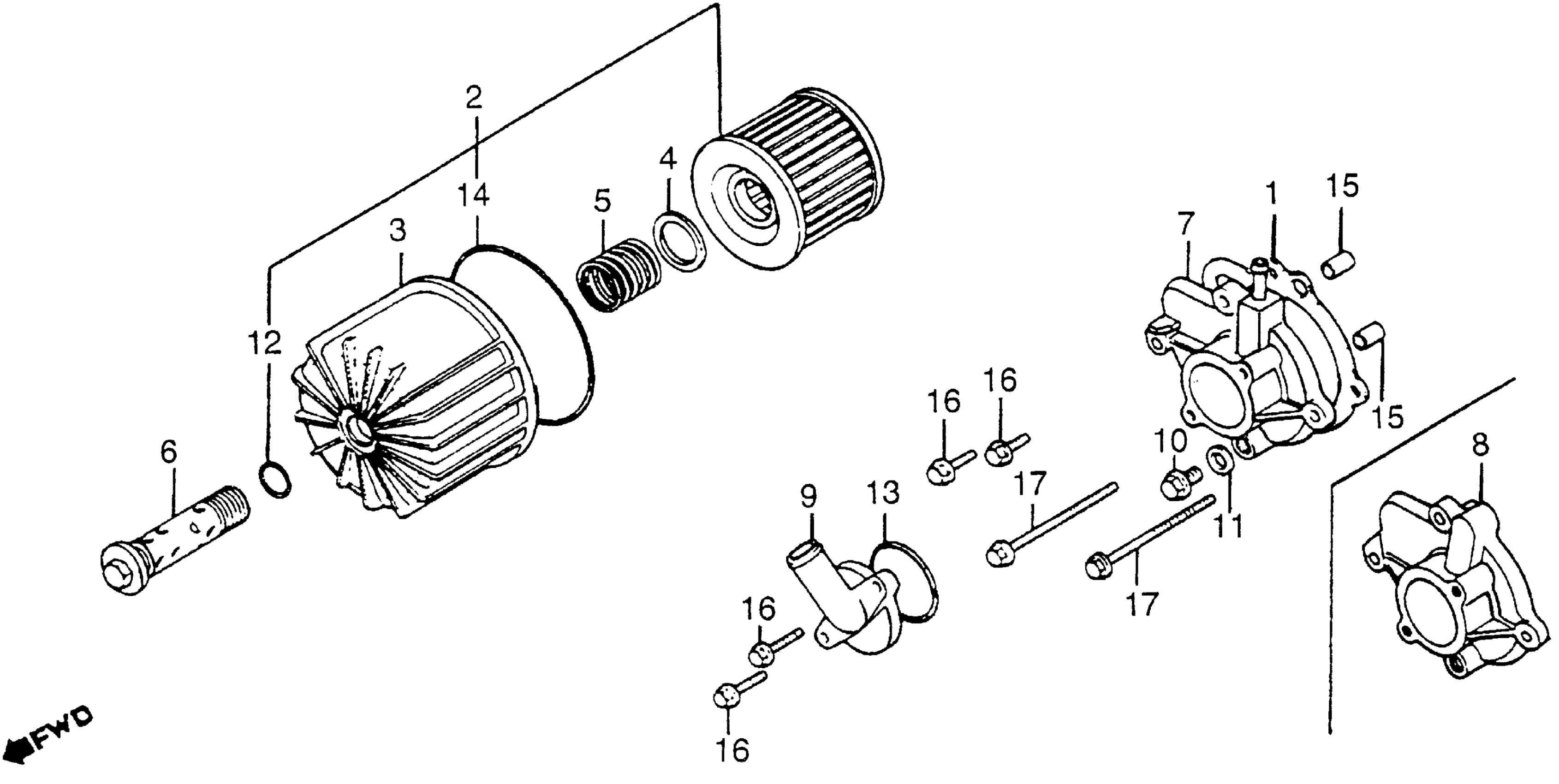

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 OIL FILTER + WATER PUMP COVER Diagram

GASKET, WATER PUMP This part replaces 11396-371-000.

11396-371-306

$6.98

GASKET, WATER PUMP

11396-371-306

$6.98

ELEMENT, OIL FILTER

15410-426-010

$9.30

CASE, OIL FILTER (NOT AVAILABLE)

15411-371-000

Unavailable

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.85

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

COVER, WATER PUMP (NOT AVAILABLE)

19220-MG9-950

Unavailable

CAP, WATER PUMP

19225-371-000

Unavailable

CHECK BOLT, OIL LEVEL This part replaces 90007-371-004.

90035-KZ1-000

Unavailable

WASHER (10.2MM)

90481-463-000

$2.83

O-RING (15X2.5)

91302-377-000

$5.31

O-RING (46X2) This part replaces 91305-216-000.

91305-426-003

$7.19

O-RING (46X2)

91305-426-003

$7.19

O-RING (89X4.5) This part replaces 91316-300-005.

91316-425-003

$4.45

O-RING (89X4.5)

91316-425-003

$4.45

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, FLANGE (6X80)

96000-06080-02

Unavailable
