- GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016
GL1200L WIRE HARNESS 85

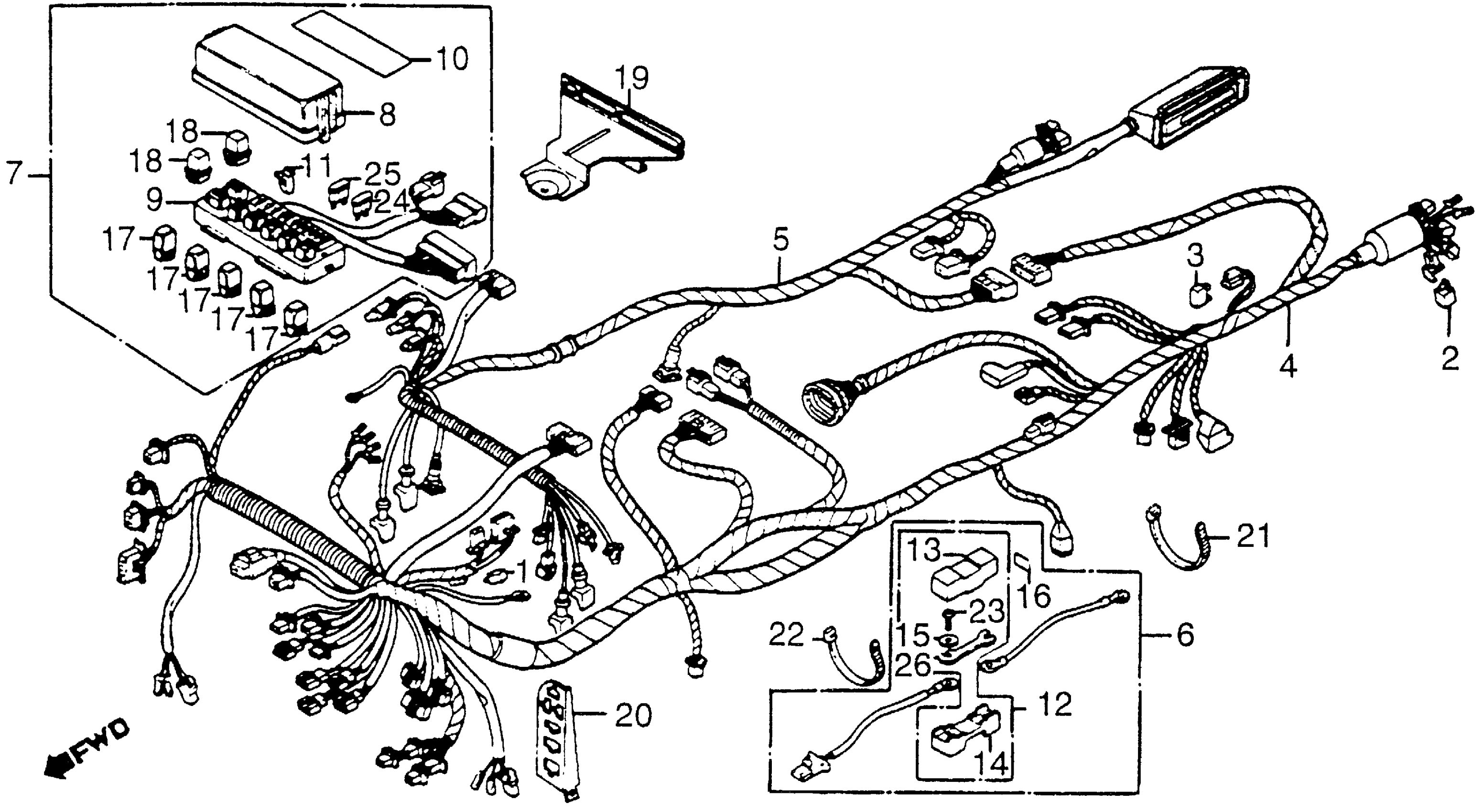

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 GL1200L WIRE HARNESS 85 Diagram
#
Description
Price
1
CONDENSER (NOT AVAILABLE)
30511-MG9-680
Unavailable
4
WIRE HARNESS, L. (NOT AVAILABLE)
32100-MG9-950
Unavailable
5
WIRE HARNESS, R.
32200-MG9-950
Unavailable
6
FUSE ASSY., SUB-MAIN (NOT AVAILABLE)
32402-MG9-950
Unavailable
7
BOX ASSY., RELAY & FUSE (NOT AVAILABLE)
38100-MG9-951
Unavailable
8
COVER, RELAY & FUSE BOX This part replaces 38101-MG9-951.
38101-ML8-701
Unavailable
8
COVER, RELAY & FUSE BOX
38101-ML8-701
Unavailable
9
BASE (NOT AVAILABLE)
38102-MG9-951
Unavailable
10
LABEL, RELAY & FUSE BOX
38104-MG9-951
Unavailable
11
PULLER, FUSE (DAIICHI)
38235-SA5-004
Unavailable
12
BOX, MAIN FUSE
38250-ME9-005
Unavailable
13
COVER (NOT AVAILABLE)
38251-KJ9-000
Unavailable
13
COVER (NOT AVAILABLE) This part replaces 38251-MA6-005.
38251-KJ9-000
Unavailable
14
BASE
38252-ME9-005
Unavailable
15
WASHER, PLAIN (3X10)
38253-422-005
Unavailable
16
LABEL, FUSE (NOT AVAILABLE)
38255-KM4-300
Unavailable
17
RELAY ASSY., CONTROL (20A) This part replaces 38351-KJ9-003.
38360-762-003
Unavailable
17
RELAY ASSY., CONTROL (20A) This part replaces 38351-MG9-951.
38360-762-003
Unavailable
17
RELAY ASSY., CONTROL (20A)
38360-762-003
Unavailable
18
RELAY (10A) This part replaces 38360-MG9-951.
38360-MN5-003
Unavailable
18
RELAY (10A)
38360-MN5-003
Unavailable
19
STAY, CONNECTOR
50197-MG9-950
Unavailable
20
HOLDER D, CONNECTOR
83121-MG9-950
Unavailable
