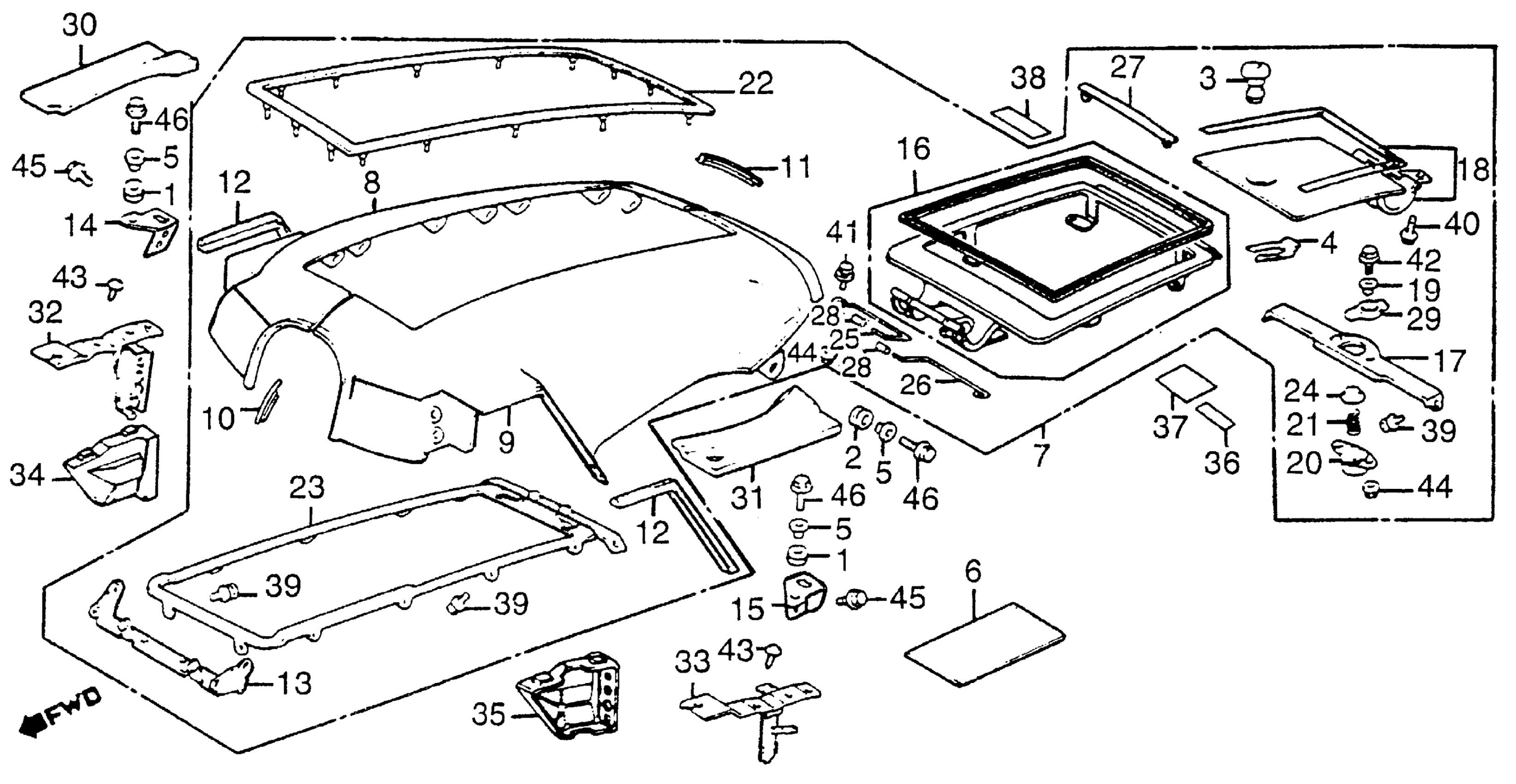

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 GL1200L SHELTER 85 Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

2

CUSHION, FR. FUEL TANK

17611-MB1-000

$3.67

3

LOCK, FILLER LID

37220-439-007

$54.29

4

SPRING, LOCK KEY SETTING

37222-463-000

$8.05

5

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

5

COLLAR, RR. FENDER (NOT AVAILABLE)

61105-428-000

Unavailable

6

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

7

SHELTER ASSY. *YR126M* (SUN FLASH GOLD METALLIC)

83100-MG9-950ZA

Unavailable

8

SHELTER, R. SIDE *YR126M* (SUN FLASH GOLD METALLIC)

83101-MG9-950ZA

Unavailable

9

SHELTER, L. SIDE *YR126M* (SUN FLASH GOLD METALLIC)

83102-MG9-950ZA

Unavailable

10

SPACER, FR. SHELTER (NOT AVAILABLE)

83105-MG9-000

Unavailable

11

SPACER, RR. SHELTER (NOT AVAILABLE)

83106-MG9-000

Unavailable

12

RUBBER, SHELTER SIDE (NOT AVAILABLE)

83108-MG9-770

Unavailable

13

FRAME A, SHELTER

83111-MG9-950

Unavailable

14

STAY, R. SHELTER

83113-MG9-770

Unavailable

15

STAY, L. SHELTER

83114-MG9-770

Unavailable

16

SHELTER, TOP

83115-MG9-950

Unavailable

17

FRAME B, SHELTER

83116-MG9-000

Unavailable

18

LID, SHELTER *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE)

83117-MG9-950ZA

Unavailable

19

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

20

HOLDER, SPRING (NOT AVAILABLE)

83123-463-000

Unavailable

21

SPRING, SHELTER LID (NOT AVAILABLE)

83124-463-000

Unavailable

22

WEATHERSTRIP, SHELTER (NOT AVAILABLE)

83127-MG9-000

Unavailable

23

DRIP, SHELTER

83130-MG9-950

Unavailable

24

COVER, SPRING (NOT AVAILABLE)

83135-463-000

Unavailable

25

SPRING A, TOP SHELTER OPENING (NOT AVAILABLE)

83137-463-000

Unavailable

26

SPRING B, TOP SHELTER OPENING (NOT AVAILABLE)

83138-463-000

Unavailable

27

RUBBER, TOP SHELTER TAIL (NOT AVAILABLE)

83139-MG9-000

Unavailable

28

ROLLER, OPENER SPRING (NOT AVAILABLE)

83140-463-000

Unavailable

29

LOCK, TOP SHELTER

83141-MG9-000

Unavailable

30

PANEL, R. FR. BLIND *R58L* (TYPE1) (ROMANY RED) (NOT AVAILABLE)

83171-MG9-770ZA

Unavailable

30

PANEL, R. FR. BLIND *R58L* (TYPE1) (ROMANY RED) (NOT AVAILABLE) This part replaces 83171-MG9-950.

83171-MG9-770ZA

Unavailable

31

PANEL, L. FR. BLIND *R58L* (TYPE1) (ROMANY RED) (NOT AVAILABLE) This part replaces 83172-MG9-950.

83172-MG9-770ZA

Unavailable

32

STAY, R. FR. BLIND SETTING

83901-MG9-950

Unavailable

33

STAY, L. FR. BLIND SETTING

83902-MG9-950

Unavailable

34

COVER, R. CONNECTOR HOLDER

83910-MG9-950

Unavailable

35

COVER, L. CONNECTOR HOLDER (NOT AVAILABLE)

83911-MG9-770

Unavailable

36

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

37

MARK, ACCESSORIES & LOADING CAUTION

87512-461-770

Unavailable

38

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-181-760.

87560-181-760ZE

$3.95

38

LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87560-181-760ZD

Unavailable

38

MARK, DRIVE CAUTION (TYPEB)

87560-181-760ZE

$3.95

39

BOLT-WASHER (6X10)

93401-06010-08

$1.62

39

BOLT-WASHER (6X10) This part replaces 93491-06010-08.

93401-06010-08

$1.62

40

BOLT-WASHER (6X12)

93401-06012-00

$1.55

40

BOLT-WASHER (6X12) This part replaces 93491-06012-00.

93401-06012-00

$1.55

41

BOLT-WASHER (6X16)

93401-06016-00

$1.55

41

BOLT-WASHER (6X16) This part replaces 93491-06016-00.

93401-06016-00

$1.55

42

BOLT-WASHER (6X20)

93401-06020-07

$1.62

42

BOLT-WASHER (6X20) This part replaces 93491-06020-07.

93401-06020-07

$1.62

43

SCREW, TAPPING (5X12)

93903-25280

$1.49

44

NUT, FLANGE (6MM)

94050-06080

$1.49

45

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

45

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

46

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

46

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
