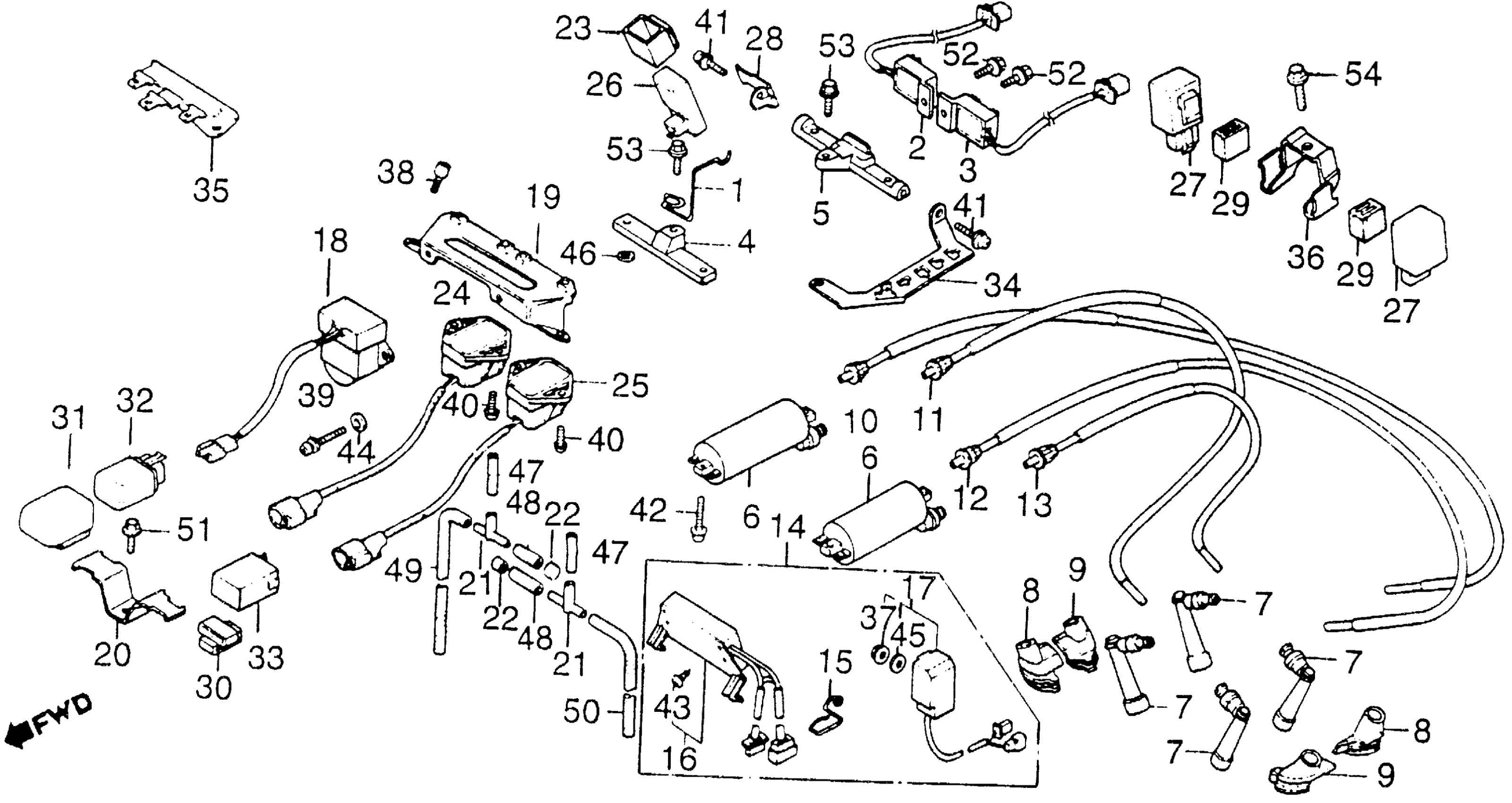

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 GL1200L IGNITION COIL + RECTIFIER + SENSOR 85 Diagram

#

Description
Price

1

GUIDE, THROTTLE CABLE

17925-MG9-950

Unavailable

2

UNIT ASSY., R. SPARK (NOT AVAILABLE)

30400-MG9-950

Unavailable

3

UNIT ASSY., L. SPARK (NOT AVAILABLE)

30401-MG9-950

Unavailable

4

STAY A, IGNITION COIL

30501-MG9-950

Unavailable

5

STAY B, IGNITION COIL

30502-MG9-950

Unavailable

6

COIL, IGNITION

30510-MA6-013

$162.61

7

CAP ASSY. This part replaces 30700-KR3-670.

30700-KR3-671

$17.79

7

CAP ASSY. This part replaces 30700-MB9-153.

30700-KR3-671

$17.79

8

SEAL, R. SUPPRESSOR

30705-MG9-770

Unavailable

9

SEAL, L. SUPPRESSOR

30706-MG9-770

Unavailable

10

WIRE SET, IGNITION (1-1)

30750-MG9-P00

$21.78

10

WIRE SET, IGNITION (1-1) This part replaces 30750-MG9-405.

30750-MG9-P00

$21.78

10

WIRE SET, IGNITION (1-1) This part replaces 30751-MG9-000.

30750-MG9-P00

$21.78

11

WIRE SET, IGNITION (2-2)

30750-MG9-P00

$21.78

11

WIRE SET, IGNITION (1-1) This part replaces 30750-MG9-405.

30750-MG9-P00

$21.78

11

WIRE SET, IGNITION (1-1) This part replaces 30752-MG9-000.

30750-MG9-P00

$21.78

12

WIRE SET, IGNITION (3-3)

30750-MG9-P00

$21.78

12

WIRE SET, IGNITION (1-1) This part replaces 30750-MG9-405.

30750-MG9-P00

$21.78

12

WIRE SET, IGNITION (1-1) This part replaces 30753-MG9-000.

30750-MG9-P00

$21.78

13

WIRE SET, IGNITION (4-4)

30750-MG9-P00

$21.78

13

WIRE SET, IGNITION (1-1) This part replaces 30750-MG9-405.

30750-MG9-P00

$21.78

13

WIRE SET, IGNITION (1-1) This part replaces 30754-MG9-000.

30750-MG9-P00

$21.78

14

FILTER KIT, RADIO NOISE | (Optional).

31610-MG9-950

Unavailable

15

HOLDER, CONNECTOR (8P) | (Optional).

31612-ML8-750

Unavailable

16

FILTER, REGULATE RECTIFIER (NOT AVAILABLE) | (Optional).

31620-ML8-750

Unavailable

17

FILTER, LINE | (Optional).

31630-ML8-770

Unavailable

18

SENSOR ASSY., STOP (NOT AVAILABLE)

35160-MG9-950

Unavailable

19

STAY, SENSOR

35165-MG9-950

Unavailable

20

STAY, CANCEL UNIT

35228-MG9-680

Unavailable

21

JOINT, THREE WAY

36010-PA6-004

Unavailable

22

PLUG, SEALING This part replaces 36034-PD1-000.

36034-PM6-901

Unavailable

23

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.08

24

SENSOR, L. PRESSURE BOOST (NOT AVAILABLE) This part replaces 36171-MG9-951.

36172-MG9-951

$312.58

25

SENSOR, L. PRESSURE BOOST (NOT AVAILABLE)

36172-MG9-951

$312.58

26

CHECK UNIT, PILOT LAMP

37640-MB1-701

Unavailable

27

RELAY, TURN SIGNAL (DENSO) This part replaces 38301-MG9-672.

38301-MBW-D21

$41.70

28

STAY, TURN SIGNAL RELAY

38305-MG9-950

Unavailable

29

SUSPENSION, TURN SIGNAL RELAY (DENSO)

38306-GE8-008

$4.32

30

SUSPENSION, TURN SIGNAL RELAY

38306-ME9-771

Unavailable

31

SUSPENSION, MAIN RELAY (NOT AVAILABLE)

38506-MG9-951

Unavailable

31

SUSPENSION, MAIN RELAY (NOT AVAILABLE) This part replaces 38506-MG9-952.

38506-MG9-951

Unavailable

32

RELAY, STARTER (MATSUSHITA)

38501-GAM-007

$36.90

32

RELAY, STARTER (MATSUSHITA) This part replaces 38501-GN2-003.

38501-GAM-007

$36.90

32

RELAY, STARTER (MATSUSHITA) This part replaces 38520-MG9-951.

38501-GAM-007

$36.90

33

RELAY, POSITION

38601-MB3-671

Unavailable

34

HOLDER A, CONNECTOR

50210-MG9-950

Unavailable

35

HOLDER, CONNECTOR (C)

50212-MG9-950

Unavailable

36

HOLDER, RELAY

50230-MG9-950

Unavailable

37

NUT, FLANGE CAP (5MM) (NOT AVAILABLE) | (Optional).

90105-MG9-871

Unavailable

38

BOLT, SOCKET (6X12) (NOT AVAILABLE)

90105-460-000

Unavailable

39

BOLT, RECESSED (4X18) This part replaces 92300-04020-0A.

92301-04018-0A

$0.99

39

BOLT, RECESSED (4X18)

92301-04018-0A

$0.99

40

SCREW, PAN (5X12)

93500-05012-0G

$0.83

41

SCREW-WASHER (6X12)

93892-06012-08

$1.16

42

SCREW-WASHER (6X28)

93892-06028-08

Unavailable

43

SCREW, TAPPING (3X12) | (Optional).

93901-22320

$0.52

44

WASHER, PLAIN (4MM)

94101-04000

$0.90

45

WASHER, PLAIN (5MM) | (Optional).

94101-05700

Unavailable

46

WASHER, PLAIN (6MM)

94101-06800

Unavailable

47

BULK HOSE, VACUUM (3.5X1000) (3.5X50)

95005-35001-20M

$8.69

47

BULK HOSE, VACUUM (3.5X1000) (3.5X75)

95005-35001-20M

$8.69

48

BULK HOSE, VACUUM (3.5X1000) (3.5X100)

95005-35001-20M

$8.69

49

BULK HOSE, VACUUM (3.5X1000) (3.5X360)

95005-35001-20M

$8.69

49

BULK HOSE, VACUUM (3.5X1000) (3.5X360)

95005-35001-20M

$8.69

49

BULK HOSE, VACUUM (3.5X1000) (3.5X360)

95005-35001-20M

$8.69

50

BULK HOSE, VACUUM (3.5X1000) (3.5X360)

95005-35001-20M

$8.69

50

BULK HOSE, VACUUM (3.5X1000) (3.5X360)

95005-35001-20M

$8.69

51

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.48

51

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

52

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.48

52

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

53

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.48

53

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

54

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$1.91

54

BOLT, FLANGE (8X28)

95701-08028-08

$1.91
