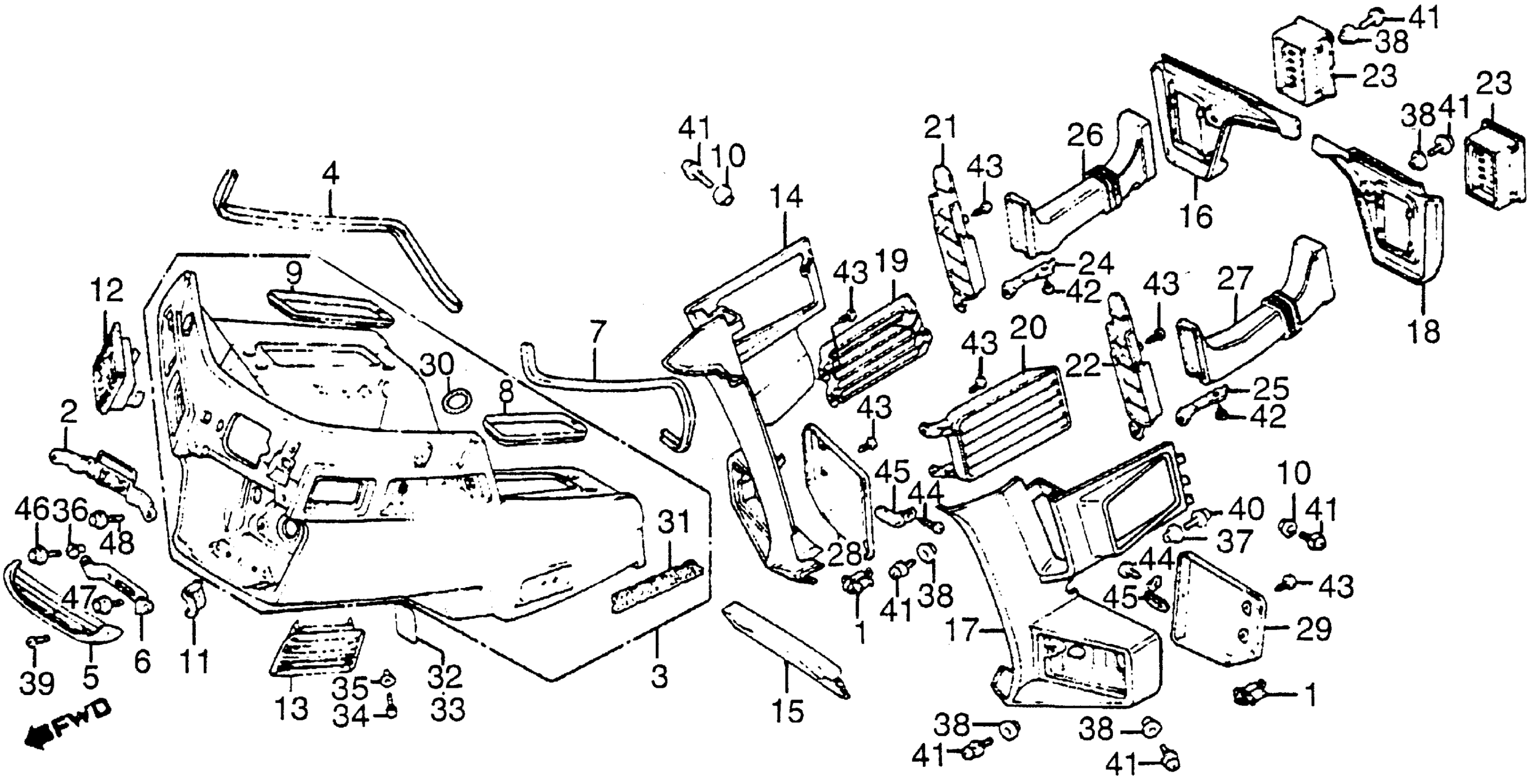

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 GL1200L FAIRING 85 Diagram

CLIP, WIRE

32913-MG9-950

$1.50

STAY, GARNISH (B)

64112-MG9-950

Unavailable

FAIRING *YR126M* (SUN FLASH GOLD METALLIC)

64200-MG9-950ZA

Unavailable

MOLDING, R. COWL TRIM *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE)

64204-MG9-770ZL

Unavailable

GRILLE, FR. *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE)

64205-MG9-770ZL

Unavailable

STAY, HEADLIGHT GRILLE (NOT AVAILABLE)

64206-MG9-770

Unavailable

MOLDING, L. COWL TRIM *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE)

64214-MG9-770ZL

Unavailable

RUBBER, L. POCKET SEAL (NOT AVAILABLE)

64249-MG9-770

Unavailable

RUBBER, R. POCKET SEAL

64250-MG9-770

Unavailable

COLLAR, LEG SHIELD SETTING (NOT AVAILABLE)

64263-MA2-000

Unavailable

GROMMET, FAIRING

64267-MG9-770

Unavailable

LOUVER, R. FR.

64277-MG9-680

Unavailable

LOUVER, L. FR. (NOT AVAILABLE)

64278-MG9-680

$19.18

COWL, R. (LOWER) *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE)

64280-MG9-950ZA

Unavailable

CROSSBAR, COWL (LOWER) *YR126M* (SUN FLASH GOLD METALLIC)

64285-MG9-950ZA

Unavailable

COVER, R. COWL (LOWER) (INNER) *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE)

64288-MG9-950ZA

Unavailable

COWL, L. (LOWER) *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE)

64290-MG9-950ZA

Unavailable

COVER, L. COWL (LOWER) (INNER) *YR126M* (SUN FLASH GOLD METALLIC) (NOT AVAILABLE)

64298-MG9-950ZA

Unavailable

LOUVER, R. COWL SIDE (LOWER)

64312-MG9-950

Unavailable

LOUVER, L. COWL SIDE (LOWER)

64313-MG9-950

Unavailable

INLET, R. COWL AIR (LOWER) (NOT AVAILABLE)

64314-MG9-950

Unavailable

INLET, L. COWL AIR (LOWER)

64315-MG9-950

Unavailable

OUTLET ASSY., FRESH AIR *R58L* (TYPE1) (ROMANY RED) This part replaces 64320-MG9-950.

64320-MG9-950ZA

Unavailable

OUTLET ASSY., FRESH AIR *R58L* (TYPE1) (ROMANY RED)

64320-MG9-950ZA

Unavailable

STAY, R. DUCT

64326-MG9-950

Unavailable

STAY, L. DUCT

64327-MG9-950

Unavailable

DUCT, R. COWL (LOWER) (NOT AVAILABLE)

64328-MG9-950

Unavailable

DUCT, L. COWL (LOWER) (NOT AVAILABLE)

64329-MG9-950

Unavailable

BLIND PANEL, R. CORNER LAMP

64330-MG9-950

Unavailable

BLIND PANEL, L. CORNER LAMP

64331-MG9-950

Unavailable

SEAL, DOOR HOLE (30MM) (CIRCLE)(BLACK)

75826-605-300

$3.35

SEAL, DOOR HOLE (30MM) (BLACK)

91619-SE0-000

$3.35

EMBLEM, R. FAIRING SIDE This part replaces 87108-MB0-820.

87108-MB9-770

Unavailable

EMBLEM, R. FAIRING SIDE

87108-MB9-770

Unavailable

SEAL, R. FAIRING BLIND

87118-MG9-770

Unavailable

SEAL, L. FAIRING BLIND

87119-MG9-770

Unavailable

BOLT, SOCKET (8X40)

90117-MC7-000

Unavailable

COLLAR, COWL SETTING (NOT AVAILABLE)

90120-MG9-770

Unavailable

COLLAR, COWL SETTING (NOT AVAILABLE)

90120-463-770

Unavailable

WASHER, HEADLIGHT CASE SETTING

90520-134-000

$2.66

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

SCREW, PAN (4X10)

93500-04010-0G

$1.49

SCREW, PAN (5X12)

93500-05012-0G

$1.49

SCREW, PAN (6X16)

93500-06016-0G

$1.49

SCREW, TAPPING (4X8)

93903-24110

$1.49

SCREW, TAPPING (4X10)

93903-24220

$1.49

SCREW, TAPPING (4X16)

93903-24480

$1.49

CLIP (3X40)

94591-34000

Unavailable

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

BOLT, FLANGE (6X20) This part replaces 95900-06020-08.

95701-06020-08

$1.49

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

BOLT, FLANGE (6X22) This part replaces 95900-06022-08.

95701-06022-08

$1.72

BOLT, FLANGE (6X28) This part replaces 95800-06028-08.

95801-06028-08

$1.73

BOLT, FLANGE (6X28)

95801-06028-08

$1.73

BOLT, FLANGE (6X28) This part replaces 95900-06028-08.

95801-06028-08

$1.73
