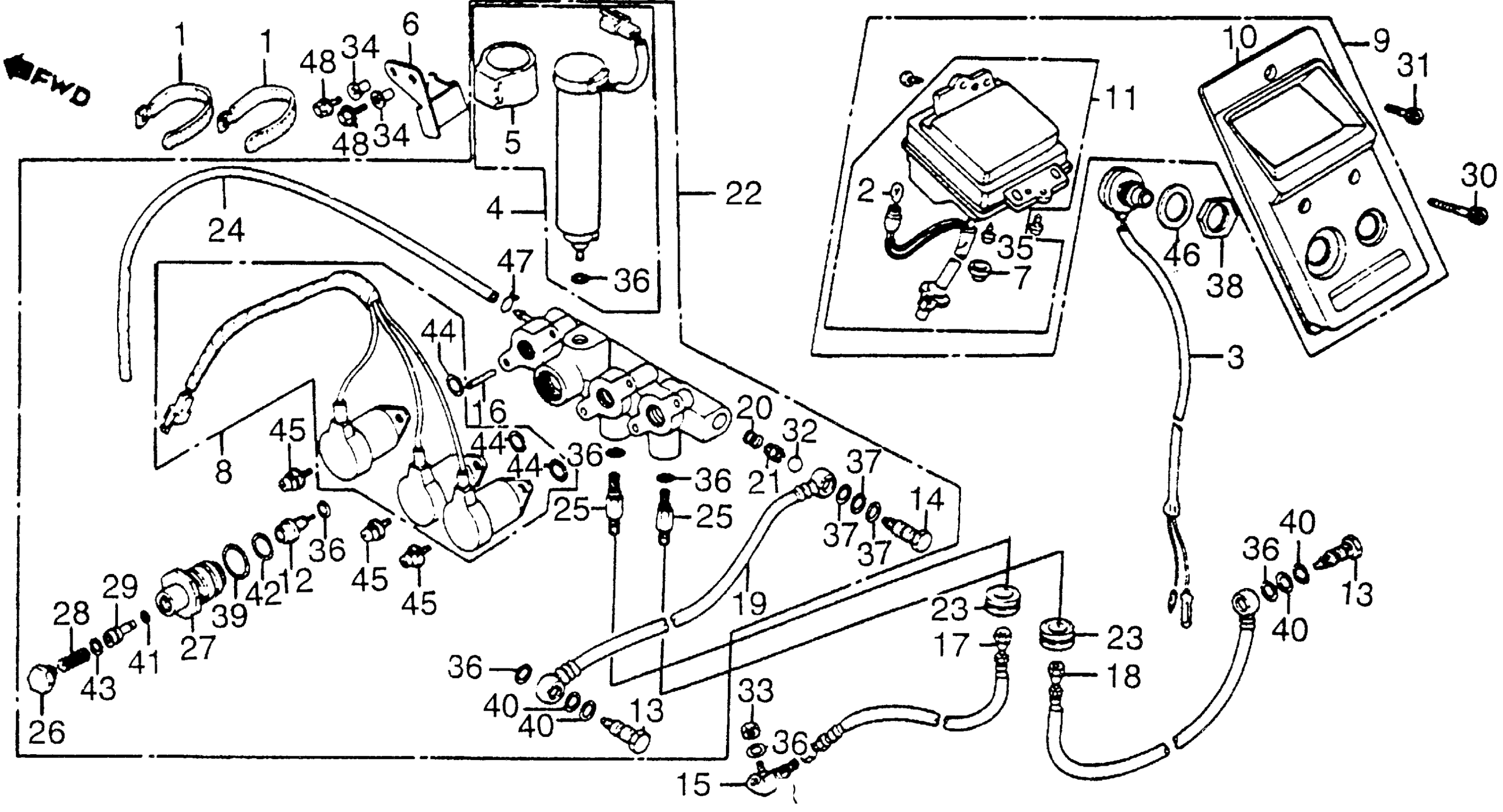

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 GL1200L AIR DISTRIBUTOR Diagram

#

Description
Price

1

BAND, WIRE

32161-438-000

$4.13

2

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

3

SWITCH ASSY., PUMP

35270-MG9-950

Unavailable

4

SENSOR, AIR PRESSURE (NOT AVAILABLE)

35660-MG9-951

Unavailable

5

SETTING, AIR SENSOR

35665-MB9-950

Unavailable

6

STAY, PRESSURE SENSOR

36145-MG9-950

Unavailable

7

CAP A

37116-KG4-008

Unavailable

8

VALVE ASSY., LEVELING (NOT AVAILABLE)

38500-MG9-951

Unavailable

9

DISPLAY ASSY., LEVELING

38800-MG9-951

Unavailable

10

VISOR (NOT AVAILABLE)

38801-MG9-951

Unavailable

11

DISPLAY, LEVELING

38802-MG9-951

Unavailable

12

VALVE, AIR

51458-MG9-951

Unavailable

13

BOLT, AIR HOSE

52628-MG9-871

Unavailable

14

BOLT, AIR HOSE

52628-MG9-951

Unavailable

15

JOINT ASSY., AIR HOSE (NOT AVAILABLE)

52630-MG9-950

Unavailable

16

PIN

52637-MG9-951

Unavailable

17

HOSE, AIR (B) (NOT AVAILABLE)

52640-MG9-951

Unavailable

18

HOSE, AIR (D) (NOT AVAILABLE)

52650-MG9-951

Unavailable

19

HOSE, AIR (E)

52660-MG9-951

Unavailable

20

SPRING, VALVE (NOT AVAILABLE)

52723-MB9-870

Unavailable

21

WASHER, CAP This part replaces 52726-MB9-870.

52726-MB9-871

Unavailable

21

WASHER, CAP

52726-MB9-871

Unavailable

22

DISTRIBUTOR ASSY., AIR (NOT AVAILABLE)

52730-MG9-951

Unavailable

23

GROMMET, AIR DISTRIBUTOR (NOT AVAILABLE)

52731-MG9-950

Unavailable

24

HOSE, DRAIN RELIEF VALVE

52733-MG9-950

Unavailable

25

CONNECTOR (NOT AVAILABLE)

52737-MG9-871

Unavailable

26

BOLT, PLUG

52741-MG9-951

Unavailable

27

CYLINDER

52742-MG9-951

Unavailable

28

SPRING, COIL

52743-MG9-951

Unavailable

29

ROD, PUSH

52744-MG9-951

Unavailable

30

BOLT, SOCKET (4X30) (NOT AVAILABLE)

90126-MG9-950

Unavailable

31

BOLT, SOCKET (4X15) (NOT AVAILABLE)

90127-MG9-950

Unavailable

32

BALL, STEEL (10)

90211-MB9-870

Unavailable

33

NUT, LOCK (12MM)

90301-MB9-950

$3.11

34

WASHER, NUMBER BRACKET SETTING

90402-GB0-900

$3.52

35

SCREW, TAPPING (2.6X10)

90893-MG9-951

Unavailable

36

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

36

O-RING (5.8X1.9)

91305-323-000

$2.92

36

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

37

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

37

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

38

NUT, PUMP SWITCH SETTING (NOT AVAILABLE)

91342-MG9-950

Unavailable

39

O-RING (19.5X1.5)

91301-965-003

Unavailable

39

O-RING (19.5X1.5) This part replaces 91351-MG9-951.

91301-965-003

Unavailable

40

O-RING (7MM) This part replaces 91351-671-003.

91351-671-004

Unavailable

40

O-RING (7MM)

91351-671-004

Unavailable

41

O-RING (2.5X1.5) (NOT AVAILABLE)

91352-MG9-951

Unavailable

42

O-RING (13.5X1.5) (NOT AVAILABLE)

91353-MG9-951

Unavailable

43

O-RING (7.8X1.9) (NOT AVAILABLE)

91354-MG9-951

Unavailable

44

O-RING, LEVELING VALVE

91357-MG9-951

Unavailable

45

SCREW-WASHER (5X12)

93893-05012-08

$1.49

45

SCREW-WASHER (5X12) This part replaces 93893-05012-18.

93893-05012-08

$1.49

46

WASHER, PLAIN (20MM)

94102-20700

Unavailable

47

CLIP, TUBE (C8)

95002-45000

$1.49

48

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

48

BOLT, FLANGE (6X12) This part replaces 95900-06012-07.

95701-06012-07

$1.62
