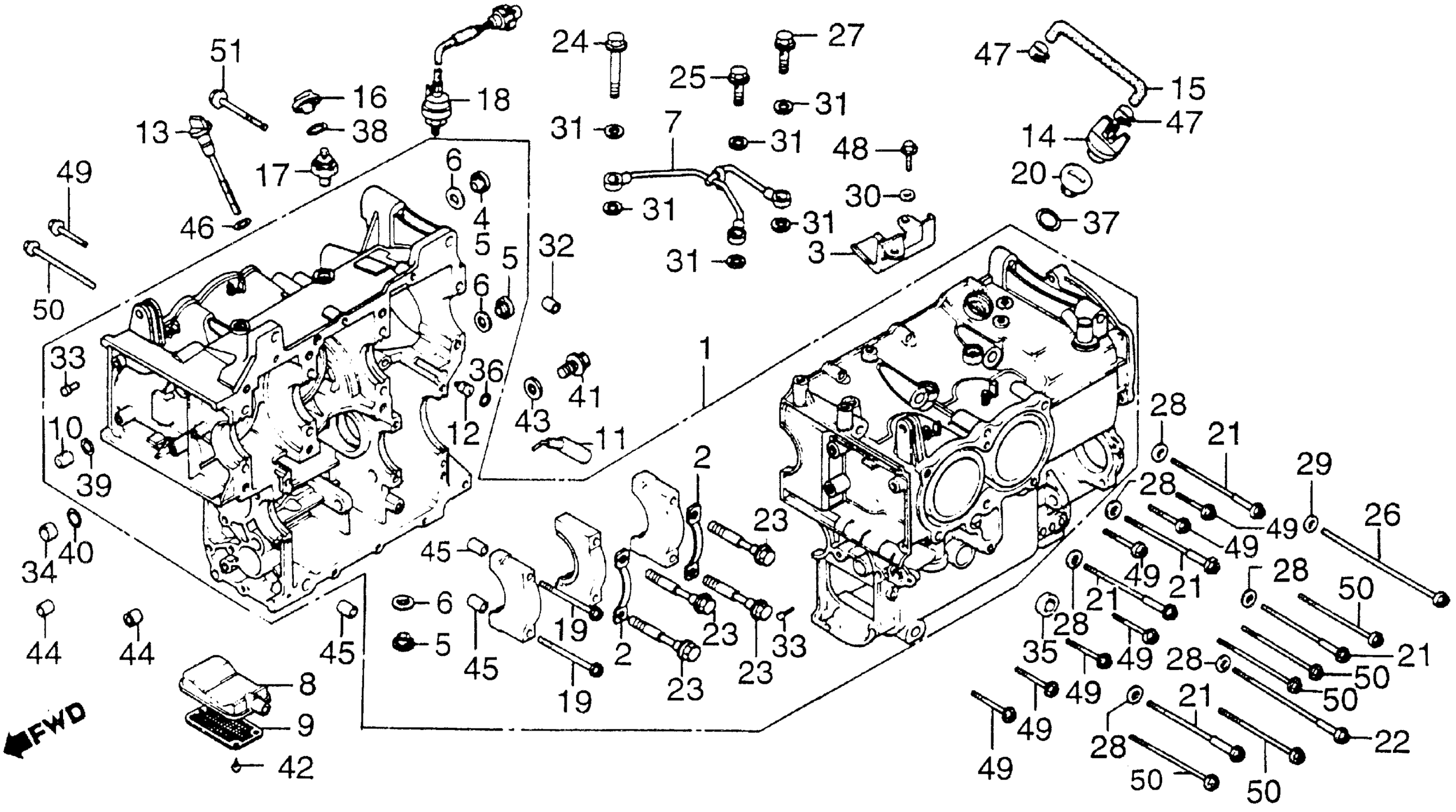

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK ASSY., CYLINDER

11000-MG9-950

Unavailable

2

PLATE, BEARING CAP

11125-MG9-000

Unavailable

3

GUIDE, OIL (NOT AVAILABLE)

11220-371-000

Unavailable

4

BOLT, SPECIAL (18MM)

12206-MG9-950

Unavailable

5

BOLT, SEALING (18MM)

12206-ML8-300

$9.11

5

BOLT, SEALING (18MM) This part replaces 12206-371-305.

12206-ML8-300

$9.11

6

WASHER, SEALING BOLT

12207-611-300

Unavailable

7

PIPE, OIL PASSAGE

12230-MG9-950

Unavailable

8

CASE, OIL STRAINER (NOT AVAILABLE)

15151-MG9-000

Unavailable

9

SCREEN, OIL STRAINER (NOT AVAILABLE)

15152-371-000

Unavailable

10

PLUG, OIL TUBE (NOT AVAILABLE)

15337-300-010

Unavailable

11

NOZZLE, OIL SUPPLY (NOT AVAILABLE)

15520-371-000

Unavailable

12

ORIFICE, CHAIN

15530-371-000

Unavailable

13

DIPSTICK, OIL

15650-MG9-000

Unavailable

14

CAP, TIMING HOLE

15652-MG9-950

Unavailable

15

TUBE, OIL RETURN

15655-MG9-950

Unavailable

16

CAP, LEVEL GAUGE (NOT AVAILABLE)

25611-371-000

Unavailable

18

PRESSURE UNIT, OIL (NOT AVAILABLE)

37850-MG9-951

Unavailable

19

BOLT, FLANGE (10X82) (NOT AVAILABLE)

90003-371-013

Unavailable

21

BOLT, FLANGE (10X120) This part replaces 90009-371-003.

90009-371-015

$10.71

21

BOLT, FLANGE (10X120) This part replaces 90009-371-005.

90009-371-015

$10.71

21

BOLT, FLANGE (10X120) (SATO)

90009-371-015

$10.71

22

BOLT, FLANGE (10X166) (TOKA1) (NOT AVAILABLE)

90010-371-003

Unavailable

22

BOLT, FLANGE (10X166) (SATO) (NOT AVAILABLE)

90010-371-005

Unavailable

23

BOLT, FLANGE (12X90)

90024-MG9-000

Unavailable

24

BOLT A, OIL

90025-MG9-000

Unavailable

25

BOLT B, OIL (NOT AVAILABLE)

90026-MG9-000

Unavailable

26

BOLT, FLANGE (8X175) (NOT AVAILABLE)

90026-371-004

Unavailable

27

BOLT C, OIL This part replaces 90027-MG9-000.

90027-MG9-010

Unavailable

27

BOLT C, OIL

90027-MG9-010

Unavailable

28

WASHER, SPECIAL (11X21X2.3)

90438-463-000

$2.53

29

WASHER, SEALING (8MM)

90441-422-000

$4.85

30

WASHER, SEALING (6MM)

90442-397-000

$2.28

31

WASHER, OIL BOLT

90545-300-000

$3.99

32

COLLAR (15X20)

90702-371-000

$5.87

33

PIN (4X12MM) (NOT AVAILABLE)

90702-634-300

Unavailable

34

COLLAR (17X10) (NOT AVAILABLE)

90703-371-000

Unavailable

35

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

36

O-RING (9.5X1.7)

91259-333-000

$3.69

37

O-RING (25.4X2.4)

91307-703-000

Unavailable

38

O-RING (27X2.7)

91318-500-000

Unavailable

39

O-RING (13X2.5)

91319-300-000

$5.07

40

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

40

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.13

41

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

42

SCREW, TAPPING (3X8)

93901-12110

$1.49

43

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

44

PIN, DOWEL (8X14)

94301-08140

$2.25

45

PIN, DOWEL (12X20)

94301-12200

$2.29

46

O-RING (8.4X2.4)

94608-10000

$1.49

47

CLIP, TUBE (D7.5)

95002-40750-08

Unavailable

48

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

48

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

49

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

49

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

50

BOLT, FLANGE (6X110) This part replaces 95700-06110-00.

95701-06110-00

$3.09

50

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

51

BOLT, FLANGE (8X70) This part replaces 95700-08070-00.

95701-08070-00

$2.67

51

BOLT, FLANGE (8X70)

95701-08070-00

$2.67
