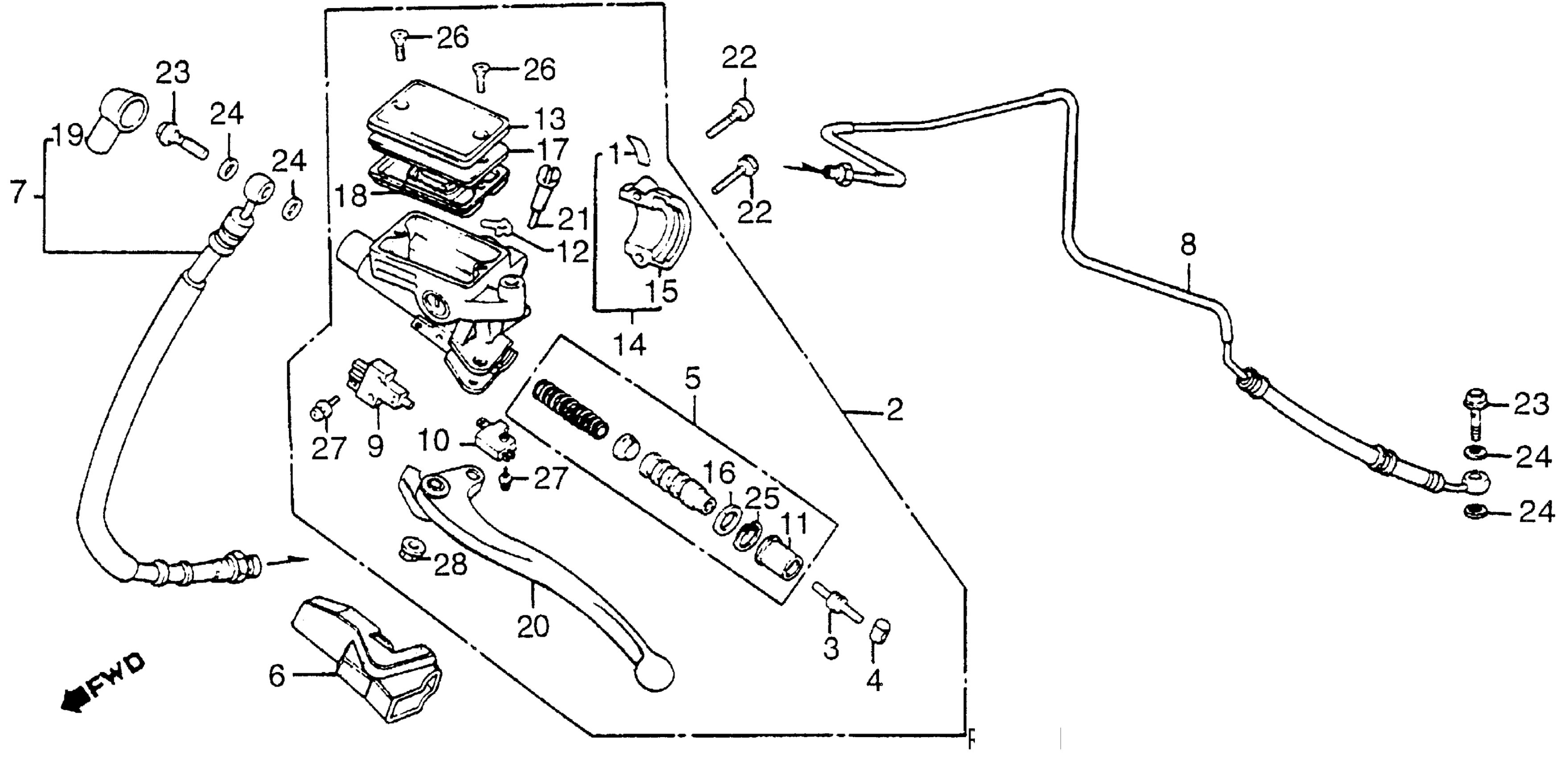

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

2

MASTER CYLINDER ASSY., CLUTCH (NOT AVAILABLE)

22880-MG9-951

Unavailable

3

ROD, PUSH

22884-MB0-006

$20.66

4

BUSH

22885-MB0-006

$12.95

5

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB4-305

$74.32

6

COVER ASSY., CLUTCH MASTER CYLINDER (NOT AVAILABLE)

22887-MG9-950

Unavailable

7

HOSE A, CLUTCH (NOT AVAILABLE)

22891-MG9-013

Unavailable

8

PIPE, CLUTCH (NOT AVAILABLE)

22895-MG9-013

Unavailable

10

SWITCH ASSY., CLUTCH CRUISE (TOYO)

35335-MG9-951

$23.58

11

BOOT

45504-410-003

$12.16

12

PROTECTOR

45512-MA6-006

$4.28

13

CAP, MASTER CYLINDER (NOT AVAILABLE)

45540-MB4-671

Unavailable

15

HOLDER, CHOKE LEVER (NOT AVAILABLE)

45517-MG9-951

Unavailable

16

PLATE, STOPPER

45518-MB0-006

$1.84

17

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

18

DIAPHRAGM

45520-MA5-672

$18.13

19

BOOT, MASTER CYLINDER

45522-422-000

$8.68

20

LEVER, L. HANDLE This part replaces 53178-MG9-016.

53178-MN5-006

$39.49

20

LEVER, L. HANDLE

53178-MN5-006

$39.49

21

BOLT, HANDLE LEVER

90114-MG9-951

$7.88

22

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

23

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

23

BOLT, OIL (10X22)

90145-KM3-751

$11.02

23

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

24

WASHER, OIL BOLT

90545-300-000

$3.99

25

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

26

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

26

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

27

SCREW-WASHER (4X12)

93893-04012-07

$1.49

27

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

28

NUT, FLANGE (6MM)

94050-06000

$1.49

28

NUT, CAP (6MM)

90201-415-000

$2.05
