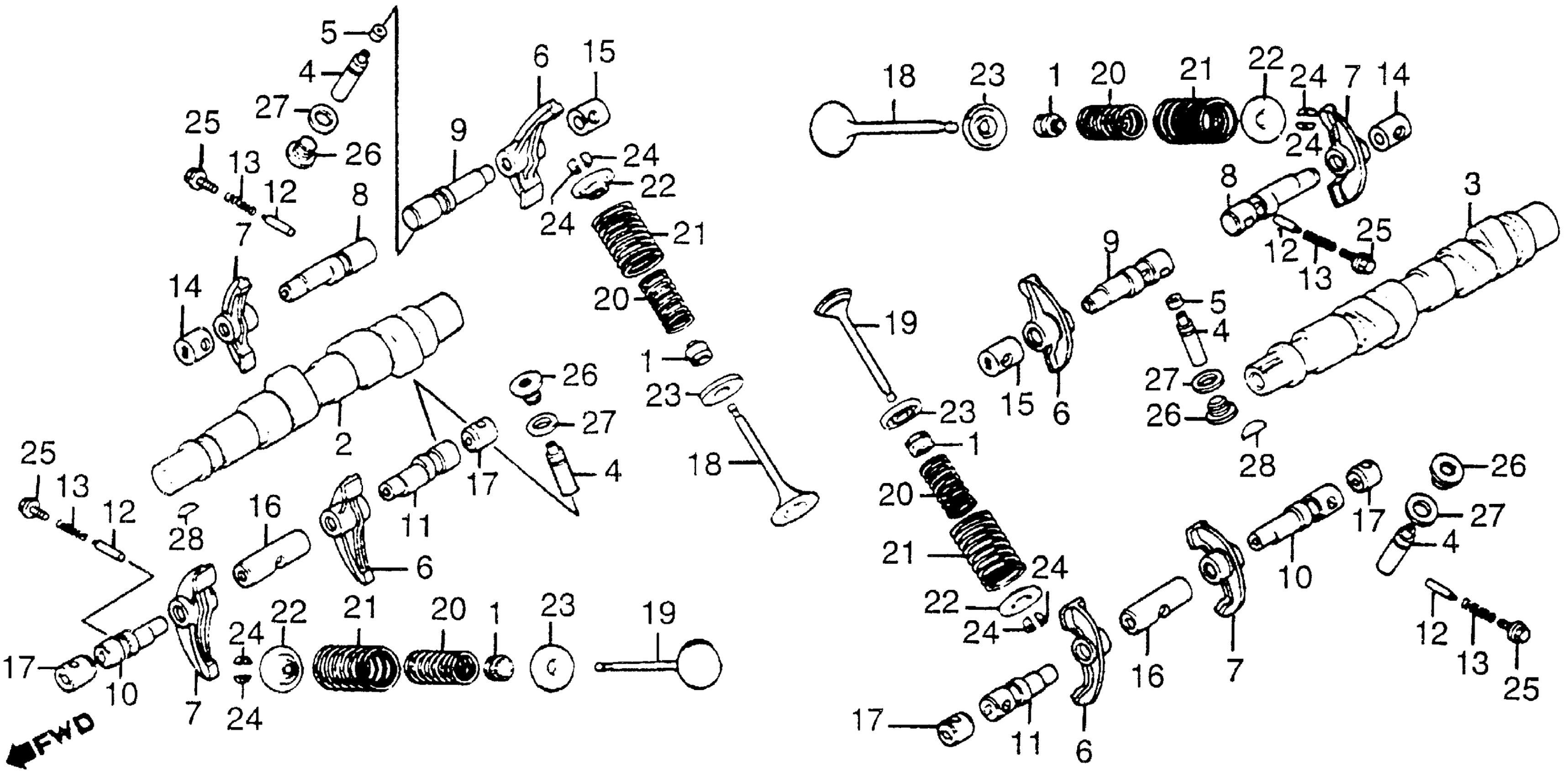

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (NOK)

12209-MB9-003

$12.43

2

CAMSHAFT, R. | Use from Engine SN 2526293

14111-MG9-951

Unavailable

3

CAMSHAFT, L. (NOT AVAILABLE)

14211-MG9-000

Unavailable

4

ADJUSTER, HYDRAULIC LASH

14450-MG9-004

$67.10

5

CAP, HYDRAULIC LASH ADJUSTER (NOT AVAILABLE)

14454-MG9-004

Unavailable

6

ARM A, VALVE ROCKER (NOT AVAILABLE)

14611-MG9-000

Unavailable

7

ARM B, VALVE ROCKER

14621-MG9-000

Unavailable

8

SHAFT, VALVE ROCKER ARM A (NOT AVAILABLE) This part replaces 14631-MG9-000.

14631-MG9-010

Unavailable

8

SHAFT, VALVE ROCKER ARM A (NOT AVAILABLE)

14631-MG9-010

Unavailable

9

SHAFT, VALVE ROCKER ARM B (NOT AVAILABLE) This part replaces 14632-MG9-000.

14632-MG9-010

Unavailable

9

SHAFT, VALVE ROCKER ARM B (NOT AVAILABLE)

14632-MG9-010

Unavailable

10

SHAFT, VALVE ROCKER ARM (C) (NOT AVAILABLE) This part replaces 14633-MG9-000.

14633-MG9-010

Unavailable

10

SHAFT, VALVE ROCKER ARM (C) (NOT AVAILABLE)

14633-MG9-010

Unavailable

11

SHAFT, VALVE ROCKER ARM (D) (NOT AVAILABLE) This part replaces 14634-MG9-000.

14634-MG9-010

Unavailable

11

SHAFT, VALVE ROCKER ARM (D) (NOT AVAILABLE)

14634-MG9-010

Unavailable

12

SHAFT, VALVE ROCKER ARM ASSIST

14643-MG9-000

Unavailable

13

SPRING, VALVE ROCKER ARM ASSIST

14644-MG9-000

Unavailable

14

COLLAR, VALVE ROCKER ARM A

14651-MG9-000

Unavailable

15

COLLAR, VALVE ROCKER ARM B

14652-MG9-000

Unavailable

16

COLLAR, VALVE ROCKER ARM (C) This part replaces 14653-MG9-000.

14653-MG9-010

Unavailable

16

COLLAR, VALVE ROCKER ARM (C)

14653-MG9-010

Unavailable

17

PLUG, ROCKER ARM SHAFT (NOT AVAILABLE)

14654-MG9-000

Unavailable

18

VALVE, IN.

14711-MG9-000

Unavailable

19

VALVE, EX. This part replaces 14721-MG9-000.

14721-MG9-405

Unavailable

19

VALVE, EX.

14721-MG9-405

Unavailable

20

SPRING, VALVE (INNER) (NIPPON HATSUJO)

14751-611-003

Unavailable

20

SPRING, VALVE (INNER) (NIPPON HATSUJO) This part replaces 14751-611-004.

14751-611-003

Unavailable

21

SPRING, VALVE (OUTER) (NIPPON HATSUJO)

14761-611-003

$7.00

21

SPRING, VALVE (OUTER) (NIPPON HATSUJO) This part replaces 14761-611-004.

14761-611-003

$7.00

22

RETAINER, VALVE SPRING

14771-410-010

$8.75

22

RETAINER, VALVE SPRING This part replaces 14771-679-000.

14771-410-010

$8.75

23

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-679-000

Unavailable

24

COTTER, VALVE

14781-MB9-000

$4.95

25

BOLT, ROCKER ARM ASSIST

90015-MG9-000

Unavailable

26

BOLT, HYDRAULIC LASH ADJUSTER STOPPER

90032-MG9-000

$9.77

27

SHIM, HYDRAULIC LASH ADJUSTER STOPPER (1.0)

90491-MG9-000

$3.26

28

KEY, WOODRUFF (25X14)

94401-25140

$1.75
