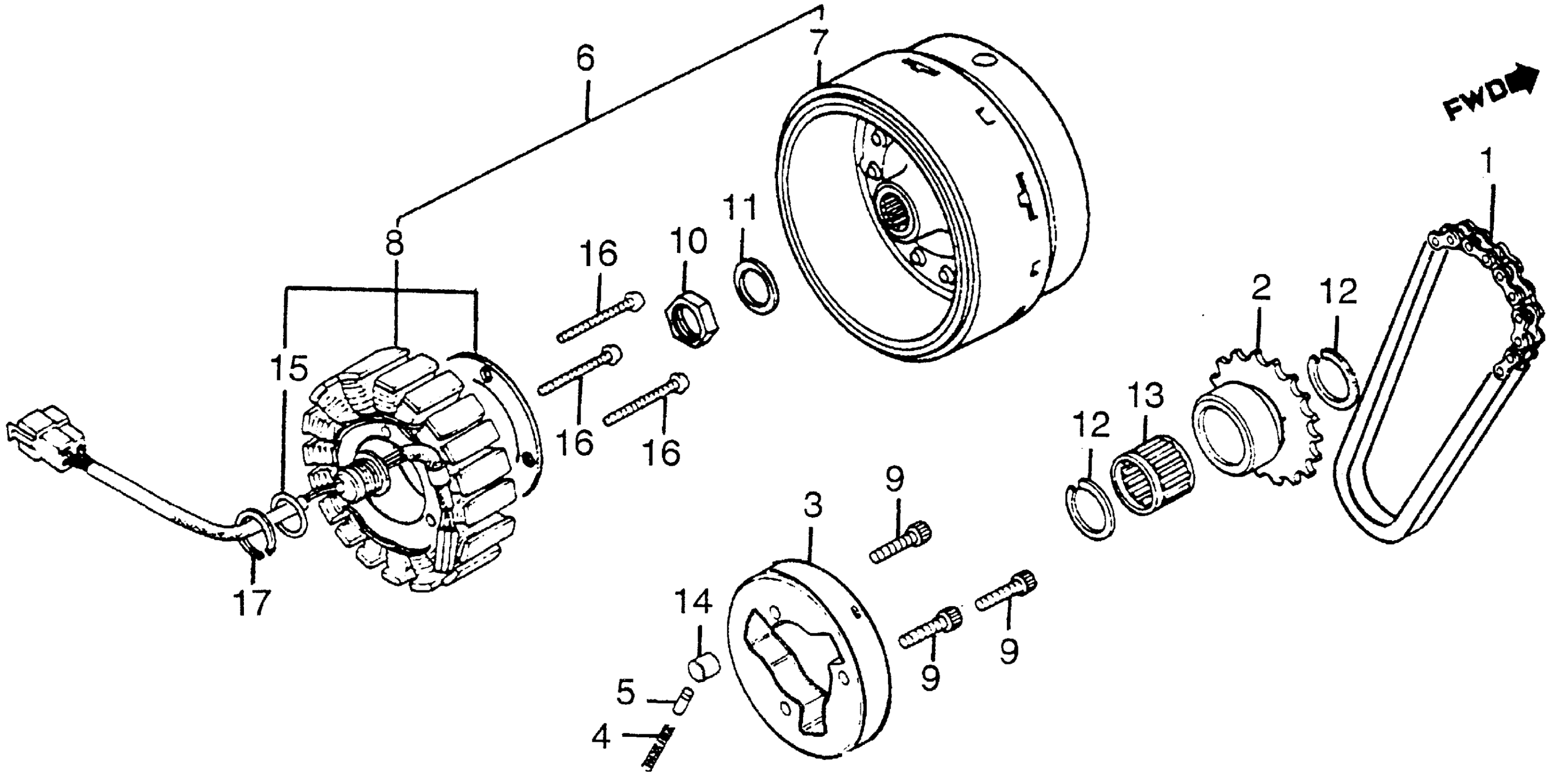

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 ALTERNATOR + STARTER CLUTCH Diagram

REPAIR KIT, ALTERNATOR CONNECTOR

31105-ML8-305

$19.22

CHAIN, STARTER (DAIDO) (NOT AVAILABLE)

28101-371-003

Unavailable

SPROCKET, STARTER (NOT AVAILABLE)

28111-MG9-000

Unavailable

CLUTCH, STARTING (OUTER) (NOT AVAILABLE)

28120-MG9-000

Unavailable

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

CAP, STARTER CLUTCH ROLLER SPRING

28126-415-000

$18.84

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-MG9-951

Unavailable

FLYWHEEL (NOT AVAILABLE) This part replaces 31110-MG9-951.

31110-MG9-952

Unavailable

FLYWHEEL (NOT AVAILABLE)

31110-MG9-952

Unavailable

STATOR This part replaces 31120-MG9-951.

31120-ML8-751

Unavailable

STATOR

31120-ML8-751

Unavailable

BOLT, SOCKET (8MM) This part replaces 90010-415-000.

90010-KCJ-690

$4.78

NUT, LOCK (22MM) (NOT AVAILABLE)

90202-KG4-000

Unavailable

WASHER, SPECIAL (22MM) (NOT AVAILABLE)

90401-MG9-000

Unavailable

CLIP (40) (NOT AVAILABLE) This part replaces 90605-MG9-000.

90605-MG9-008

Unavailable

CLIP (40) (NOT AVAILABLE)

90605-MG9-008

Unavailable

BEARING, NEEDLE (35X40X27) (NOT AVAILABLE)

91101-MG9-008

Unavailable

ROLLER (15X13)

91101-516-000

$6.32

O-RING (23X2)

91354-371-000

$3.19

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

SCREW, PAN (6X45)

93500-06045-0A

$1.49

CIRCLIP (OUTER) (26MM)

94511-26000

Unavailable
