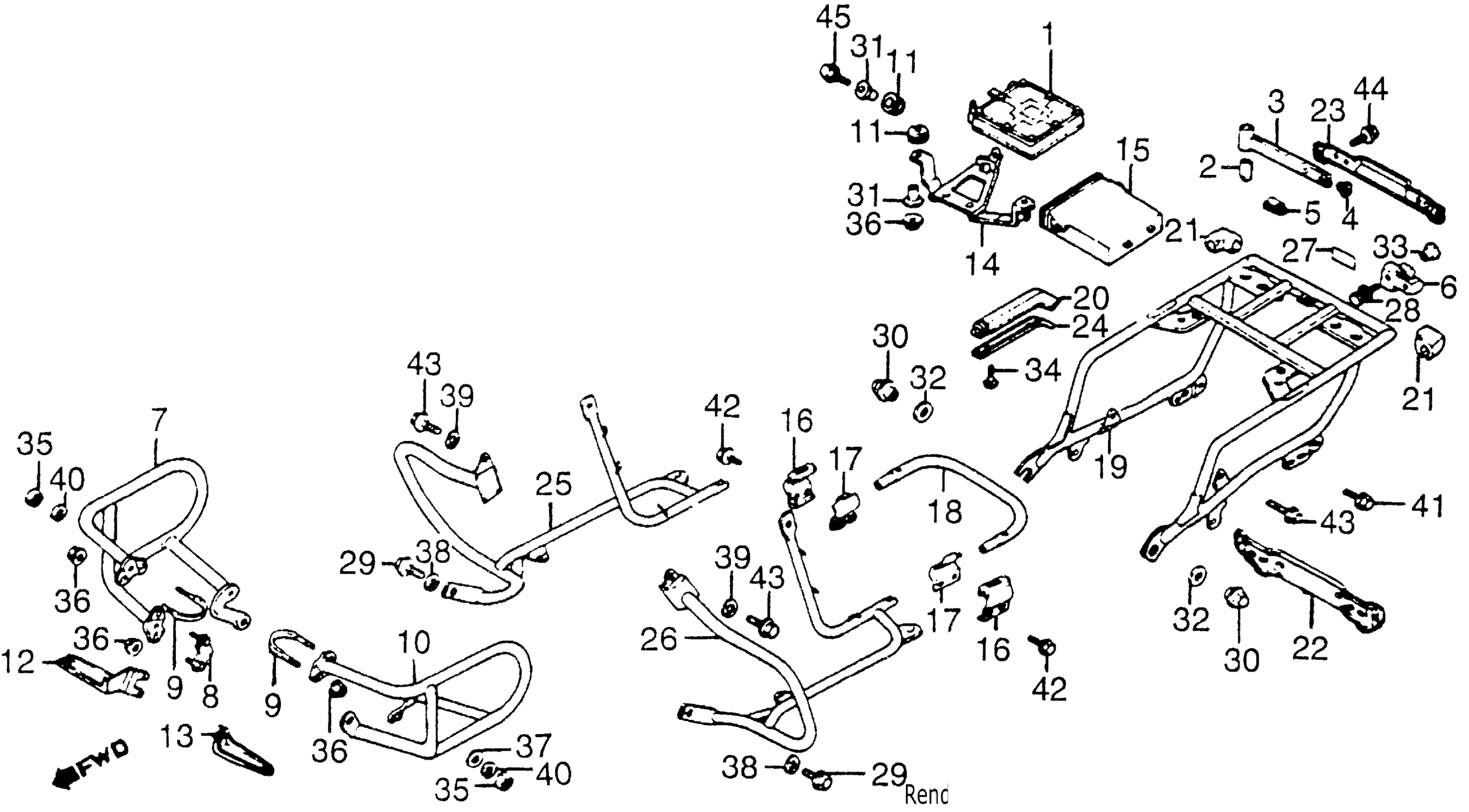

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 120I/A/LENGINE GUARD + SADDLEBAG STAY 84-85 Diagram

#

Description
Price

1

CONTROL UNIT ASSY. (C.F.I.) (NOT AVAILABLE) This part replaces 38770-MG9-951.

38770-MG9-952

Unavailable

1

CONTROL UNIT ASSY. (C.F.I.) (NOT AVAILABLE)

38770-MG9-952

Unavailable

2

NUT, ANTENNA SETTING

39158-MG9-870

$12.39

3

STAY, ANTENNA (NOT AVAILABLE)

39159-MG9-950

Unavailable

4

GROMMET, ANTENNA STAY (A)

39161-MG9-870

Unavailable

5

GROMMET, ANTENNA STAY (B)

39162-MG9-870

Unavailable

6

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

6

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

7

GUARD, R. ENGINE

62501-MG9-771

Unavailable

8

BAND, ENGINE GUARD (NOT AVAILABLE)

62502-463-770

Unavailable

9

BOLT, ENGINE GUARD SETTING (NOT AVAILABLE)

62503-463-770

Unavailable

10

GUARD, L. ENGINE This part replaces 62601-MG9-770.

62601-ML8-000

Unavailable

10

GUARD, L. ENGINE This part replaces 62601-MG9-771.

62601-ML8-000

Unavailable

10

GUARD, L. ENGINE

62601-ML8-000

Unavailable

10

GUARD, L. ENGINE This part replaces 62601-ML8-010.

62601-ML8-000

Unavailable

11

RUBBER, SCREEN SETTING

64216-GJ2-730

$4.48

12

STAY, R. COWL SIDE (LOWER)

64318-MG9-950

Unavailable

13

STAY, L. COWL SIDE (LOWER)

64319-MG9-950

Unavailable

14

STAY (E.C.U.) (NOT AVAILABLE)

80107-MG9-950

Unavailable

15

SUB-BOX, ELECTRIC CONTROL UNIT

80207-MG9-950

Unavailable

16

BAND A, RR. BUMPER

81235-463-770

Unavailable

17

BAND B, RR. BUMPER

81236-463-770

Unavailable

18

PIPE, RR. JOINT (NOT AVAILABLE)

81237-MG9-770

Unavailable

19

STAY, RR. TRUNK

84101-MG9-950

Unavailable

20

RUBBER, RR. GRIP (NOT AVAILABLE)

84102-MG9-950

Unavailable

23

COVER, RR. TRUNK STAY

84104-MG9-950

Unavailable

24

PLATE, GRIP SETTING

84105-MG9-950

Unavailable

25

STAY, R. SADDLEBAG

84250-MG9-770

Unavailable

26

STAY, L. SADDLEBAG

84350-MG9-770

Unavailable

27

LABEL, HELMET HOLDER

87511-323-670

$2.72

28

BOLT, HELMET HOLDER SETTING

90107-449-000

$3.35

30

NUT, RR. CUSHION SETTING (NOT AVAILABLE)

90310-463-770

Unavailable

31

COLLAR (6.2X12)

90501-425-000

$4.69

32

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

33

CAP, BLIND

91457-MG9-770

Unavailable

34

SCREW, FLAT (4X12)

93600-04012-0A

$1.49

35

NUT, HEX. (12MM)

94030-12200

$1.66

36

NUT, FLANGE (6MM)

94050-06000

$1.49

37

WASHER, PLAIN (12MM)

94101-12000

$1.49

39

WASHER, SPRING (8MM)

94111-08000

$1.49

40

WASHER, SPRING (12MM)

94111-12000

$1.49

41

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

41

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

42

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

42

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

43

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

43

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

44

BOLT, FLANGE (6X14) This part replaces 96000-06014-02.

96001-06014-02

$1.49

44

BOLT, FLANGE (6X14)

96001-06014-02

$1.49

45

BOLT, FLANGE (6X22) This part replaces 96000-06022-02.

96001-06022-02

$2.46

45

BOLT, FLANGE (6X22)

96001-06022-02

$2.46
