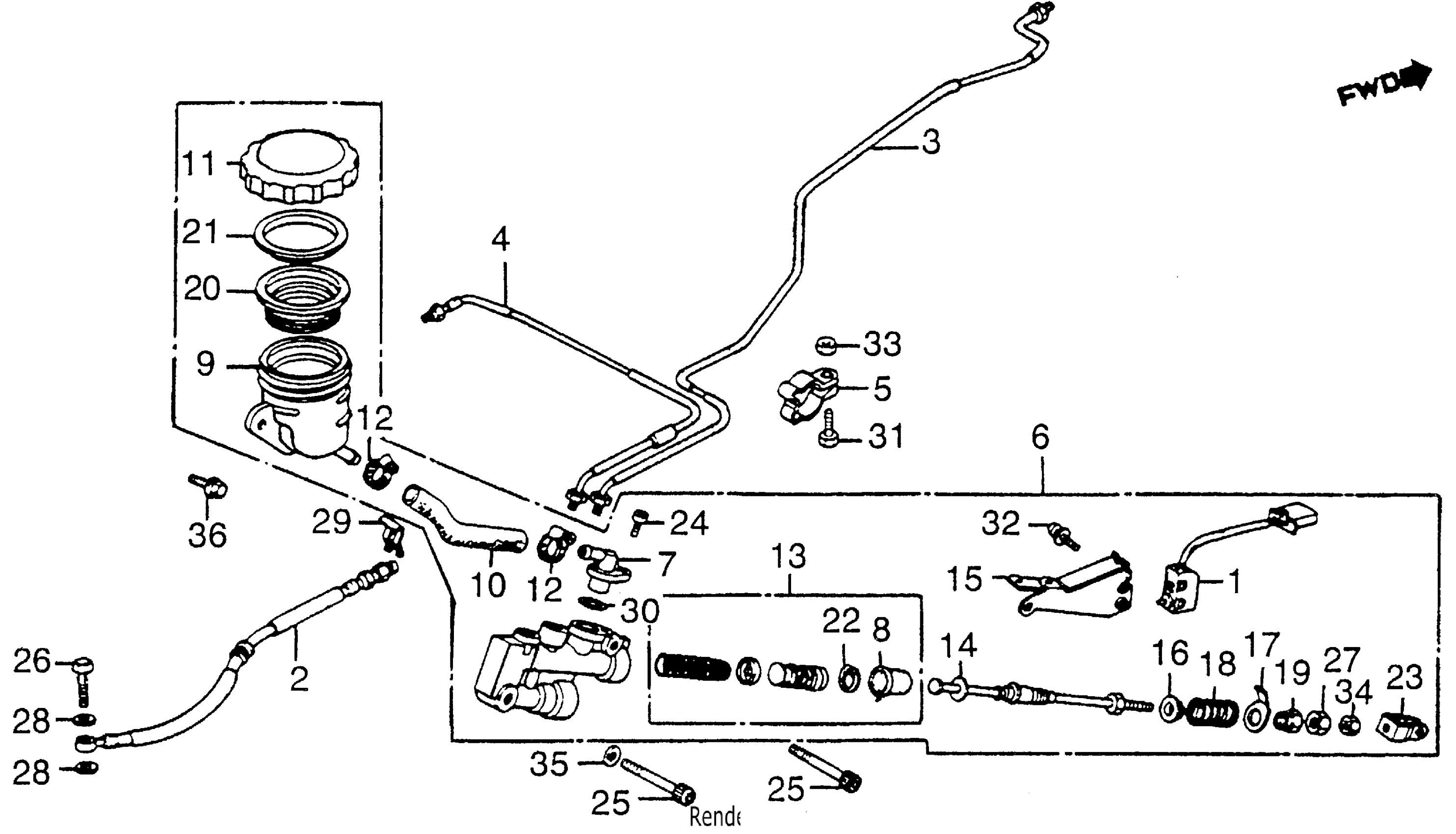

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 1200L RR. BRAKE MASTER CYL. 85 Diagram

#

Description
Price

1

SWITCH ASSY., RR. STOP & CRUISE (NOT AVAILABLE)

35355-MG9-951

Unavailable

2

HOSE, RR. BRAKE (NOT AVAILABLE)

43310-MG9-013

Unavailable

3

PIPE A, RR. MASTER CYLINDER (NOT AVAILABLE)

43311-MG9-010

Unavailable

4

PIPE B, RR. BRAKE CALIPER (NOT AVAILABLE)

43312-MG9-000

Unavailable

5

BAND, BRAKE PIPE (NOT AVAILABLE)

43320-MG9-000

Unavailable

6

MASTER CYLINDER ASSY., RR. BRAKE (NOT AVAILABLE)

43500-MG9-951

Unavailable

7

CONNECTOR

43503-MG9-006

Unavailable

8

BOOT

43504-MB2-006

$10.04

9

CUP, MASTER CYLINDER OIL

43511-MA6-006

$40.52

10

HOSE, MASTER CYLINDER (NOT AVAILABLE)

43512-MG9-000

Unavailable

11

CAP, OIL CUP

43513-MB4-672

Unavailable

12

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

13

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-305

$67.65

14

ROD, PUSH (NOT AVAILABLE)

43530-MG9-951

Unavailable

15

BRACKET

43535-MG9-951

Unavailable

16

STOPPER, SPRING

43536-MG9-951

Unavailable

17

PLATE

43537-MG9-951

Unavailable

18

SPRING, SWITCH (NOT AVAILABLE)

43538-MG9-951

Unavailable

19

NUT B (14MM) (NOT AVAILABLE)

43539-MG9-951

Unavailable

20

DIAPHRAGM

45520-300-000

$9.05

21

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

22

CIRCLIP

46182-500-013

$4.90

23

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-445-771

Unavailable

24

BOLT, SOCKET (4X13) This part replaces 90102-MB2-000.

90102-MB2-505

Unavailable

24

BOLT, SOCKET (4X13) (NOT AVAILABLE)

90102-MB2-505

Unavailable

25

BOLT, SOCKET (8X48) (NOT AVAILABLE)

90106-438-000

Unavailable

26

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

26

BOLT, OIL (10X22)

90145-KM3-751

$11.02

26

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

27

NUT (14X1.0) (NOT AVAILABLE)

90301-MG9-951

Unavailable

28

WASHER, OIL BOLT

90545-300-000

$3.99

29

CLIP, BRAKE HOSE

90651-538-000

$6.77

30

O-RING (14.8X2.4)

91212-422-006

$2.56

31

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

32

SCREW-WASHER (4X16)

93891-04016-08

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM)

94001-06200-0S

$1.49

34

NUT, HEX. (8MM)

94002-08000-0S

$1.49

35

WASHER, PLAIN (8MM)

94101-08000

$1.49

36

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

36

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
