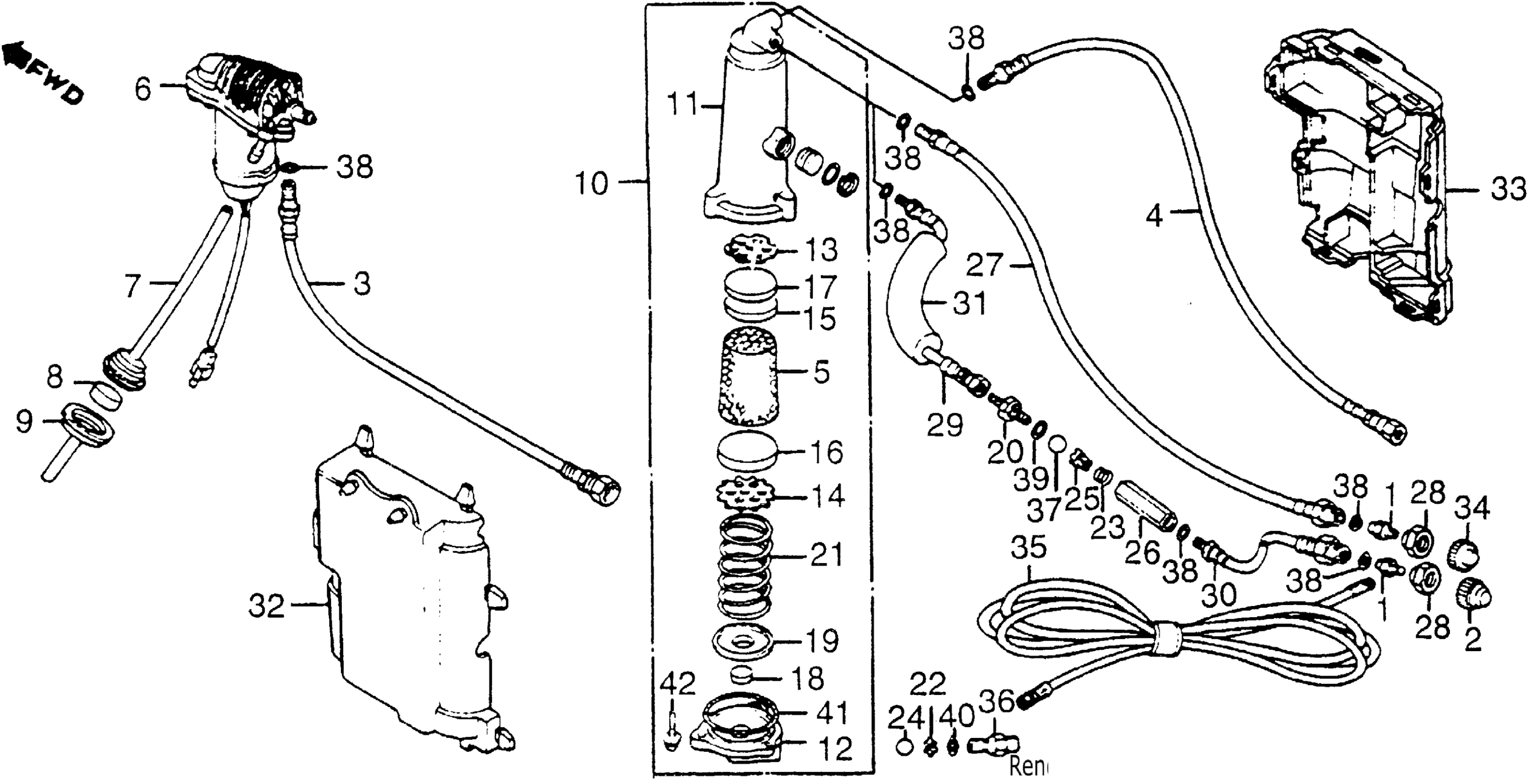

Honda GL1200LA (85) GOLD WING LIMITED EDITION, USA, VIN# 1HFSC146-FA101976 TO 1HFSC146-FA126016 1200A/L AIR PUMP + DRIER 84-85 Diagram

#

Description
Price

NI

SPRING A, COIL

52724-MG9-951

Unavailable

NI

VALVE B, CHECK

52727-MG9-951

Unavailable

NI

SPRING B, COIL

52728-MG9-951

Unavailable

1

VALVE, AIR (SHOWA)

51456-469-013

$33.69

2

CAP ASSY., VALVE

51457-MG9-951

Unavailable

2

SEAL B

52725-MG9-951

Unavailable

3

HOSE, AIR This part replaces 52645-MG9-871.

52645-MG9-405

Unavailable

3

VALVE A, CHECK

52726-MG9-951

Unavailable

4

HOSE, AIR (E)

52660-MG9-951

Unavailable

5

DESICCANT (NOT AVAILABLE)

527A2-MB9-870

Unavailable

6

PUMP ASSY., AIR (NOT AVAILABLE)

52700-MG9-951

Unavailable

7

TUBE, AIR (A) (NOT AVAILABLE)

52705-MG9-870

Unavailable

8

ELEMENT, PUMP (NOT AVAILABLE)

52706-MB9-870

Unavailable

9

TUBE B, AIR

52707-MB9-870

Unavailable

10

DRIER ASSY. (NOT AVAILABLE)

52710-MG9-951

Unavailable

11

FRAME, DRIER

52711-MB9-951

Unavailable

12

COVER, DRIER (NOT AVAILABLE)

52712-MG9-951

Unavailable

13

RETAINER (A)

52713-MB9-870

Unavailable

14

RETAINER (B) (NOT AVAILABLE)

52714-MB9-870

Unavailable

15

FILTER (A) (NOT AVAILABLE)

52715-MB9-870

Unavailable

16

FILTER (B) (NOT AVAILABLE)

52716-MB9-870

Unavailable

17

FILTER (C) (NOT AVAILABLE)

52717-MB9-870

Unavailable

20

CONNECTOR (A)

52721-MB9-951

Unavailable

21

SPRING, RETAINER SETTING (NOT AVAILABLE)

52721-MG9-951

Unavailable

22

RING, STOPPER

52722-MG9-951

Unavailable

23

SPRING, VALVE (NOT AVAILABLE)

52723-MB9-870

Unavailable

24

SEAL A

52723-MG9-951

Unavailable

25

WASHER, CAP

52726-MB9-871

Unavailable

26

JOINT, HOSE

52729-MG9-951

Unavailable

28

NUT, LOCK (14MM)

52742-MG9-870

Unavailable

29

HOSE, AIR (G)

52745-MG9-951

Unavailable

30

HOSE, DRIER

52746-MG9-951

Unavailable

31

PROTECTOR

52747-MG9-951

Unavailable

32

COVER B, PUMP

52756-MG9-870

Unavailable

33

COVER, PUMP (A) (NOT AVAILABLE)

52758-MG9-870

Unavailable

35

HOSE, AIR SUPPLY

52817-MG9-871

Unavailable

36

CONNECTOR (B) This part replaces 53139-MG9-951.

53139-MG9-952

Unavailable

36

CONNECTOR (B)

53139-MG9-952

Unavailable

37

BALL, STEEL (10)

90211-MB9-870

Unavailable

38

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

38

O-RING (5.8X1.9)

91305-323-000

$2.92

38

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

39

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

39

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

40

O-RING (13.5X1.5) (NOT AVAILABLE)

91353-MG9-951

Unavailable

41

O-RING (49.7X3.5) (NOT AVAILABLE)

91360-MB9-870

Unavailable

42

SCREW-WASHER (4X20)

93893-04020-08

$1.49
