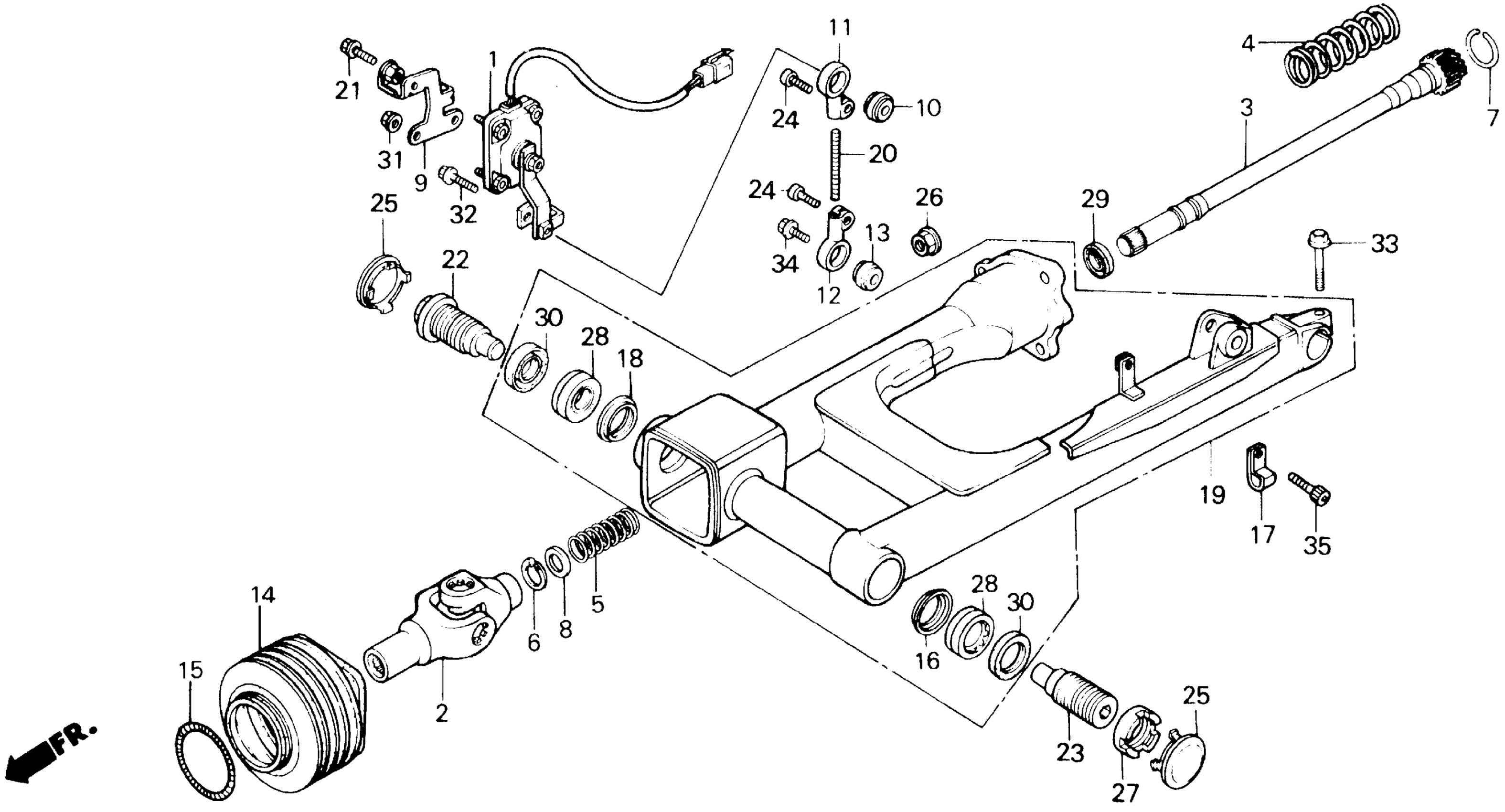

Honda GL1200IA (87) GOLD WING INTERSTATE, USA, VIN# 1HFSC141-HA300106 TO 1HFSC141-HA310085 SWINGARM Diagram

#

Description
Price

2

JOINT, YOKE (NOT AVAILABLE)

40200-MG9-010

Unavailable

3

SHAFT, PROPELLER (NOT AVAILABLE)

40201-MG9-000

Unavailable

4

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

5

SPRING, PROPELLER SHAFT

40215-MG9-000

$7.89

6

CIRCLIP

40219-MG9-000

$4.06

7

RING, STOPPER

40221-MB0-000

$4.53

8

STOPPER, PROPELLER SHAFT

40222-MG9-000

$5.02

14

BOOT, JOINT

52105-463-010

Unavailable

15

BAND, JOINT BOOT (NOT AVAILABLE)

52106-463-000

Unavailable

16

HOLDER, SWINGARM GREASE

52112-MA1-300

$7.04

17

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

18

PLATE, DUST SEAL (NOT AVAILABLE)

52118-MG9-003

Unavailable

19

SWINGARM ASSY. *NH1* (BLACK)

52120-ML8-670ZA

Unavailable

22

BOLT, R. RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-MG9-000

Unavailable

23

BOLT, L. RR. SWINGARM PIVOT (NOT AVAILABLE)

90122-463-000

$33.51

25

CAP, LOCK NUT (NOT AVAILABLE)

90303-MB9-950

Unavailable

26

NUT, HEX. (8MM)

90309-357-000

$3.40

27

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

28

BEARING, TAPER (30203) This part replaces 91062-415-013.

91121-PH8-961

Unavailable

28

BEARING, TAPER (30203)

91121-PH8-961

Unavailable

29

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

30

DUST SEAL (26X40X5)

91268-463-003

$6.61

33

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

33

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

35

BOLT, SOCKET (6X10)

96600-06010-07

$1.49

35

BOLT, SOCKET (6X10) This part replaces 96700-06010-07.

96600-06010-07

$1.49
