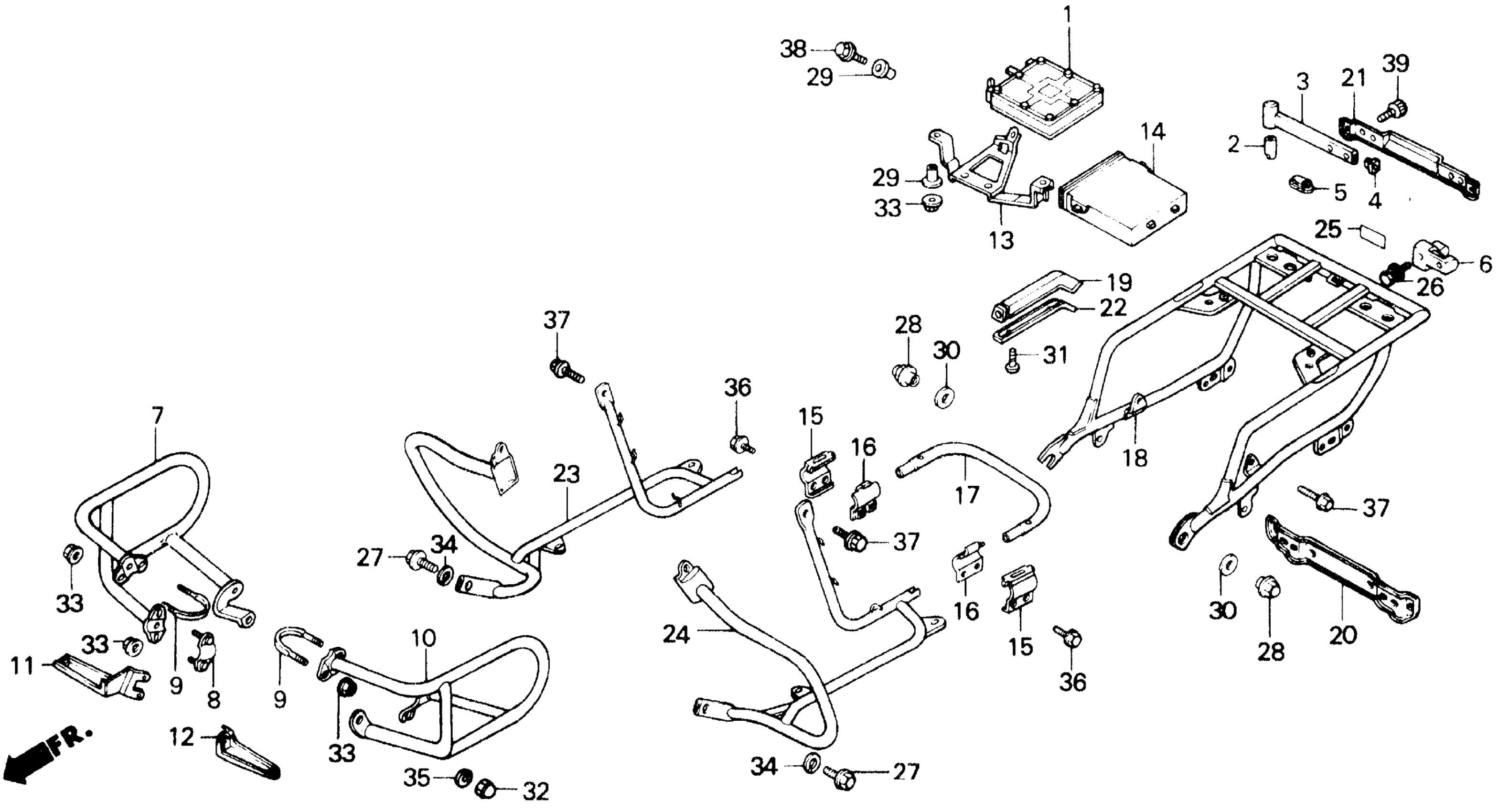

Honda GL1200IA (87) GOLD WING INTERSTATE, USA, VIN# 1HFSC141-HA300106 TO 1HFSC141-HA310085 ENGINE GUARD Diagram

NUT, ANTENNA SETTING | (Optional).

39158-MG9-870

$12.39

STAY, ANTENNA (NOT AVAILABLE) | (Optional).

39159-MG9-870

Unavailable

GROMMET, ANTENNA STAY (A) | (Optional).

39161-MG9-870

Unavailable

GROMMET, ANTENNA STAY (B) | (Optional).

39162-MG9-870

Unavailable

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

GUARD, R. ENGINE

62501-MG9-771

Unavailable

BAND, ENGINE GUARD (NOT AVAILABLE)

62502-463-770

Unavailable

BOLT, ENGINE GUARD SETTING (NOT AVAILABLE)

62503-463-770

Unavailable

GUARD, L. ENGINE

62601-ML8-000

Unavailable

BAND A, RR. BUMPER

81235-463-770

Unavailable

BAND B, RR. BUMPER

81236-463-770

Unavailable

PIPE, RR. JOINT (NOT AVAILABLE)

81237-MG9-770

Unavailable

STAY, RR. TRUNK (NOT AVAILABLE)

84101-MG9-771

Unavailable

COVER, RR. TRUNK STAY

84104-ML8-670

Unavailable

STAY, R. SADDLEBAG

84250-MG9-770

Unavailable

STAY, L. SADDLEBAG

84350-MG9-770

Unavailable

LABEL, HELMET HOLDER

87511-323-670

$2.72

BOLT, HELMET HOLDER SETTING

90107-449-000

$3.35

BOLT, FLANGE (8X15)

90109-MG9-770

Unavailable

NUT, RR. CUSHION SETTING (NOT AVAILABLE)

90310-463-770

Unavailable

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

NUT, CAP (10MM)

94021-10200-0S

Unavailable

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (8MM)

94103-08000

$1.49

WASHER, SPRING (10MM)

94111-10000

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, SOCKET (6X16) | (Optional).

96600-06016-00

$1.66
