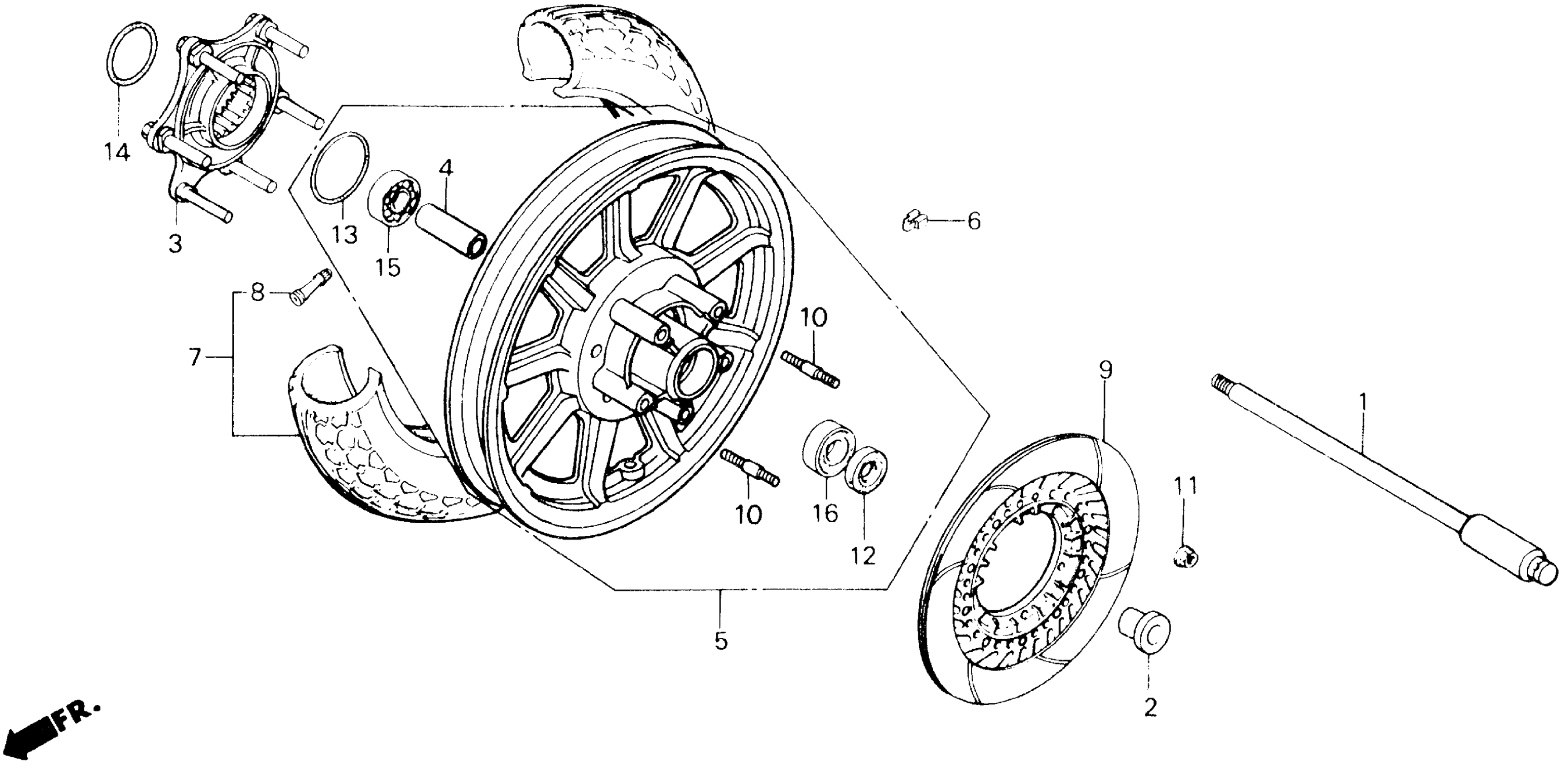

Honda GL1200IA (86) GOLD WING INTERSTATE, USA, VIN# 1HFSC141-GA200106 TO 1HFSC141-GA223917 REAR WHEEL Diagram

#

Description
Price

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-MG9-000

Unavailable

2

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42313-MG9-000

Unavailable

3

FLANGE, FINAL DRIVEN

42614-ML8-670

Unavailable

4

COLLAR A, RR. DISTANCE

42620-MB4-405

Unavailable

4

COLLAR A, RR. DISTANCE This part replaces 42620-431-670.

42620-MB4-405

Unavailable

5

WHEEL, RR. This part replaces 42650-ML8-670.

42650-ML8-671

Unavailable

6

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

6

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

6

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

7

TIRE ASSY., RR. (150/90-15) (74H) (DUNLOP) This part replaces 42710-MG9-003.

42710-MG9-004

Unavailable

7

TIRE ASSY., RR. (150/90-15) (74H) (DUNLOP)

42710-MG9-004

Unavailable

7

TIRE ASSY., RR. (150/90-15) (74H) (DUNLOP) This part replaces 42710-MG9-005.

42710-MG9-004

Unavailable

8

VALVE, RIM This part replaces 42753-GC7-822.

42753-VM0-003

$10.30

8

VALVE, RIM This part replaces 42753-GC7-823.

42753-VM0-003

$10.30

8

VALVE, RIM

42753-VM0-003

$10.30

9

DISK, RR. BRAKE

43120-MG9-000

Unavailable

10

BOLT, STUD (8X45) (NOT AVAILABLE)

90125-329-010

$3.26

11

NUT, HEX. (8MM)

90309-357-000

$3.40

12

DUST SEAL (30X52X7)

91253-442-003

$13.96

12

DUST SEAL (30X52X7) This part replaces 91253-442-004.

91253-442-003

$13.96

13

O-RING (61X2)

91302-MA6-003

$5.17

14

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76

14

O-RING (50.5X3.5) (ARAI) This part replaces 91358-MG9-004.

91358-MG9-003

$3.76

15

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

16

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03
