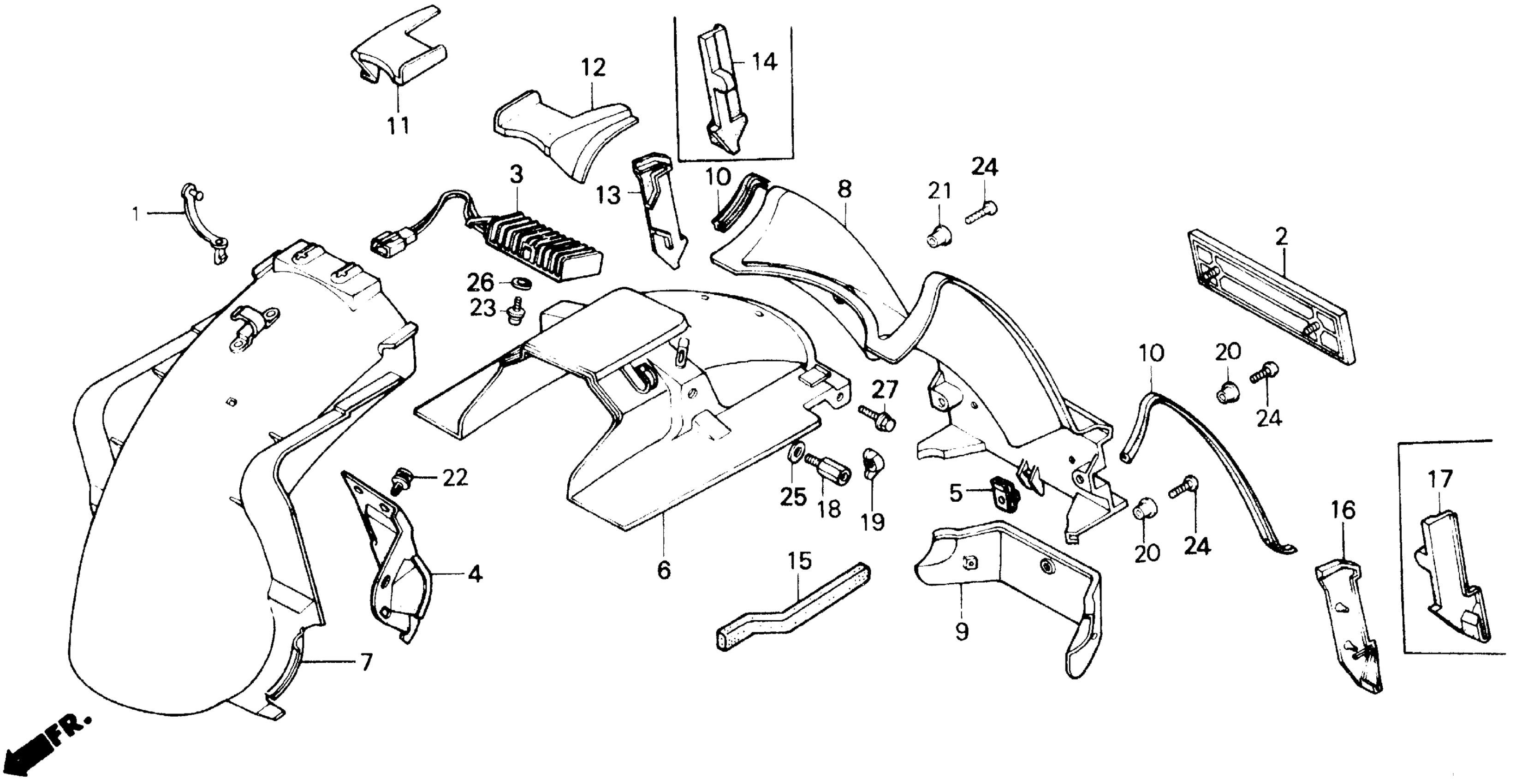

Honda GL1200IA (86) GOLD WING INTERSTATE, USA, VIN# 1HFSC141-GA200106 TO 1HFSC141-GA223917 REAR FENDER Diagram

CLAMP, WIRE HARNESS (NOT AVAILABLE)

32175-MG9-770

Unavailable

REFLECTOR, RR. REFLEX (NOT AVAILABLE)

33742-MG9-771

Unavailable

NUT, CLIP (6MM)

64529-MC7-000

Unavailable

FENDER R*R114C-U* This part replaces 80100-MG9-680ZA.

80100-MG9-P00ZA

Unavailable

FENDER A, RR. *NH1Z* (BLACK-Z)

80100-MG9-680ZG

Unavailable

FENDER B, RR. (NOT AVAILABLE)

80101-MG9-000

Unavailable

FENDER A, MIDDLE *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

80102-MG9-770ZA

Unavailable

FENDER A, MIDDLE *NH1Z* (BLACK-Z)

80102-MG9-770ZM

Unavailable

FENDER A (LOWER) (NOT AVAILABLE)

80103-MG9-770

Unavailable

RUBBER, FENDER SIDE

80104-MG9-770

Unavailable

SPLASH GUARD, R.

80110-MG9-680

Unavailable

SPLASH GUARD, L.

80120-MG9-680

Unavailable

RUBBER, R. MOLDING END

81230-MG9-770

Unavailable

RUBBER, SEAL

81240-ML8-300

Unavailable

RUBBER, L. MOLDING END (NOT AVAILABLE)

81430-MG9-770

Unavailable

BOLT, FENDER SETTING (NOT AVAILABLE)

90102-MG9-770

Unavailable

NUT, TOOL BOX SETTING

90325-044-000

$3.51

WASHER, NUMBER BRACKET SETTING

90402-GB0-900

$3.52

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

SCREW, PAN (6X16)

93500-06016-0G

$1.49

WASHER, PLAIN (8MM)

94101-08800

$1.93

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
