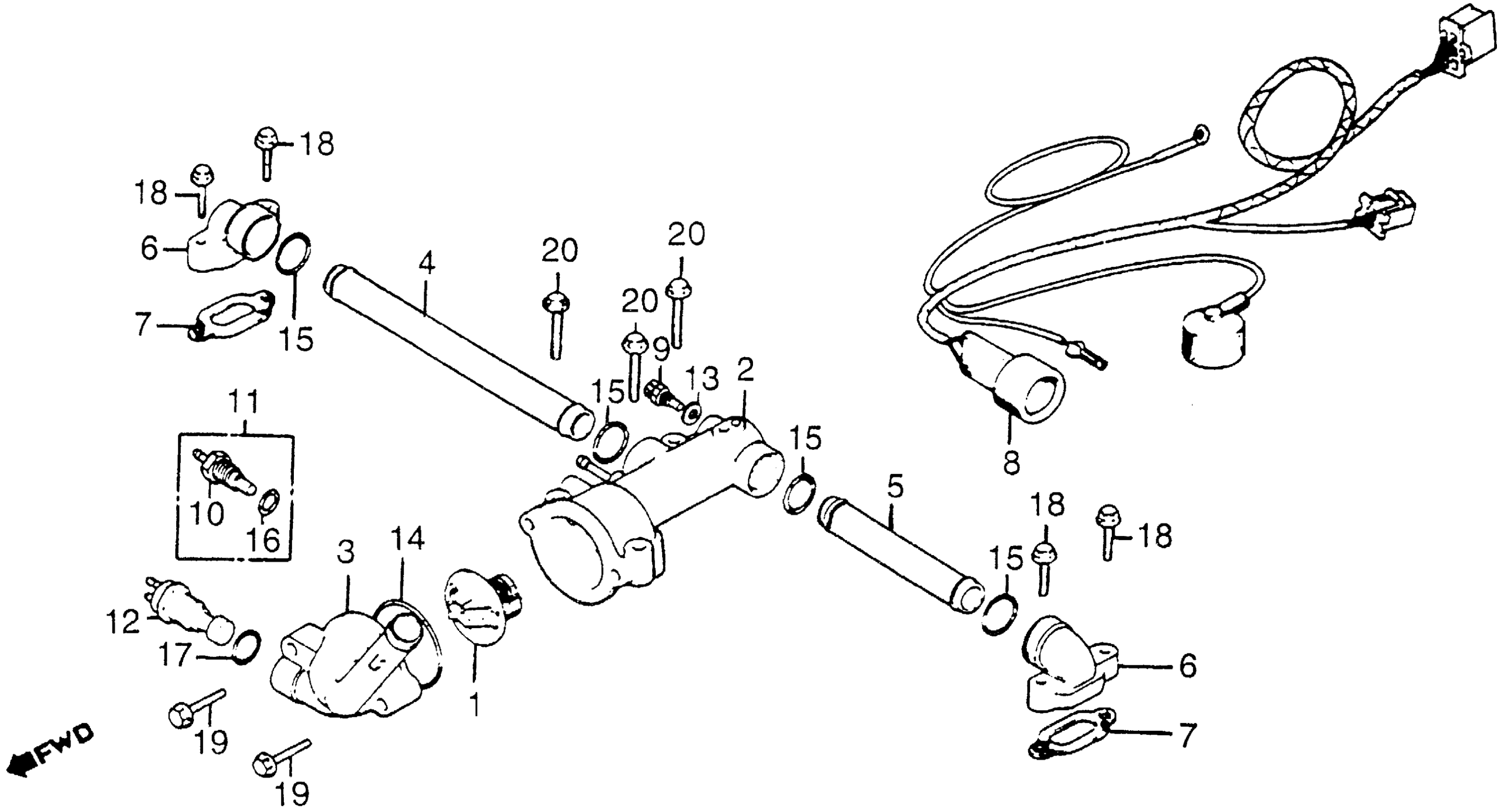

Honda GL1200IA (85) GOLD WING INTERSTATE, USA, VIN# 1HFSC141-FA101553 TO 1HFSC141-FA126181 THERMOSTAT Diagram

THERMOSTAT

19300-MG9-000

$54.15

CASE, THERMOSTAT (NOT AVAILABLE)

19311-MG9-000

Unavailable

COVER, THERMOSTAT (NOT AVAILABLE)

19315-371-000

Unavailable

PIPE, R. CONNECTING (NOT AVAILABLE)

19411-MG9-000

Unavailable

PIPE, L. CONNECTING (NOT AVAILABLE)

19412-MG9-000

Unavailable

JOINT, WATER (NOT AVAILABLE)

19421-371-000

Unavailable

GASKET, WATER JOINT This part replaces 19429-371-000.

19429-371-306

$6.37

GASKET, WATER JOINT

19429-371-306

$6.37

SUB-WIRE HARNESS D (NOT AVAILABLE)

32104-MG9-670

Unavailable

SENDING UNIT, WATER TEMPERATURE (DENSO) This part replaces 37510-371-008.

37750-611-154

Unavailable

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-611-154

Unavailable

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-611-154

Unavailable

SWITCH ASSY., THERMOSTAT

37760-MB9-000

Unavailable

O-RING (54X2) This part replaces 91302-317-700.

91307-MB0-003

$3.23

O-RING (54X2) This part replaces 91307-MB0-000.

91307-MB0-003

$3.23

O-RING (54X2)

91307-MB0-003

$3.23

O-RING (21.9X2.3)

91301-MB6-003

$2.11

O-RING (21.9X2.3) This part replaces 91302-371-013.

91301-MB6-003

$2.11

O-RING (21.9X2.3) This part replaces 91302-371-023.

91301-MB6-003

$2.11

O-RING (13.5X1.4)

91307-PH7-660

$2.83

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

O-RING (15.5X1.4)

91307-PH9-000

Unavailable

O-RING (15.5X1.4) This part replaces 91310-611-000.

91307-PH9-000

Unavailable

BOLT, FLANGE (6X25) This part replaces 96000-06025-02.

96001-06025-02

$1.49

BOLT, FLANGE (6X25)

96001-06025-02

$1.49

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

BOLT, FLANGE (6X40) (SOURCE: VINTAGE PARTS INC.) This part replaces 96000-06040-02.

96001-06040-02

Unavailable
