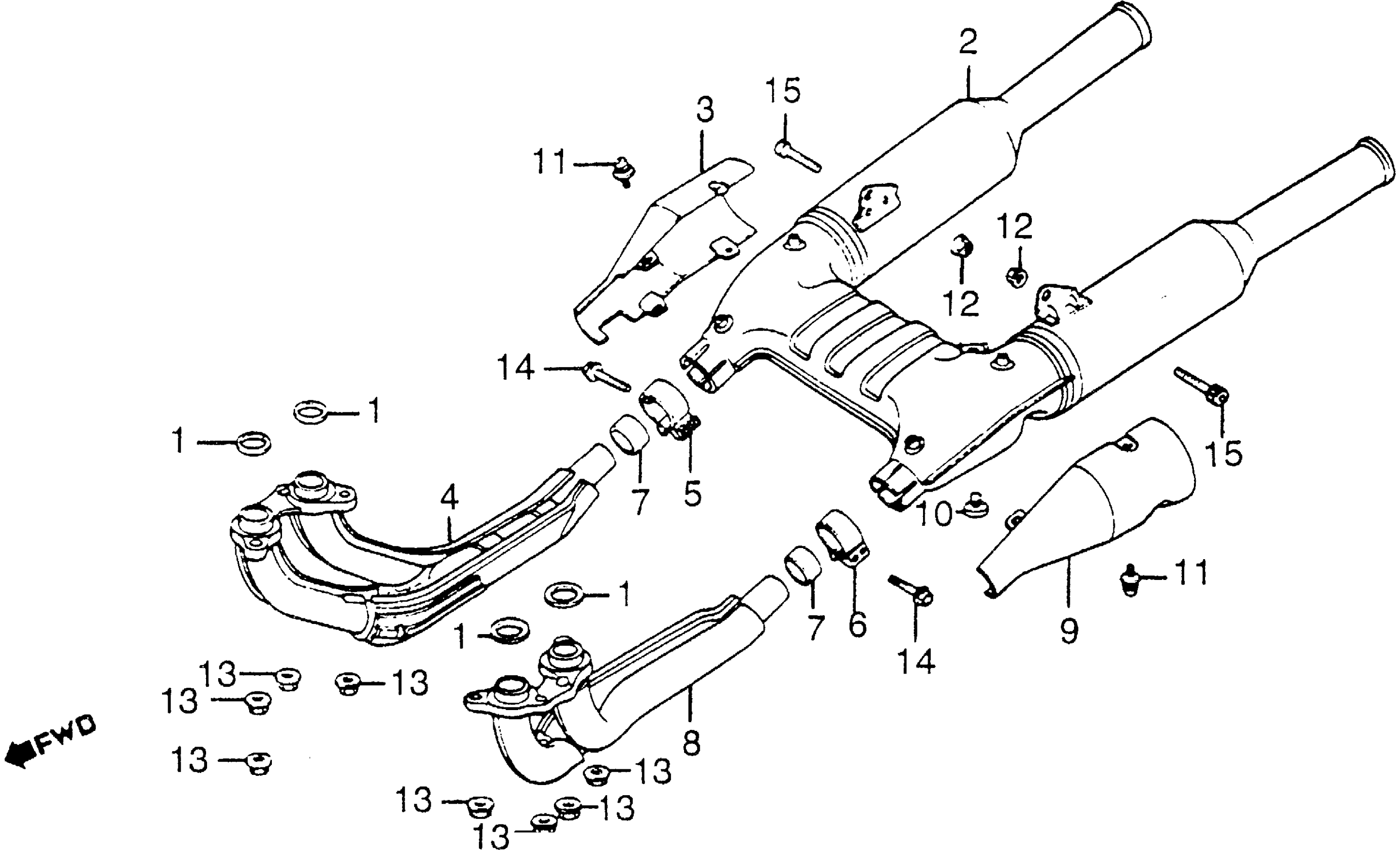

Honda GL1200IA (85) GOLD WING INTERSTATE, USA, VIN# 1HFSC141-FA101553 TO 1HFSC141-FA126181 MUFFLER Diagram

GASKET, EX. PIPE This part replaces 18291-286-000.

18291-286-306

$7.19

GASKET, EX. PIPE

18291-286-306

$7.19

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-MG9-771.

18300-ML8-671

Unavailable

PROTECTOR, R. PIPE

18325-MG9-003

Unavailable

BODY, MUFFLER This part replaces 18350-MG9-003.

18350-MG9-901

Unavailable

BAND, R. MUFFLER This part replaces 18376-ME9-003.

18376-MB4-003

$41.21

BAND, R. MUFFLER

18376-MB4-003

$41.21

BAND, L. MUFFLER This part replaces 18377-ME9-003.

18377-MB4-003

$41.16

BAND, L. MUFFLER

18377-MB4-003

$41.16

GASKET, MUFFLER This part replaces 18391-429-000.

18391-429-010

$15.22

GASKET, MUFFLER

18391-429-010

$15.22

COVER, L. EX. This part replaces 18450-MG9-003.

18450-MG9-901

Unavailable

COVER, L. EX.

18450-MG9-901

Unavailable

PROTECTOR, L. CHAMBER

18475-MG9-003

$142.48

RUBBER, STAND STOPPER

50524-MG9-000

$6.73

SCREW-WASHER (6X10)

93893-06010-00

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

NUT-WASHER (8MM)

94070-08080

$1.49

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

BOLT, FLANGE (10X35) This part replaces 95700-10035-00.

95701-10035-00

$1.51

BOLT, FLANGE (10X35)

95701-10035-00

$1.51
