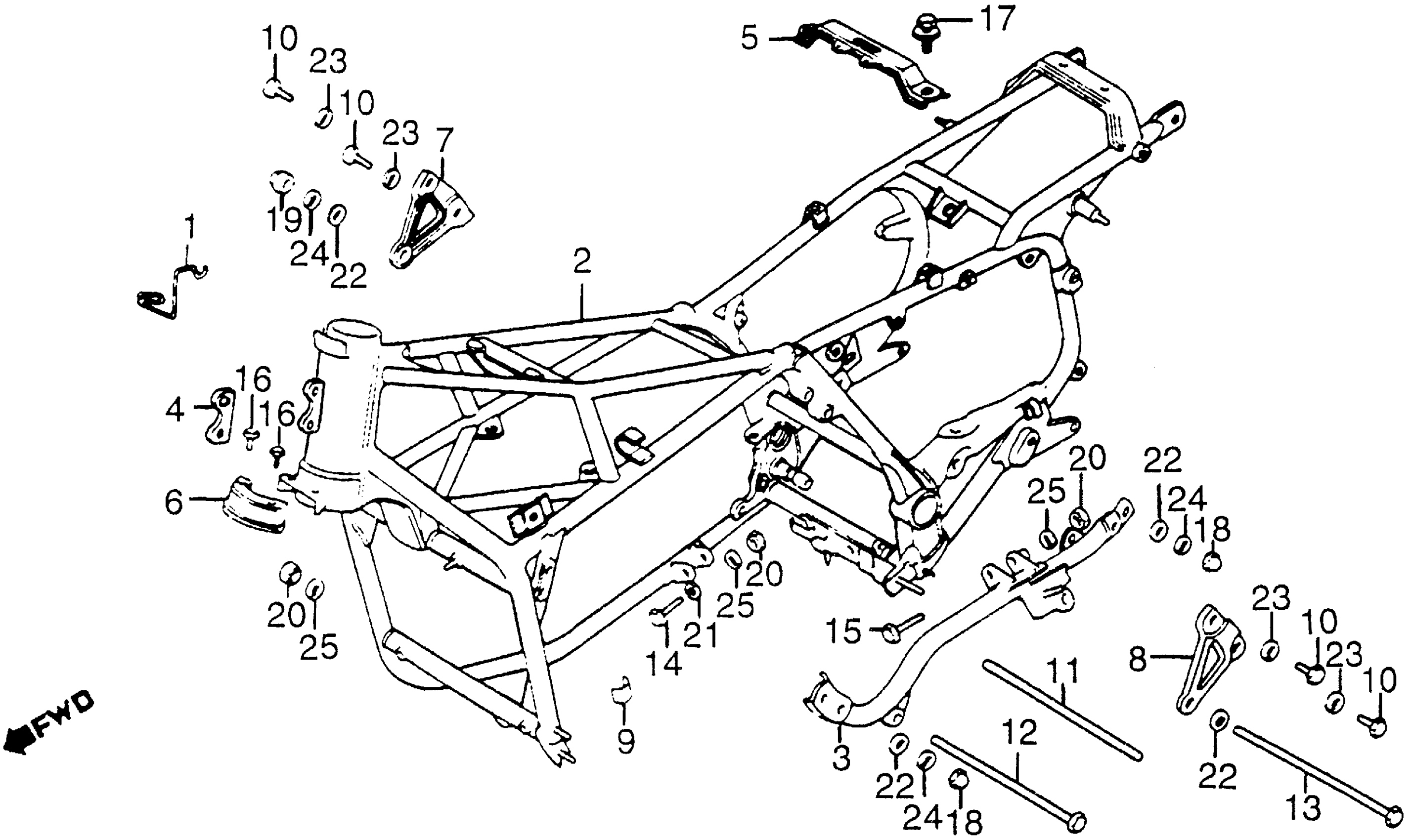

Honda GL1200AAC (84) GOLD WING ASPENCADE, USA, VIN# 1HFSC145-EA010863 TO 1HFSC145-EA033837 FRAME Diagram

#

Description
Price

1

GUIDE, THROTTLE CABLE

17925-MG9-770

Unavailable

2

FRAME *NH1Z* (BLACK-Z) (NOT AVAILABLE) This part replaces 50100-MG9-671ZA.

50100-ML8-000ZA

Unavailable

2

FRAME *NH1Z* (BLACK-Z) (NOT AVAILABLE) This part replaces 50100-MG9-680.

50100-ML8-000ZA

Unavailable

2

FRAME *NH1Z* (BLACK-Z) (NOT AVAILABLE)

50100-ML8-000ZA

Unavailable

3

SUB-FRAME This part replaces 50150-MG9-000ZA.

50150-MG9-951

$713.11

3

SUB-FRAME This part replaces 50150-MG9-680.

50150-MG9-951

$713.11

3

SUB-FRAME This part replaces 50150-MG9-950.

50150-MG9-951

$713.11

3

SUB-FRAME

50150-MG9-951

$713.11

5

PLATE, SEAT CROSS (NOT AVAILABLE)

50250-MG9-000

Unavailable

6

COVER, HANDLE STOPPER (NOT AVAILABLE)

50341-422-010

Unavailable

7

BRACKET, R. ENGINE HANGER

50351-MG9-640

Unavailable

8

BRACKET, L. ENGINE HANGER (NOT AVAILABLE)

50352-MG9-000

Unavailable

10

BOLT,HEX(8X20) This part replaces 90101-371-980.

92101-08020-0B

$1.66

10

BOLT,HEX(8X20) This part replaces 90101-605-000.

92101-08020-0B

$1.66

10

BOLT,HEX(8X20) This part replaces 92000-08020-0B.

92101-08020-0B

$1.66

10

BOLT,HEX(8X20) This part replaces 92000-08020-02.

92101-08020-0B

$1.66

10

BOLT,HEX(8X20) This part replaces 92100-08020-0B.

92101-08020-0B

$1.66

12

BOLT, FR. ENGINE HANGER

90152-463-770

Unavailable

13

BOLT, ENGINE HANGER (UPPER)

90153-371-000

Unavailable

14

BOLT, HEX. (12X65) (NOT AVAILABLE)

92200-12065-0A

Unavailable

15

BOLT, HEX. (12X80) (NOT AVAILABLE)

92200-12080-0A

Unavailable

16

BOLT, HEX. (4X6) (NOT AVAILABLE)

93000-04006-0G

Unavailable

17

BOLT-WASHER (8X12) (NOT AVAILABLE)

93482-08012-08

Unavailable

18

NUT, CAP (10MM)

94021-10200-0S

Unavailable

19

NUT, CAP (10MM)

94021-10220-0S

$2.00

20

NUT, HEX. (12MM)

94030-12200

$1.66

21

WASHER, PLAIN (12MM)

94101-12000

$1.49

22

WASHER, PLAIN (10MM)

94102-10000

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49

24

WASHER, SPRING (10MM)

94111-10000

$1.49

25

WASHER, SPRING (12MM)

94111-12000

$1.49
