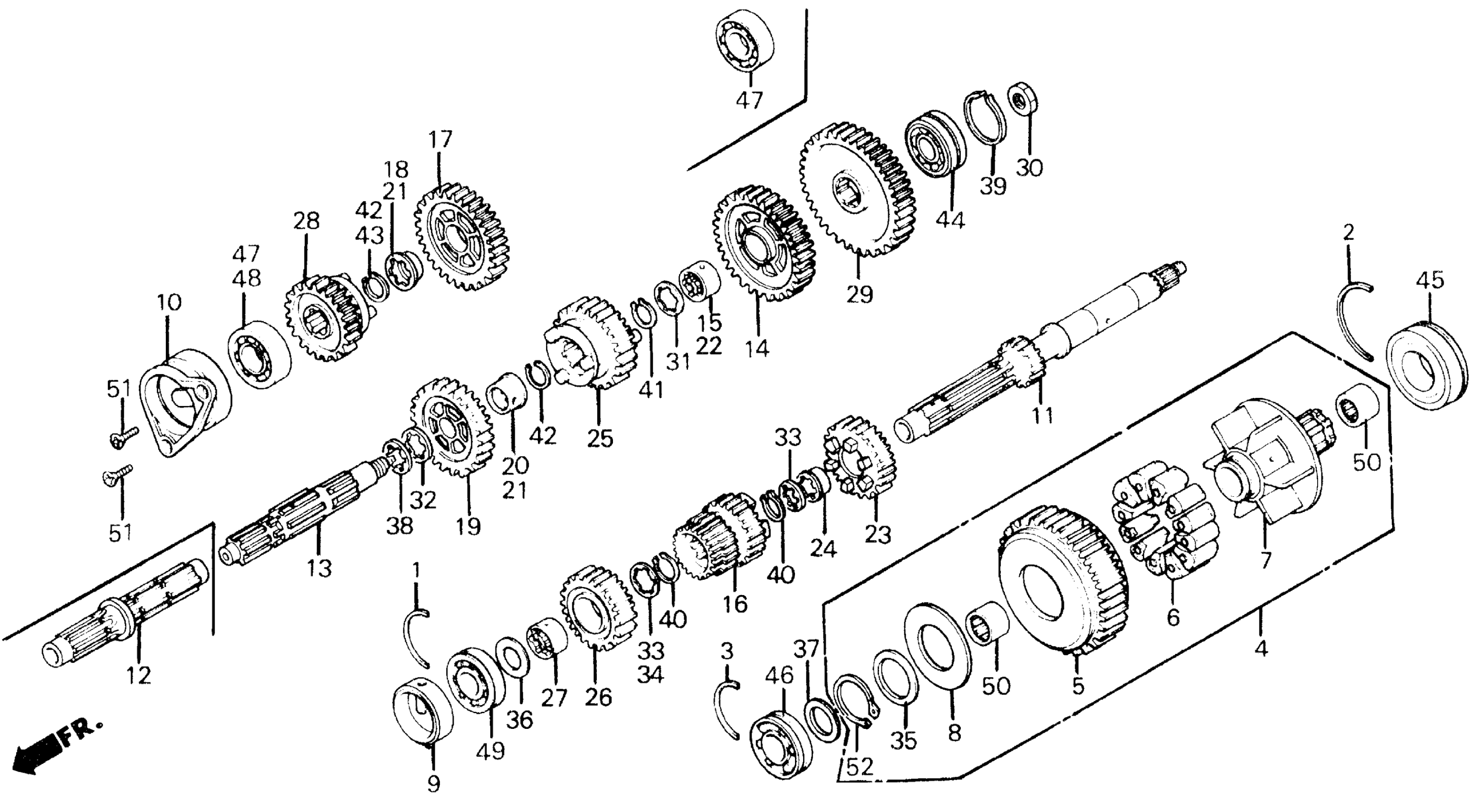

Honda GL1200AA (87) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-HA300101 TO 1HFSC142-HA309605 TRANSMISSION Diagram

#

Description
Price

1

RING A, BALL BEARING SETTING

13495-MG9-000

Unavailable

2

RING B, BALL BEARING SETTING

13496-MG9-000

Unavailable

3

RING, BALL BEARING C SETTING

13497-MG9-000

Unavailable

4

SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)

23110-MG9-000

Unavailable

5

SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)

23111-MG9-000

Unavailable

6

DAMPER, PRIMARY

23114-MG9-000

Unavailable

7

HUB, PRIMARY SPROCKET (NOT AVAILABLE)

23121-MG9-000

Unavailable

8

SPRING, PRIMARY DAMPER

23125-MG9-000

Unavailable

9

PASSAGE, MAINSHAFT OIL (NOT AVAILABLE)

23141-MG9-000

Unavailable

10

HOLDER C, BEARING (NOT AVAILABLE)

23151-431-020

Unavailable

11

MAINSHAFT

23211-MG9-000

Unavailable

13

COUNTERSHAFT (14T)

23221-ML8-600

Unavailable

14

GEAR, COUNTERSHAFT LOW (36T)

23421-ML8-600

Unavailable

16

GEAR, MAINSHAFT SECOND & THIRD (24T,28T) (NOT AVAILABLE)

23431-ML8-020

Unavailable

17

GEAR, COUNTERSHAFT SECOND (40T) (NOT AVAILABLE)

23441-ML8-010

Unavailable

18

COLLAR, SPLINE (28X16)

23442-ML8-600

Unavailable

19

GEAR, COUNTERSHAFT THIRD (35T)

23451-ML8-020

Unavailable

20

COLLAR (28X16)

23452-ML8-600

Unavailable

22

BUSH (31) (NOT AVAILABLE)

23455-463-000

Unavailable

23

GEAR, MAINSHAFT FOURTH (32T)

23461-ML8-600

Unavailable

24

BUSH (28MM)

23462-ML8-600

Unavailable

25

GEAR, COUNTERSHAFT FOURTH (32T) (NOT AVAILABLE)

23471-ML8-600

Unavailable

26

GEAR, MAINSHAFT FIFTH (35T) (NOT AVAILABLE)

23481-MG9-682

Unavailable

27

COLLAR, SPLINE (25) (NOT AVAILABLE)

23485-463-000

Unavailable

28

GEAR, COUNTERSHAFT FIFTH (28T) (NOT AVAILABLE)

23491-ML8-020

Unavailable

29

GEAR, FINAL DRIVE (41T) This part replaces 23501-ML8-600.

23501-ML8-601

Unavailable

29

GEAR, FINAL DRIVE (41T)

23501-ML8-601

Unavailable

30

NUT, HEX. (16MM) This part replaces 90202-ML8-600.

90202-ML8-601

Unavailable

30

NUT, HEX. (16MM)

90202-ML8-601

Unavailable

31

WASHER, THRUST (28MM)

90458-729-920

$5.34

32

WASHER, THRUST (28MM)

90451-461-000

Unavailable

34

WASHER, THRUST (25X34)

90452-371-000

$4.82

35

WASHER, THRUST (45)

90453-MG9-000

Unavailable

36

WASHER, THRUST (20MM)

90458-292-000

$3.54

37

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90458-506-810

Unavailable

38

WASHER, LOCK (28MM) | Use up to Engine SN 2718558 This part replaces 90464-MB4-000.

90464-MB4-010

Unavailable

38

WASHER, LOCK (28MM)

90464-MB4-010

Unavailable

39

RING, SETTING (52MM)

90601-ML8-600

Unavailable

40

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

43

CIRCLIP, OUTER (28MM)

90602-463-000

$3.64

44

BEARING, BALL (5304)

91001-ML8-601

Unavailable

45

BEARING, RADIAL BALL (6008U) (NOT AVAILABLE)

91001-463-008

Unavailable

46

BEARING, SPECIAL BALL (62/28) This part replaces 91002-MG9-005.

91002-MG9-008

Unavailable

46

BEARING, SPECIAL BALL (62/28)

91002-MG9-008

Unavailable

48

BEARING, RADIAL BALL (20X52X15) (TOYO) This part replaces 91002-371-004.

91003-MG8-003

$40.08

48

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$40.08

49

BEARING, BALL (6304CS) (TOYO)

91004-371-008

Unavailable

50

BEARING, NEEDLE (25X32X20)

91010-300-008

Unavailable

51

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

51

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

52

CIRCLIP (OUTER) (45MM)

94510-45000

$2.05
