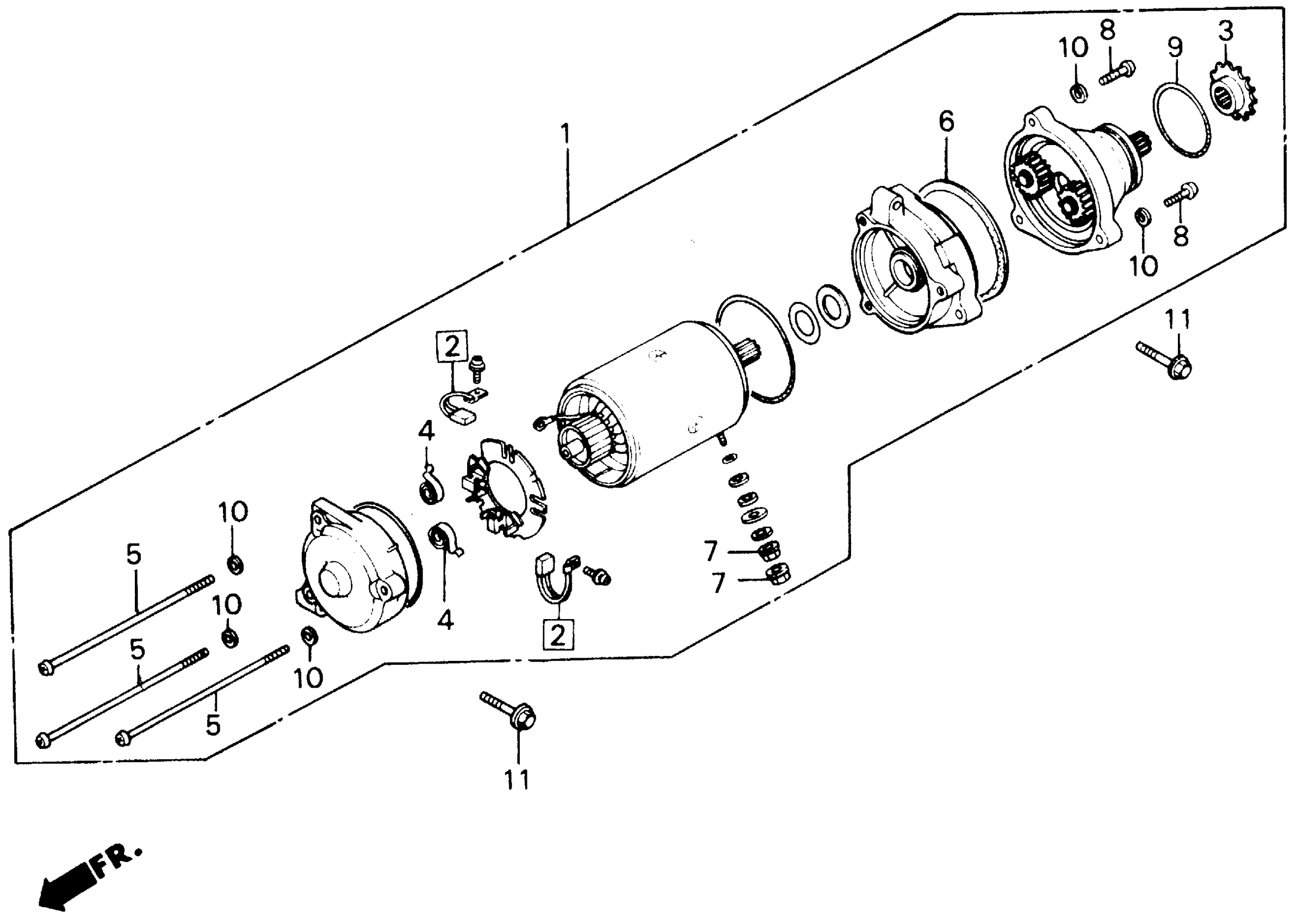

Honda GL1200AA (87) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-HA300101 TO 1HFSC142-HA309605 STARTER MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY. This part replaces 31200-MG9-681.

31200-MG9-406

Unavailable

2

BRUSH, CARBON

31201-MG9-004

Unavailable

3

SPROCKET (NOT AVAILABLE)

31202-MG9-681

Unavailable

4

SPRING, CARBON BRUSH

31204-292-158

$3.57

5

SCREW, PAN (5X115) (NOT AVAILABLE)

31205-MB0-000

Unavailable

6

RING (NOT AVAILABLE)

31208-MG9-681

Unavailable

7

NUT-WASHER (6MM)

90071-MB0-000

$1.88

8

BOLT (5X20)

91001-MG9-004

Unavailable

9

O-RING

91309-MA6-000

$3.69

10

WASHER, SPRING (5MM)

94111-05000

$1.03

11

BOLT, FLANGE (6X32) This part replaces 96000-06032-02.

96001-06032-02

$1.17

11

BOLT, FLANGE (6X32)

96001-06032-02

$1.17
