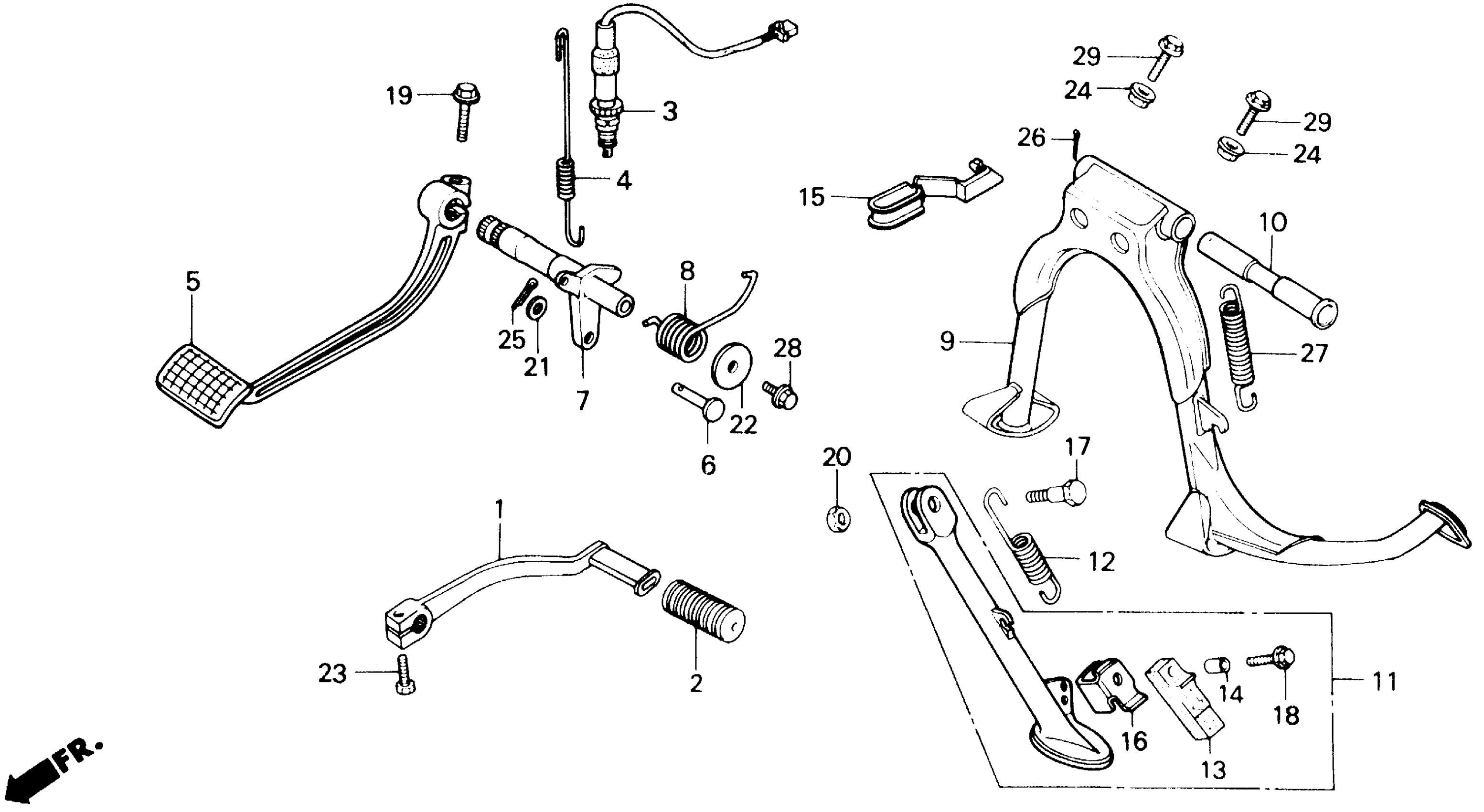

Honda GL1200AA (87) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-HA300101 TO 1HFSC142-HA309605 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-MG9-680

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

SWITCH ASSY., RR. STOP

35350-KA2-405

$16.22

3

SWITCH ASSY., RR. STOP This part replaces 35350-ML8-751.

35350-KA2-405

$16.22

3

SWITCH ASSY., RR. STOP This part replaces 35350-ML8-752.

35350-KA2-405

$16.22

4

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-166-000

Unavailable

5

PEDAL, RR. BRAKE

46500-ML8-700

Unavailable

6

PIN, BRAKE ROD

46503-371-000

Unavailable

7

SPINDLE, RR. BRAKE

46505-MG9-000

Unavailable

8

SPRING, BRAKE PEDAL

46506-MG9-000

Unavailable

9

STAND, MAIN (NOT AVAILABLE)

50500-MG9-680

Unavailable

10

PIPE, MAIN STAND PIVOT

50526-300-000

Unavailable

11

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-MG9-680

Unavailable

12

SPRING, SIDE STAND

50541-MB0-000

$11.75

13

RUBBER, STAND

50548-356-700

$10.50

14

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

15

CLIP, DRAIN TUBE

50550-MG9-680

Unavailable

16

BRACKET, SIDE STAND RUBBER

50574-MB0-000

Unavailable

17

SCREW, SIDE STAND

90108-MG9-680

Unavailable

18

BOLT, SIDE STAND RUBBER

90115-MB0-000

Unavailable

19

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.85

20

NUT, SIDE STAND

90203-MJ4-000

Unavailable

21

WASHER (7X12)

90501-310-000

$1.74

22

WASHER (31X6.3X2.3) (NOT AVAILABLE)

90501-689-000

Unavailable

23

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

23

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

24

NUT, FLANGE (8MM)

94050-08080

$1.49

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

25

PIN, COTTER (1.6X25)

94201-16250

$1.49

26

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

26

PIN, SPLIT (2.5X30)

94201-25300

$1.49

27

SPRING G, MAIN STAND

95014-71702

$4.08

28

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

28

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

29

BOLT, FLANGE (8X40) This part replaces 95700-08040-08.

95701-08040-08

$2.28

29

BOLT, FLANGE (8X40)

95701-08040-08

$2.28
