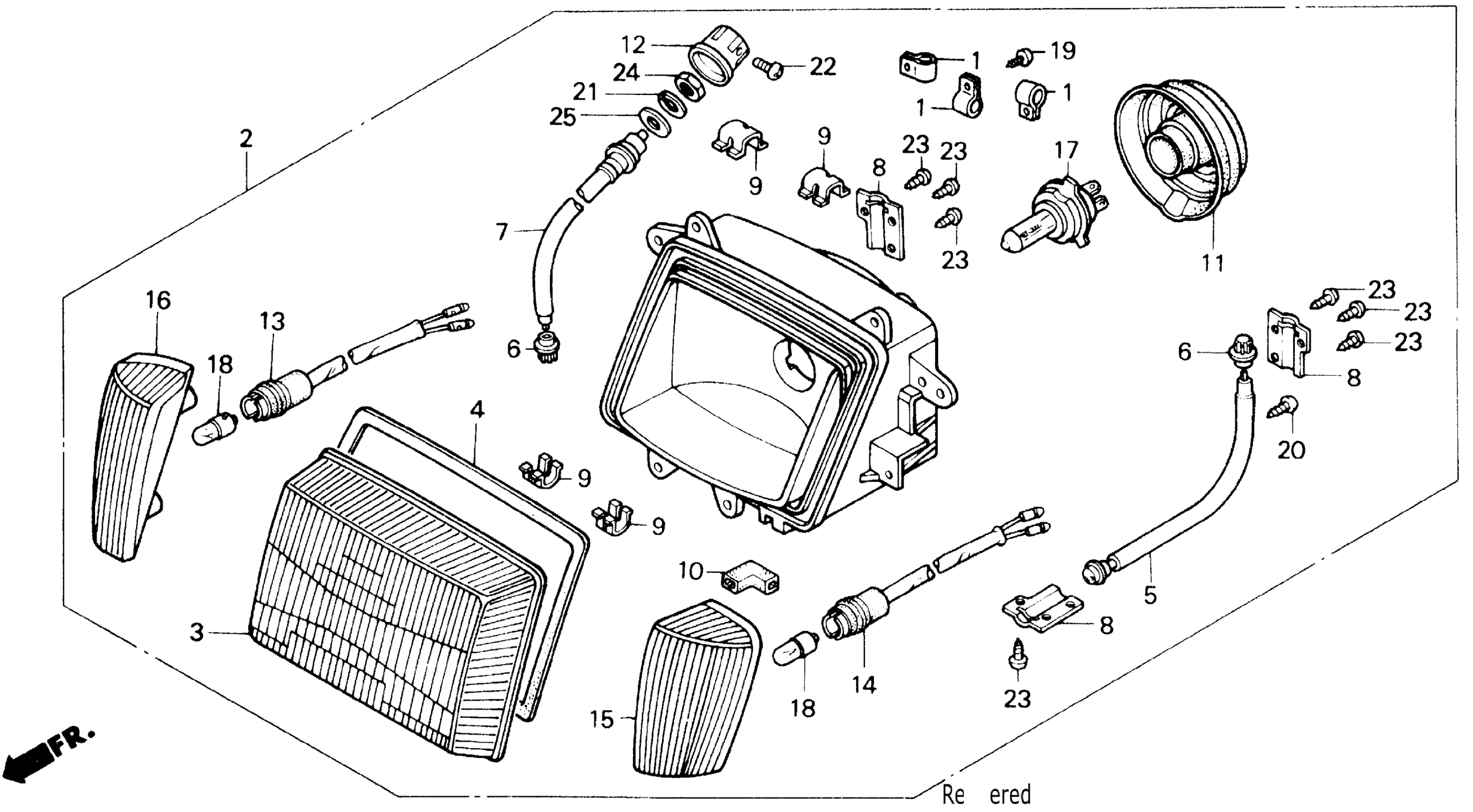

Honda GL1200AA (87) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-HA300101 TO 1HFSC142-HA309605 HEADLIGHT Diagram

#

Description
Price

1

CLAMP, WIRE (NOT AVAILABLE)

32910-MG9-771

Unavailable

2

HEADLIGHT ASSY.

33100-MG9-771

Unavailable

3

LENS, HEADLIGHT

33102-MG9-771

Unavailable

4

GASKET, SEAL (NOT AVAILABLE)

33103-MG9-771

Unavailable

5

CABLE A, BEAM ADJUSTING

33108-MG9-771

Unavailable

6

GEAR, BEAM ADJUSTING

33109-MG9-771

Unavailable

7

CABLE B, BEAM ADJUSTING

33111-MG9-771

Unavailable

8

HOLDER, BEAM ADJUST

33112-MG9-771

Unavailable

9

CLIP, LENS HOLDER

33113-MC7-611

Unavailable

10

COVER

33115-MG9-771

Unavailable

11

COVER, HEADLIGHT BULB RUBBER

33126-SA5-951

Unavailable

12

KNOB, BEAM ADJUSTING (NOT AVAILABLE)

33156-MG9-771

Unavailable

13

WIRE, R. POSITION LIGHT

33165-MG9-771

Unavailable

14

WIRE, L. POSITION LIGHT

33166-MG9-771

Unavailable

15

LENS, L. POSITION LIGHT (NOT AVAILABLE)

33170-MG9-771

Unavailable

16

LENS, R. POSITION LIGHT (NOT AVAILABLE)

33171-MG9-771

Unavailable

17

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

17

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

18

BULB, POSITION (12V 4W)

34903-388-611

$4.77

19

SCREW, TAPPING (4X10)

90147-MG9-771

Unavailable

20

SCREW, TAPPING (4X16)

90148-MG9-771

Unavailable

21

WASHER, SPECIAL

90150-MG9-771

Unavailable

22

SCREW, PAN (3X10)

93500-03010-0G

Unavailable

23

SCREW, TAPPING (4X10)

93901-34220

$1.49

24

NUT, HEX. (12MM)

94002-12080-0S

$1.66

25

WASHER, PLAIN (12MM)

94101-12700

$3.81
