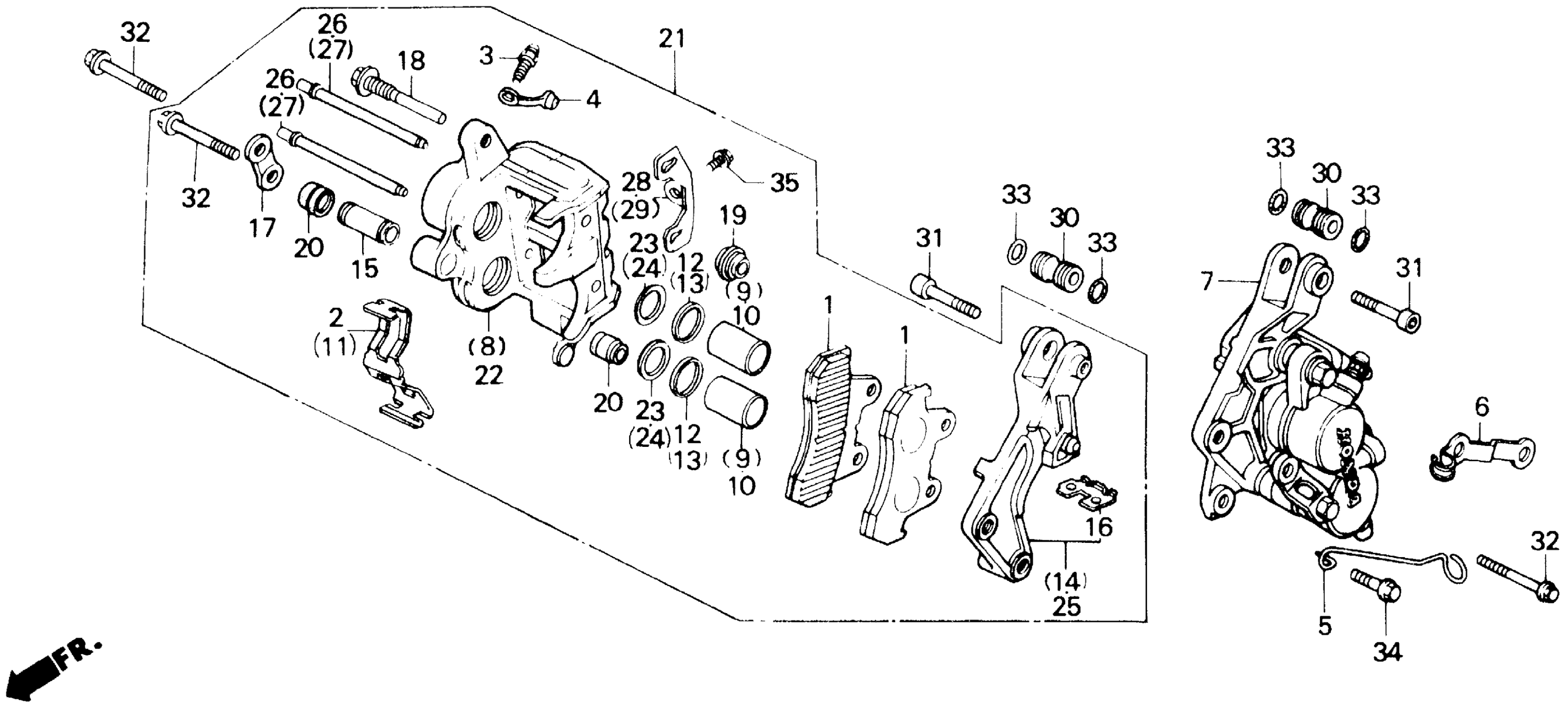

Honda GL1200AA (87) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-HA300101 TO 1HFSC142-HA309605 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

BRAKE PAD KIT

431A0-MB4-306

$43.83

1

PAD, RR. (ASK) This part replaces 43105-MB4-007.

43105-MB4-017

$24.10

1

PAD, RR. (ASK)

43105-MB4-017

$24.10

2

SPRING, PAD

45108-MA2-006

Unavailable

3

SCREW, BLEEDER

43352-MG9-006

$5.44

4

CAP, BLEEDER

43353-461-771

$5.05

4

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$5.05

4

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$5.05

6

CLAMP, SPEEDOMETER CABLE

44832-ML8-670

Unavailable

7

CALIPER ASSY., L. FR. This part replaces 45100-MG9-871.

45100-MG9-874

Unavailable

7

CALIPER ASSY., L. FR.

45100-MG9-874

Unavailable

7

CALIPER ASSY., L. FR. This part replaces 45100-MG9-872.

45100-MG9-874

Unavailable

8

CALIPER, L. This part replaces 45101-MG9-772.

45101-MG9-773

Unavailable

9

PISTON (25.4MM)

45107-MB9-781

$39.51

10

PISTON

43107-MA7-006

$45.55

11

SPRING, PAD

45108-MA2-006

Unavailable

12

DUST SEAL

45109-GE2-006

$5.31

13

DUST SEAL

45109-MA7-006

$5.31

14

BRACKET, L. FR. (NOT AVAILABLE)

45110-MG9-871

Unavailable

15

SLEEVE

45111-MA3-006

$13.38

16

RETAINER, FR. BRACKET (NOT AVAILABLE)

45112-MB9-871

Unavailable

17

BRIDGE, CALIPER BRACKET (NOT AVAILABLE)

45113-MB7-610

Unavailable

18

BOLT, PIN

45131-MA3-006

$17.59

19

BOOT B

45133-MA3-006

$5.46

20

BOOT, PIN

45133-166-016

$3.85

21

CALIPER, R. FR. This part replaces 45200-MG9-872.

45200-MG9-874

Unavailable

22

CALIPER, R. FR. This part replaces 45201-MG9-872.

45201-MG9-873

Unavailable

23

SEAL, PISTON

45209-GE2-006

$6.91

24

SEAL, PISTON

45209-MA7-006

$6.61

25

BRACKET, R. FR. (NOT AVAILABLE)

45210-MG9-871

Unavailable

26

PIN, HANGER

45215-MA2-006

Unavailable

27

PIN, HANGER

45215-MG9-771

Unavailable

28

PLATE

45217-MA3-006

$4.45

29

PLATE (NOT AVAILABLE)

45217-MG9-771

Unavailable

30

SLEEVE, FR. CALIPER BRACKET

51536-MB2-000

Unavailable

31

BOLT, SOCKET (10X40)

90131-MB2-000

Unavailable

32

BOLT, FLANGE (8X55)

90180-MA3-660

$4.72

33

O-RING (13.8X2.4) (NOK) This part replaces 91308-MC7-003.

91311-PH7-003

$2.28

33

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

35

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

35

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
