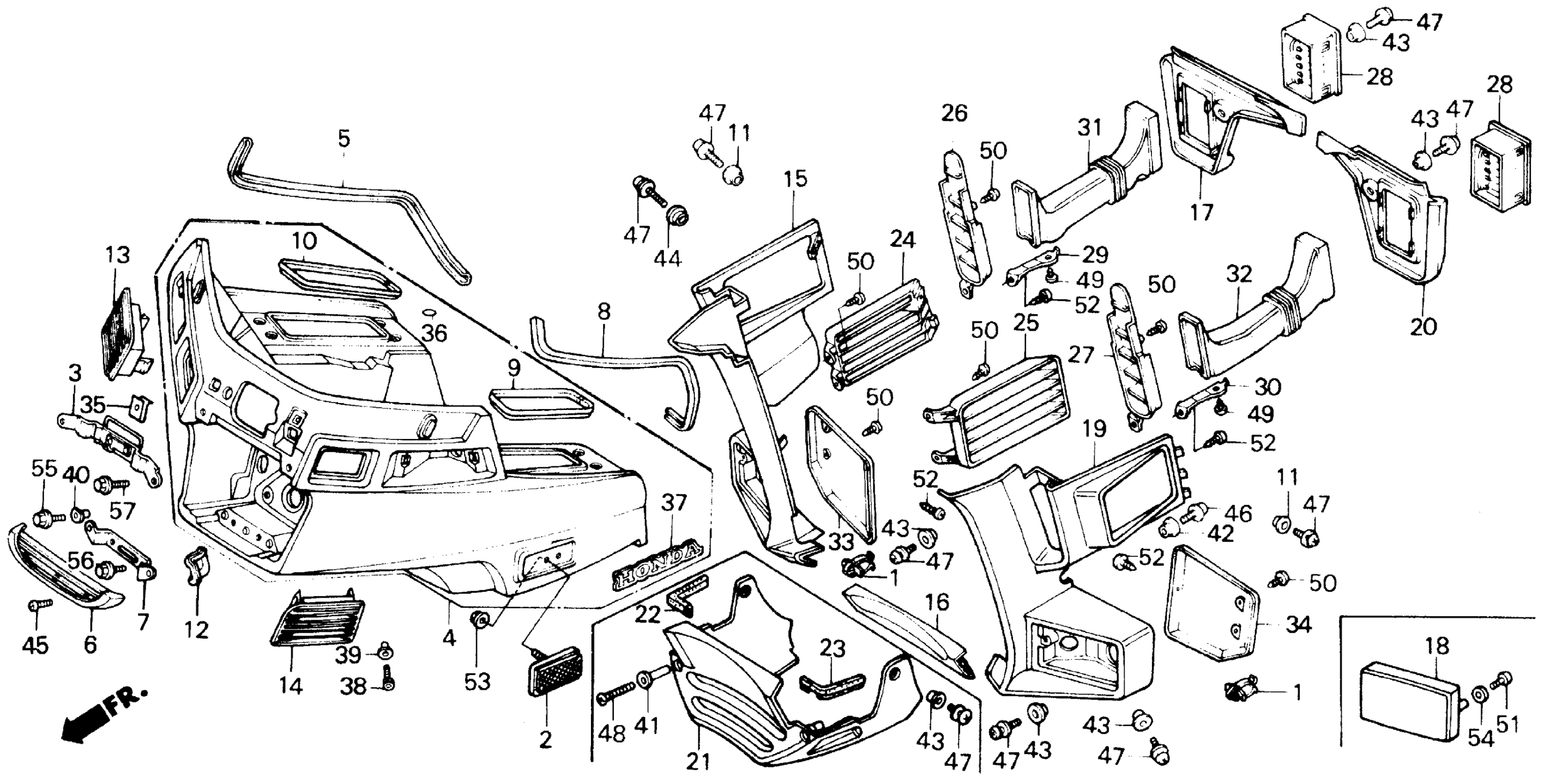

Honda GL1200AA (87) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-HA300101 TO 1HFSC142-HA309605 FAIRING Diagram

REFLECTOR, FR. REFLEX This part replaces 33741-ME9-672.

33741-ME9-673

$17.74

REFLECTOR, FR. REFLEX

33741-ME9-673

$17.74

STAY, GARNISH (B)

64112-MG9-950

Unavailable

FAIRING *R114CU* (WL) (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

64200-ML8-700ZA

Unavailable

FAIRING *NH1Z* (WL) (BLACK-Z) (NOT AVAILABLE)

64200-ML8-700ZB

Unavailable

FAIRING *NH104MU* (WL) (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

64200-ML8-700ZC

Unavailable

MOLDING, R. COWL TRIM *R114CU* (CANDY WINE BERRY RED-U)

64204-MG9-770ZA

Unavailable

MOLDING, R. COWL TRIM *NH1Z* (BLACK-Z) (NOT AVAILABLE)

64204-MG9-770ZM

Unavailable

MOLDING, R. COWL TRIM *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

64204-MG9-770ZY

Unavailable

GRILLE, FR. *R114CU* (CANDY WINE BERRY RED-U)

64205-MG9-770ZA

Unavailable

GRILLE, FR. *NH1Z* (BLACK-Z) (NOT AVAILABLE)

64205-MG9-770ZM

Unavailable

GRILLE, FR. *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

64205-MG9-770ZY

Unavailable

STAY, HEADLIGHT GRILLE (NOT AVAILABLE)

64206-MG9-770

Unavailable

MOLDING, L. COWL TRIM *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

64214-MG9-770ZA

Unavailable

MOLDING, L. COWL TRIM *NH1Z* (BLACK-Z) (NOT AVAILABLE)

64214-MG9-770ZM

Unavailable

MOLDING, L. COWL TRIM *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

64214-MG9-770ZY

Unavailable

RUBBER, L. POCKET SEAL (NOT AVAILABLE)

64249-MG9-770

Unavailable

RUBBER, R. POCKET SEAL

64250-MG9-770

Unavailable

COLLAR, LEG SHIELD SETTING (NOT AVAILABLE)

64263-MA2-000

Unavailable

GROMMET, FAIRING

64267-MG9-770

Unavailable

LOUVER, R. FR.

64277-MG9-680

Unavailable

LOUVER, L. FR. (NOT AVAILABLE)

64278-MG9-680

$19.18

COWL, R. (LOWER) *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

64280-MG9-950ZC

Unavailable

COWL, R. (LOWER) *NH1Z* (BLACK-Z) (NOT AVAILABLE)

64280-MG9-950ZD

Unavailable

COWL, R. (LOWER) *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

64280-MG9-950ZE

Unavailable

COVER, R. COWL (LOWER) (INNER) *R114CU* (TYPE1) (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

64288-MG9-950ZC

Unavailable

COVER, R. COWL (LOWER) (INNER) *NH1Z* (TYPE2) (BLACK-Z) (NOT AVAILABLE)

64288-MG9-950ZD

Unavailable

COVER, R. COWL (LOWER) (INNER) *NH104MU* (TYPE2) (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

64288-MG9-950ZE

Unavailable

COVER, CORNERING LIGHT *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

64289-ML8-700ZA

Unavailable

COVER, CORNERING LIGHT *NH1Z* (BLACK-Z) (NOT AVAILABLE)

64289-ML8-700ZB

Unavailable

COVER, CORNERING LIGHT *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

64289-ML8-700ZC

Unavailable

COWL, L. (LOWER) *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

64290-MG9-950ZC

Unavailable

COWL, L. (LOWER) *NH1Z* (BLACK-Z) (NOT AVAILABLE)

64290-MG9-950ZD

Unavailable

COWL, L. (LOWER) *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

64290-MG9-950ZE

Unavailable

COVER, L. COWL (LOWER) (INNER) *R114CU* (TYPE1) (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

64298-MG9-950ZC

Unavailable

COVER, L. COWL (LOWER) (INNER) *NH1Z* (TYPE2) (BLACK-Z) (NOT AVAILABLE)

64298-MG9-950ZD

Unavailable

COVER, L. COWL (LOWER) (INNER) *NH104MU* (TYPE2) (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

64298-MG9-950ZE

Unavailable

COWL (LOWER) *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

64305-ML8-700ZA

Unavailable

COWL (LOWER) *NH1Z* (BLACK-Z) (NOT AVAILABLE)

64305-ML8-700ZB

Unavailable

COWL (LOWER) *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

64305-ML8-700ZC

Unavailable

RUBBER, R. COWL (LOWER) (NOT AVAILABLE)

64306-ML8-700

Unavailable

RUBBER, L. COWL (LOWER) (NOT AVAILABLE)

64307-ML8-700

Unavailable

LOUVER, R. COWL SIDE (LOWER)

64312-MG9-950

Unavailable

LOUVER, L. COWL SIDE (LOWER)

64313-MG9-950

Unavailable

INLET, R. COWL AIR (LOWER) (NOT AVAILABLE)

64314-MG9-950

Unavailable

INLET, L. COWL AIR (LOWER)

64315-MG9-950

Unavailable

OUTLET ASSY., FRESH AIR *NH81L* (TYPE2) (BLUISH GRAY) (NOT AVAILABLE)

64320-MG9-950ZB

Unavailable

OUTLET ASSY., FRESH AIR *R58L* (TYPE1) (ROMANY RED)

64320-MG9-950ZA

Unavailable

STAY, R. DUCT

64326-MG9-950

Unavailable

STAY, L. DUCT

64327-MG9-950

Unavailable

DUCT, R. COWL (LOWER) (NOT AVAILABLE)

64328-MG9-950

Unavailable

DUCT, L. COWL (LOWER) (NOT AVAILABLE)

64329-MG9-950

Unavailable

NUT, CLIP (6MM)

64529-MC7-000

Unavailable

SEAL, DOOR HOLE (30MM) (CIRCLE)(BLACK)

75826-605-300

$3.35

SEAL, DOOR HOLE (30MM) (BLACK)

91619-SE0-000

$3.35

EMBLEM, R. FAIRING SIDE This part replaces 87108-MB0-820.

87108-MB9-770

Unavailable

EMBLEM, R. FAIRING SIDE

87108-MB9-770

Unavailable

BOLT, SOCKET (8X40)

90117-MC7-000

Unavailable

COLLAR, COWL SETTING (NOT AVAILABLE)

90120-MG9-770

Unavailable

COLLAR, COWL SETTING (NOT AVAILABLE)

90120-463-770

Unavailable

COLLAR (7X26.5) (NOT AVAILABLE)

90501-ML8-700

Unavailable

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

WASHER (6MM) This part replaces 33715-GB0-930.

90512-440-980

$2.92

WASHER (6MM)

90512-440-980

$2.92

WASHER (6MM) This part replaces 90523-MG9-950.

90512-440-980

$2.92

SCREW, PAN (4X10)

93500-04010-0G

$1.49

SCREW, PAN (6X16)

93500-06016-0G

$1.49

SCREW, PAN (6X35)

93500-06035-0G

Unavailable

SCREW, TAPPING (4X8)

93903-24110

$1.49

SCREW, TAPPING (4X10)

93903-24220

$1.49

SCREW, TAPPING (4X12)

93903-24320

$1.49

SCREW, TAPPING (4X16)

93903-24480

$1.49

NUT, FLANGE (5MM)

94050-05000

$1.49

WASHER, PLAIN (4MM)

94103-04800

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

BOLT, FLANGE (6X20) This part replaces 95900-06020-08.

95701-06020-08

$1.49

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

BOLT, FLANGE (6X22) This part replaces 95900-06022-08.

95701-06022-08

$1.72

BOLT, FLANGE (6X28) This part replaces 95800-06028-08.

95801-06028-08

$1.73

BOLT, FLANGE (6X28)

95801-06028-08

$1.73

BOLT, FLANGE (6X28) This part replaces 95900-06028-08.

95801-06028-08

$1.73
