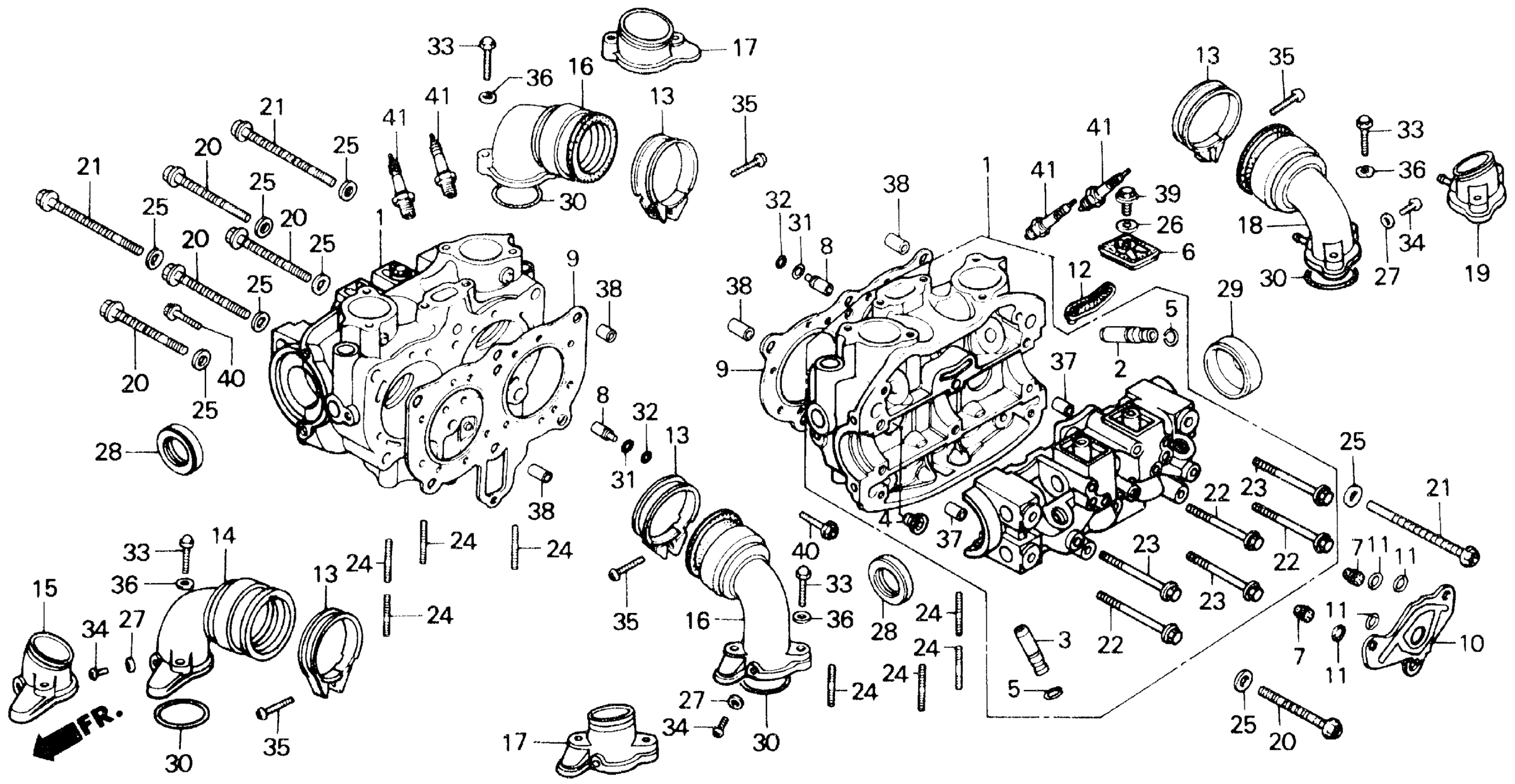

Honda GL1200AA (87) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-HA300101 TO 1HFSC142-HA309605 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12200-ML8-010

Unavailable

2

GUIDE, VALVE

12204-371-305

Unavailable

3

GUIDE, VALVE

12204-371-305

Unavailable

3

GUIDE, VALVE This part replaces 12205-371-305.

12204-371-305

Unavailable

4

BOLT, SEALING (18MM)

12206-ML8-300

$9.11

4

BOLT, SEALING (18MM) This part replaces 12206-371-305.

12206-ML8-300

$9.11

5

CLIP, VALVE GUIDE

12211-250-310

$4.39

6

PLATE, OIL CHAMBER (NOT AVAILABLE)

12223-MG9-000

Unavailable

7

PLUG, OIL CHAMBER (NOT AVAILABLE)

12224-MG9-000

Unavailable

8

ORIFICE, OIL CONTROL (NOT AVAILABLE)

12238-MG9-000

Unavailable

9

GASKET, CYLINDER HEAD This part replaces 12251-MG9-000.

12251-MG9-306

$76.70

9

GASKET, CYLINDER HEAD

12251-MG9-306

$76.70

9

GSKT (0.75/1.00 OS) | (Optional). This part replaces 12010-ML8-000.

12010-ML8-010

Unavailable

10

PLATE, OIL DISTRIBUTING (NOT AVAILABLE)

12260-MG9-010

Unavailable

11

RING, OIL SEAL

12261-MG9-000

Unavailable

12

PLATE, ORIFICE (NOT AVAILABLE)

12262-MG9-000

Unavailable

13

BAND, INSULATOR This part replaces 16219-MB0-770.

16223-KS5-000

$14.20

13

BAND, INSULATOR

16223-KS5-000

$14.20

14

MANIFOLD A, IN. (NOT AVAILABLE)

17110-MG9-000

Unavailable

16

MANIFOLD B, IN. (NOT AVAILABLE)

17120-MG9-000

Unavailable

18

MANIFOLD C, IN. (NOT AVAILABLE)

17160-MG9-000

Unavailable

20

BOLT, FLANGE (10X90)

90001-371-013

Unavailable

21

BOLT, FLANGE (10X115)

90002-371-013

Unavailable

22

BOLT, FLANGE (8X75) This part replaces 90003-MG9-000.

90017-KCZ-000

$9.48

22

BOLT, FLANGE (8X75)

90017-KCZ-000

$9.48

23

BOLT, FLANGE (8X75)

90011-MG9-000

Unavailable

24

BOLT, STUD (8X43)

90035-371-000

$3.85

25

WASHER (21X11X2.3)

90438-634-000

Unavailable

26

WASHER, SEALING (6MM)

90442-397-000

$2.28

27

WASHER, SEALING (5MM)

90452-323-000

$1.59

28

OIL SEAL (27X43X9)

91209-371-003

$17.60

29

SEAL, CAP (43X9)

91209-463-013

$11.58

30

O-RING (35.5X2.6)

91301-MG9-003

$4.15

30

O-RING (35.5X2.6) This part replaces 91301-MG9-005.

91301-MG9-003

$4.15

31

O-RING (6.5X1.5)

91305-371-003

$2.91

32

O-RING (4.1X1.5)

91308-371-003

$4.83

33

BOLT, FLANGE (6X32) This part replaces 96000-06032-02.

96001-06032-02

$1.49

33

BOLT, FLANGE (6X32)

96001-06032-02

$1.49

34

SCREW, PAN (5X8)

93500-05008-0A

$1.49

35

SCREW, PAN (5X28)

93500-05028-0G

$1.49

37

PIN, DOWEL (10X16)

94301-10160

$2.28

38

PIN, DOWEL (12X20)

94301-12200

$2.29

39

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

39

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

40

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

40

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

41

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

41

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

41

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

41

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

41

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

41

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
