- GL1200AA (87) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-HA300101 TO 1HFSC142-HA309605
CRUISE VALVE

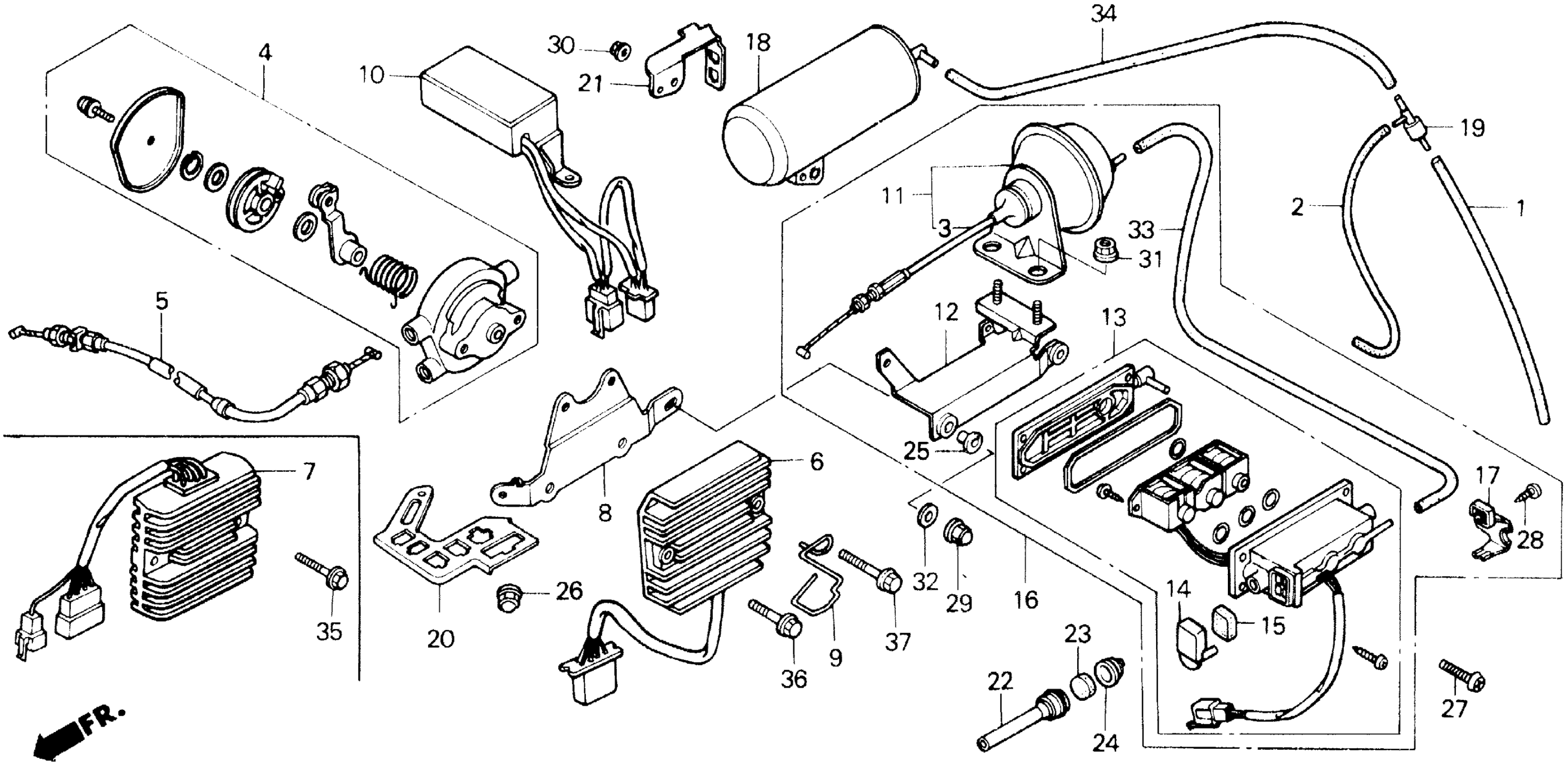

Honda GL1200AA (87) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-HA300101 TO 1HFSC142-HA309605 CRUISE VALVE Diagram
#
Description
Price
1
TUBE (2)
17161-MG9-950
Unavailable
2
TUBE (4) (NOT AVAILABLE)
17162-ML8-700
Unavailable
3
CABLE, ACTUATOR
17880-MG9-951
Unavailable
4
BOX ASSY., JUNCTION (NOT AVAILABLE)
17900-MG9-951
Unavailable
5
CABLE, CARBURETOR THROTTLE (NOT AVAILABLE)
17930-MG9-950
Unavailable
6
RECTIFIER ASSY., REGULATE This part replaces 31600-MG9-000.
31600-MG9-010
Unavailable
6
RECTIFIER ASSY., REGULATE
31600-MG9-010
Unavailable
8
BRACKET, REGULATOR
31605-ML8-700
Unavailable
9
HOLDER, CONNECTOR (8P)
31612-ML8-700
Unavailable
10
FILTER, REGULATE RECTIFIER (NOT AVAILABLE)
31620-ML8-701
Unavailable
11
ACTUATOR ASSY. (NOT AVAILABLE)
36520-MG9-951
Unavailable
12
BRACKET, VALVE & ACTUATOR
36525-MG9-951
Unavailable
13
VALVE ASSY., CRUISE (NOT AVAILABLE)
36530-MG9-952
Unavailable
14
COVER, FILTER (NOT AVAILABLE)
36531-MG9-951
Unavailable
15
FILTER, SUCTION (NOT AVAILABLE)
36532-MG9-951
Unavailable
16
VALVE & ACTUATOR ASSY.
36540-MG9-952
Unavailable
17
PLATE, NOZZLE GUARD (NOT AVAILABLE)
36541-MG9-951
Unavailable
18
TANK, VACUUM (NOT AVAILABLE)
36625-MG9-951
Unavailable
19
VALVE, CHECK This part replaces 36627-PC1-004.
36627-PC1-014
Unavailable
20
HOLDER, CONNECTOR (E)
50201-ML8-700
Unavailable
21
HOLDER B, CONNECTOR
50211-ML8-750
Unavailable
22
TUBE, AIR (A)
52705-MG9-950
Unavailable
23
ELEMENT, PUMP (NOT AVAILABLE)
52706-MG9-950
Unavailable
24
TUBE, AIR (B)
52707-MG9-950
Unavailable
28
SCREW, TAPPING (6X10)
93901-26080
Unavailable
33
TUBE, VACUUM
17165-MG9-951
Unavailable
