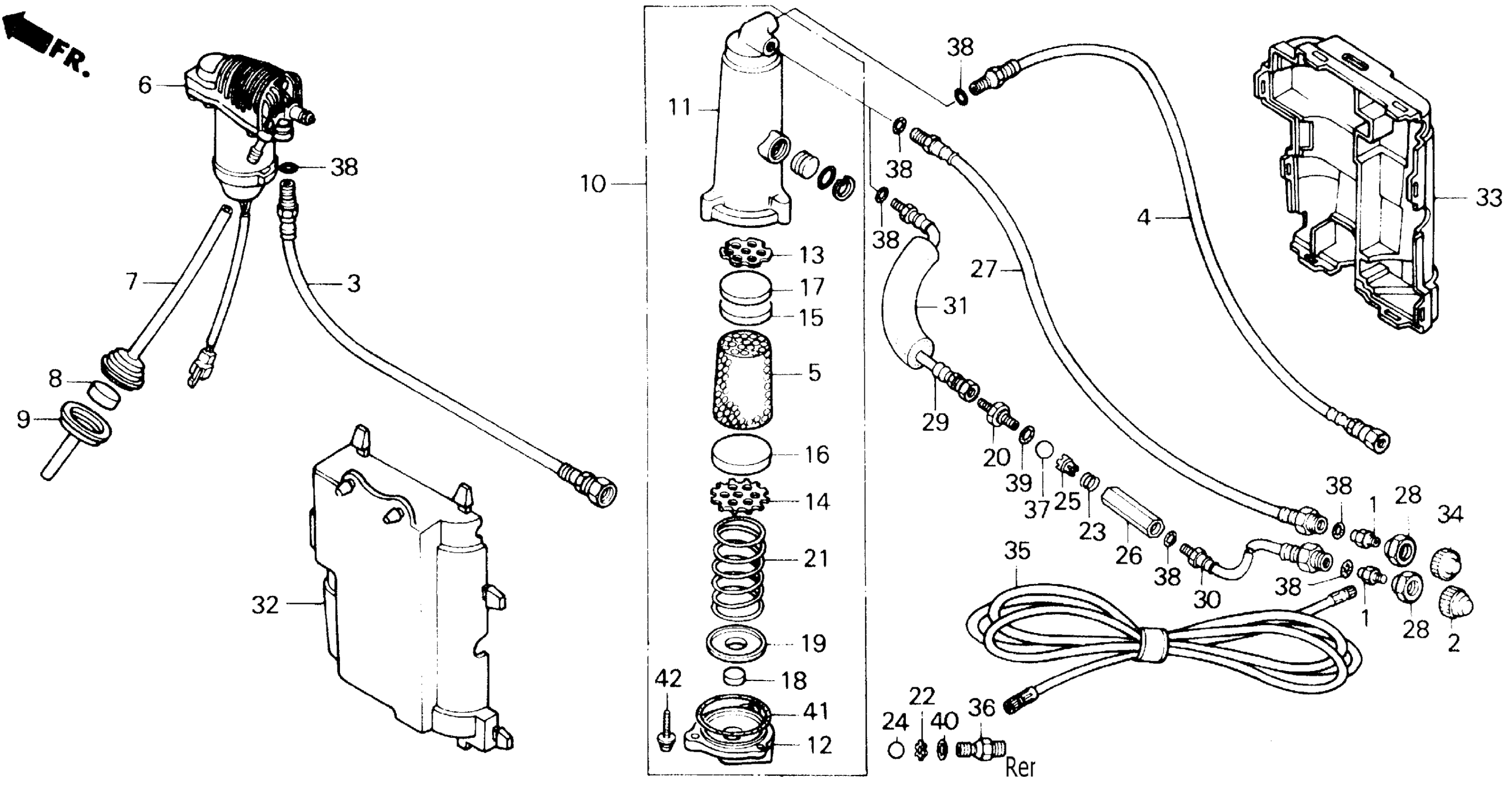

Honda GL1200AA (87) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-HA300101 TO 1HFSC142-HA309605 AIR PUMP Diagram

#

Description
Price

1

VALVE, AIR (SHOWA)

51456-469-013

$33.69

3

HOSE, AIR This part replaces 52645-MG9-871.

52645-MG9-405

Unavailable

4

HOSE E, AIR (NOT AVAILABLE)

52660-MG9-871

Unavailable

5

DESICCANT (NOT AVAILABLE)

527A2-MB9-870

Unavailable

6

PUMP ASSY., AIR (NOT AVAILABLE)

52700-MB9-871

Unavailable

7

TUBE, AIR (A) (NOT AVAILABLE)

52705-MG9-870

Unavailable

8

ELEMENT, PUMP (NOT AVAILABLE)

52706-MB9-870

Unavailable

9

TUBE B, AIR

52707-MB9-870

Unavailable

10

DRIER ASSY.

52710-MG9-871

Unavailable

11

FRAME, DRIER

52711-MB9-951

Unavailable

12

COVER, DRIER

52712-MB9-951

Unavailable

13

RETAINER (A)

52713-MB9-870

Unavailable

14

RETAINER (B) (NOT AVAILABLE)

52714-MB9-870

Unavailable

15

FILTER (A) (NOT AVAILABLE)

52715-MB9-870

Unavailable

16

FILTER (B) (NOT AVAILABLE)

52716-MB9-870

Unavailable

17

FILTER (C) (NOT AVAILABLE)

52717-MB9-870

Unavailable

18

FILTER (D) (NOT AVAILABLE)

52718-MB9-870

Unavailable

19

RETAINER (C) (NOT AVAILABLE)

52719-MB9-870

Unavailable

21

SPRING, RETAINER SETTING (NOT AVAILABLE)

52722-MB9-870

Unavailable

27

HOSE, DRIER

52741-MG9-871

Unavailable

28

NUT, LOCK (14MM)

52742-MG9-870

Unavailable

32

COVER B, PUMP

52756-MG9-870

Unavailable

33

COVER, PUMP (A) (NOT AVAILABLE)

52758-MG9-870

Unavailable

34

CAP, AIR VALVE

52815-MG9-870

Unavailable

35

HOSE, AIR SUPPLY

52817-MG9-871

Unavailable

36

CONNECTOR (B) (NOT AVAILABLE)

53139-MG9-871

Unavailable

38

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

38

O-RING (5.8X1.9)

91305-323-000

$2.92

41

O-RING (49.7X3.5) (NOT AVAILABLE)

91360-MB9-870

Unavailable

42

SCREW-WASHER (4X20)

93893-04020-08

$1.49
